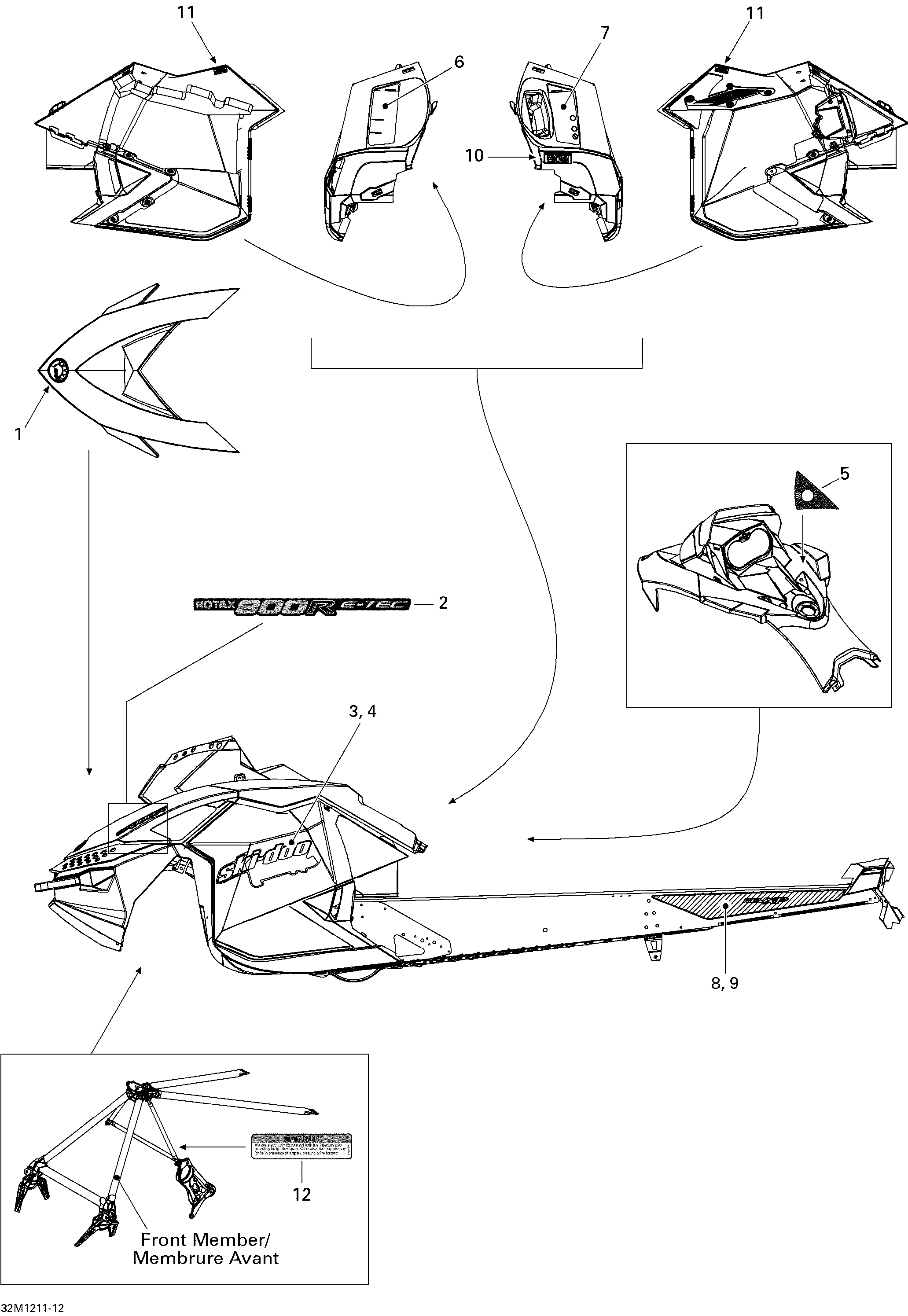

09- Decals для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516004253 Hood Decal, Rotax 800R E-TECHood Decal, Rotax 800R E-TEC
-
3516004426 RH Side DecalRH Side Decal
-
4516004425 LH Side DecalLH Side Decal
-
5516004993 Switch DecalSwitch Decal
-
6516004561 Warning Decal, SecurityWarning Decal, Security
-
7516004888 Warning Decal, SecurityWarning Decal, Security
-
8516004817 RH Frame Decal, REV XP 137''. Freeride 137 ModelRH Frame Decal, REV XP 137''. Freeride 137 Model
-
8516004819 RH Frame Decal, REV XP 146''. Freeride 146 ModelRH Frame Decal, REV XP 146''. Freeride 146 Model
-
8516004428 RH Frame Decal, REV XP 154''. Freeride 154 ModelRH Frame Decal, REV XP 154''. Freeride 154 Model
-
9516004816 LH Frame Decal, REV XP 137''. Freeride 137 ModelLH Frame Decal, REV XP 137''. Freeride 137 Model
-
9516004818 LH Frame Decal, REV XP 146''. Freeride 146 ModelLH Frame Decal, REV XP 146''. Freeride 146 Model
-
9516004427 LH Frame Decal, REV XP 154''. Freeride 154 ModelLH Frame Decal, REV XP 154''. Freeride 154 Model
-
10516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
11516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
12516003940 Warning Decal, InjectorsWarning Decal, Injectors
