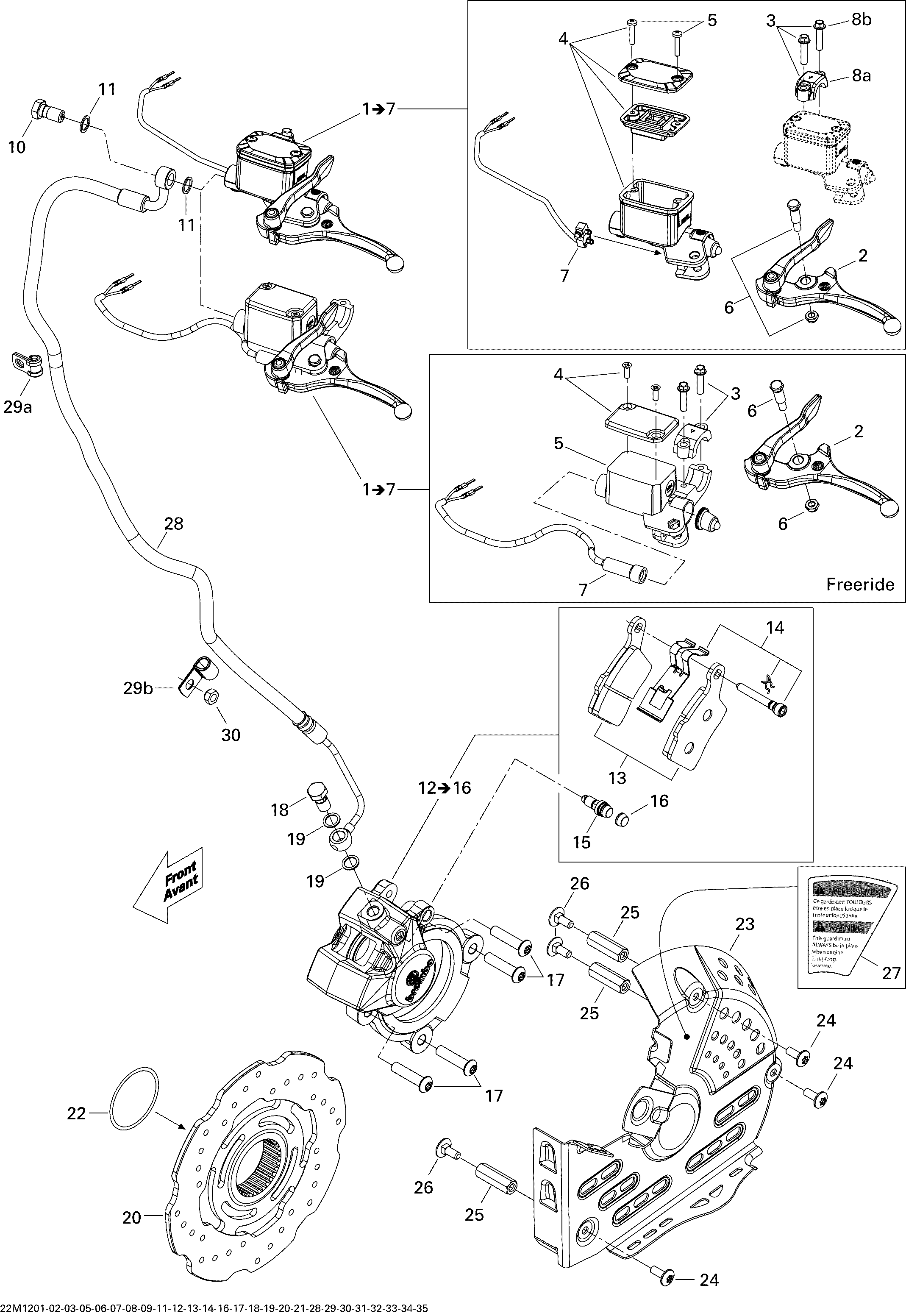

06- Hydraulic Brakes для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1507032518 Master Cylinder Ass'y. Includes 1 to 7Master Cylinder Ass'y. Includes 1 to 7
-
2507032476 LeverLever
-
3507032477 Clamp And Screw KitClamp And Screw Kit
-
4507032478 CapCap
-
5415129356 Screw M4 X 20Screw M4 X 20
-
6415030000 Pin Ass'yPin Ass'y
-
7507032479 MicroswitchMicroswitch
-
10414920500 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032498 Brake Caliper Ass'y. Includes 12 to 16Brake Caliper Ass'y. Includes 12 to 16
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
15507032475 BleederBleeder
-
16414989700 BootBoot
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18414920500 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032487 DiskDisk
-
22293300134 O-RingO-Ring
-
23507032446 Disk Protector, Aluminum. Grand Touring LEDisk Protector, Aluminum. Grand Touring LE
-
23507032492 Disk Protector, Black. Grand Touring SEDisk Protector, Black. Grand Touring SE
-
24250000365 Torx Screw M6 X 16. Grand Touring LETorx Screw M6 X 16. Grand Touring LE
-
24250000223 Torx Screw M6 X 16. Grand Touring SETorx Screw M6 X 16. Grand Touring SE
-
25507032497 Threaded TubeThreaded Tube
-
26207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
27516004552 Warning Decal. Grand Touring SEWarning Decal. Grand Touring SE
-
28507032527 Hose. Grand Touring LEHose. Grand Touring LE
-
28507032528 Hose. Grand Touring SEHose. Grand Touring SE
-
30232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29a705600459 ClampClamp
-
29b518321570 Open ClampOpen Clamp
-
8a219800081 ClampClamp
-
8b250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
