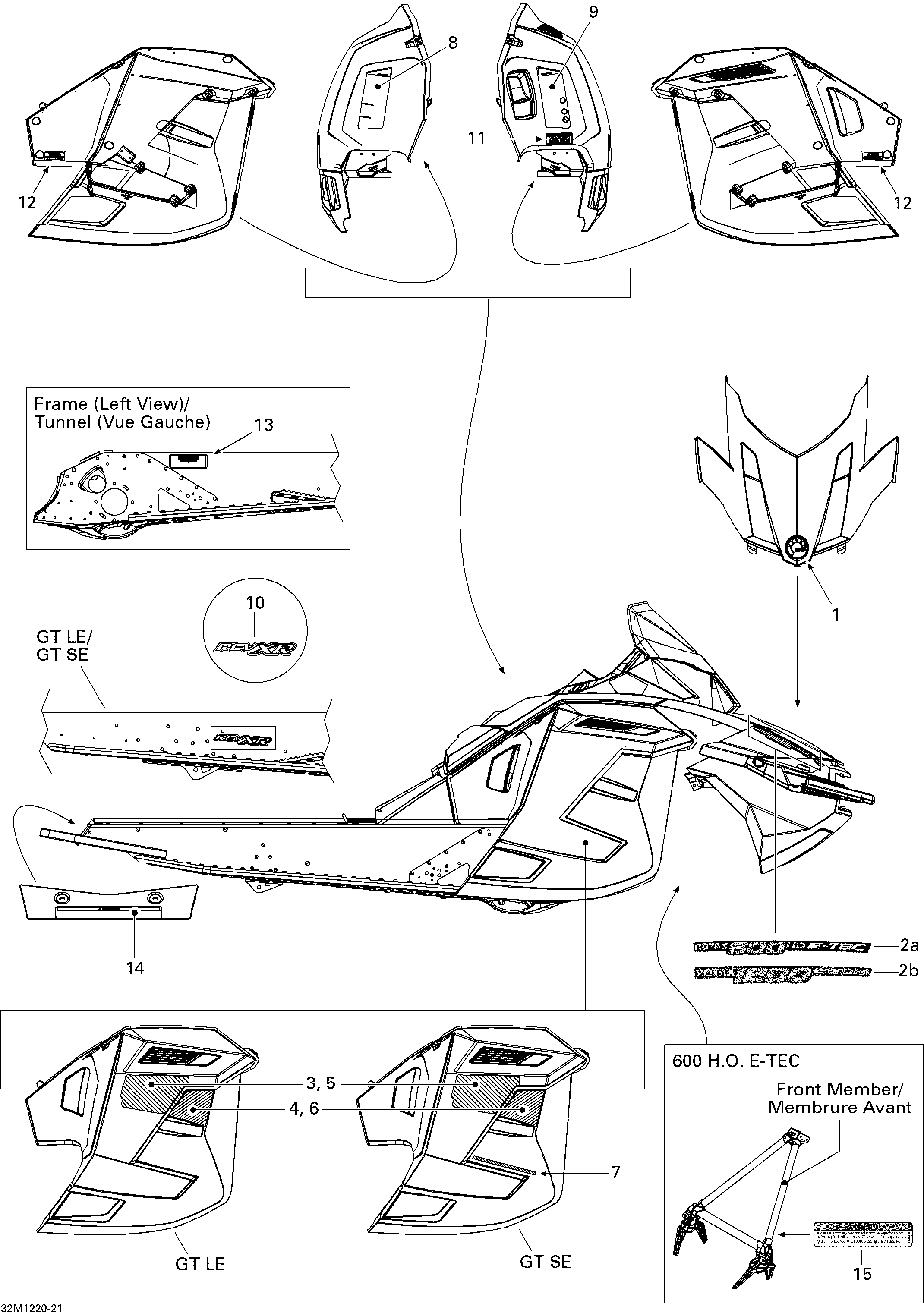

09- Decals LE для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516004465 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004884 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004504 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004883 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
6516004503 LH Front Upper Side DecalLH Front Upper Side Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516004207 Decal, REV XRDecal, REV XR
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13516004815 Conformity Decal, B.A.T.. North AmericaConformity Decal, B.A.T.. North America
-
14516004440 Warning Decal, TrackWarning Decal, Track
