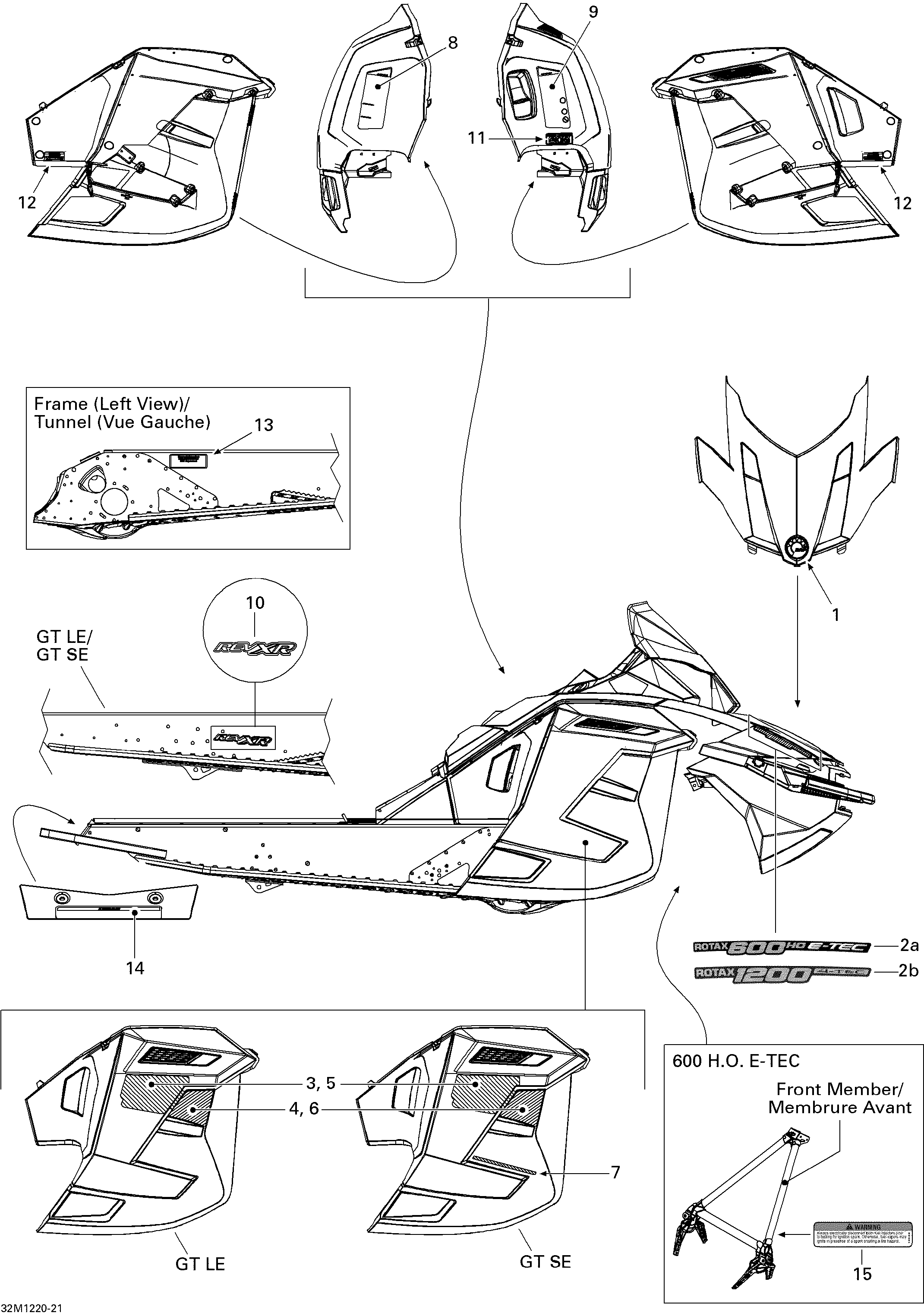

09- Decals SE для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516004465 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004882 RH Rear Upper Side Decal. Blue-Blue ModelRH Rear Upper Side Decal. Blue-Blue Model
-
3516004884 RH Rear Upper Side Decal. Black-Black ModelRH Rear Upper Side Decal. Black-Black Model
-
4516004504 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004881 LH Rear Upper Side Decal. Blue-Blue ModelLH Rear Upper Side Decal. Blue-Blue Model
-
5516004883 LH Rear Upper Side Decal. Black-Black ModelLH Rear Upper Side Decal. Black-Black Model
-
6516004503 LH Front Upper Side DecalLH Front Upper Side Decal
-
7516004520 Front Side DecalFront Side Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516003784 Decal, REV XRDecal, REV XR
-
11516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13516004815 Conformity Decal, B.A.T.. North AmericaConformity Decal, B.A.T.. North America
-
14516004440 Warning Decal, TrackWarning Decal, Track
