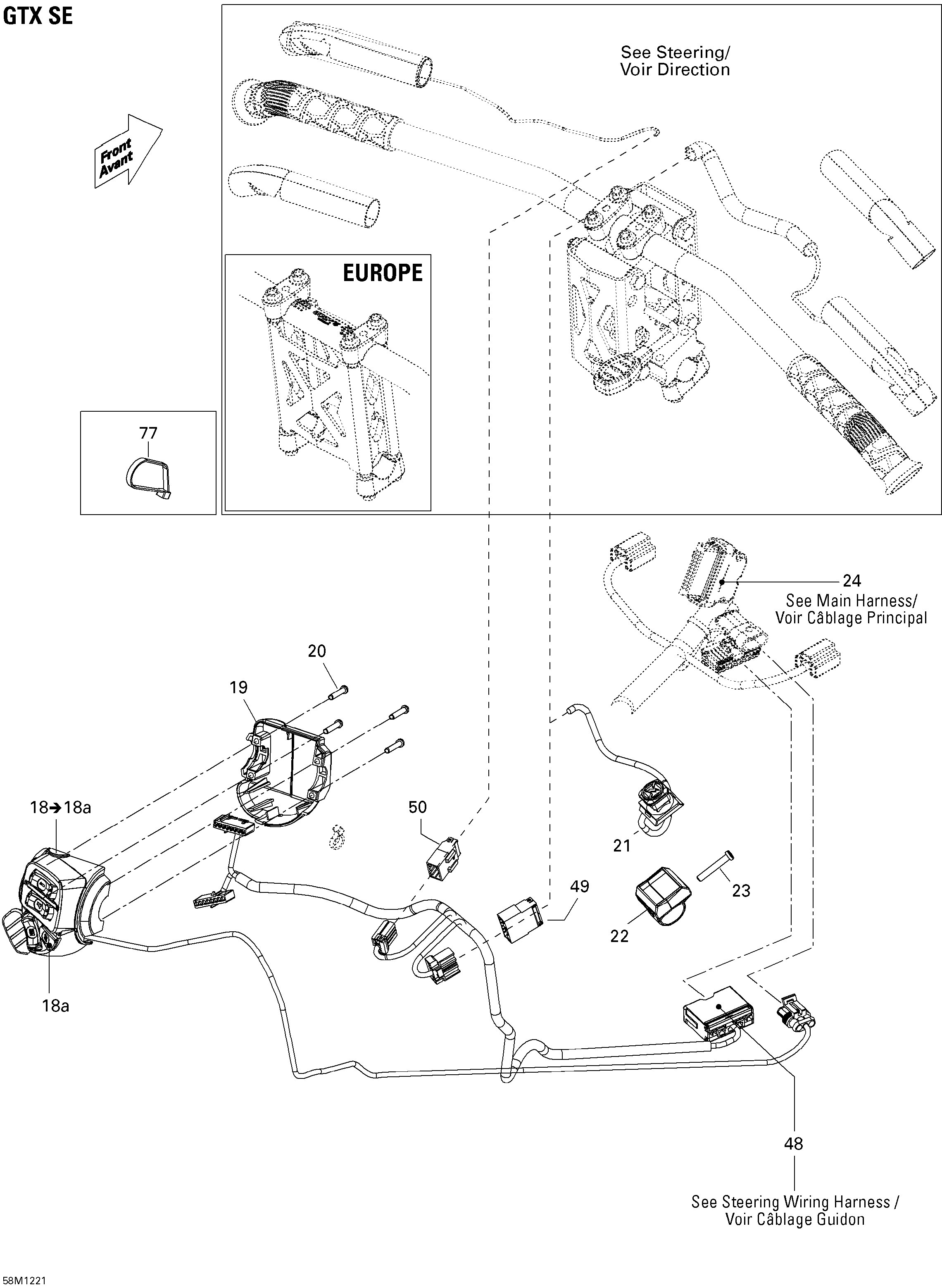

10- Electrical Accessories, Steering для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
![](/wa-data/public/shop/sheme/bombardier/ski-doo/77bf52ea-9010-4843-ba12-597fb58ad570.png)
-
№АртикулНазвание
-
18515177020 LH HousingLH Housing
-
18a515176088 Start/RER ButtonStart/RER Button
-
19515175926 Housing Switch PlateHousing Switch Plate
-
20250000263 Torx Screw #8-18Torx Screw #8-18
-
21515177061 Kill SwitchKill Switch
-
22515176825 Kill Switch SupportKill Switch Support
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24515177107 Main Harness Ass'yMain Harness Ass'y
-
48515176868 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
49515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
50515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
77293750027 Tie-Rap 206 mmTie-Rap 206 mm
