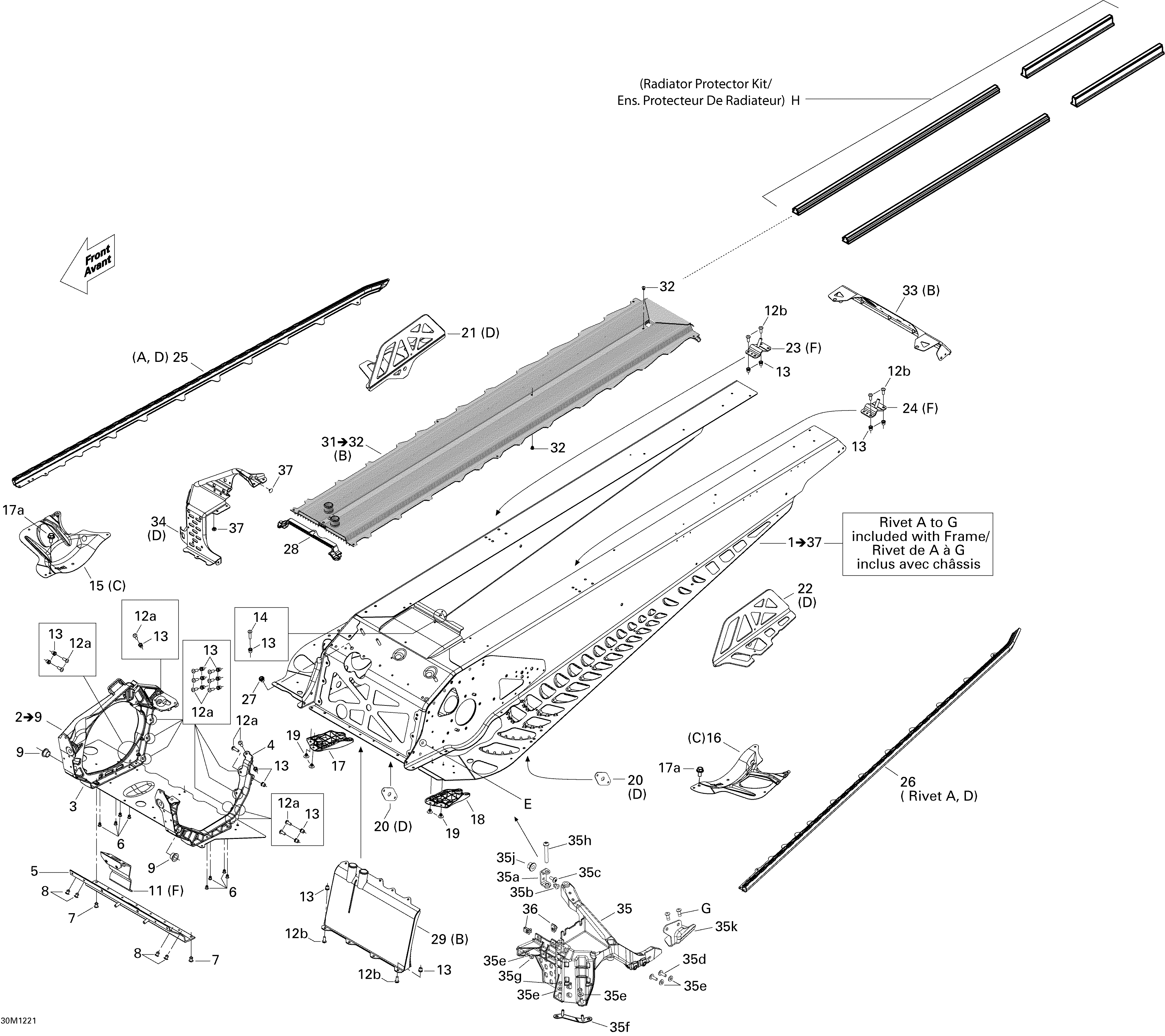

09- Frame для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1415129667 Frame GT LE 1200 Rev XR 137''. Includes 1 to 37Frame GT LE 1200 Rev XR 137''. Includes 1 to 37
-
1415129669 Frame GT SE 1200 Rev XR 137''. Includes 1 to 37Frame GT SE 1200 Rev XR 137''. Includes 1 to 37
-
2518327007 Module E, XR. Includes 2 to 9Module E, XR. Includes 2 to 9
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505072690 Leg CushionLeg Cushion
-
11518325371 MAG Engine SupportMAG Engine Support
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326647 Reinforcement PlateReinforcement Plate
-
21518326136 RH Slide BracketRH Slide Bracket
-
22518326137 LH Slide BracketLH Slide Bracket
-
23518325973 RH Rear BaseRH Rear Base
-
24518325974 LH Rear BaseLH Rear Base
-
25518325377 RH RollerRH Roller
-
26518325378 LH Roller. Grand Touring LELH Roller. Grand Touring LE
-
26518325846 LH Roller. Grand Touring SELH Roller. Grand Touring SE
-
27415107300 InsertInsert
-
28518326656 SealSeal
-
29518326489 Front Radiator Ass'yFront Radiator Ass'y
-
31518326641 Rear Radiator Ass'y. Includes 31 to 32Rear Radiator Ass'y. Includes 31 to 32
-
32293150144 Stavex RivetStavex Rivet
-
33518325421 Rear CapRear Cap
-
34518326216 RH StirupRH Stirup
-
35518326820 LH StirupLH Stirup
-
36250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
37293730042 DartDart
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17a207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
35a518326961 U-AttachU-Attach
-
35b293150147 Hemlock RivetHemlock Rivet
-
35c250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
35d250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
35e250200039 Flat WasherFlat Washer
-
35f518326986 AttachAttach
-
35g232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35h250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
35j233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
35k518326960 SupportSupport
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
D293150144 Stavex RivetStavex Rivet
-
E293150146 Henrob RivetHenrob Rivet
-
F293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
G293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
H860200267 Tunnel Protector KitTunnel Protector Kit
