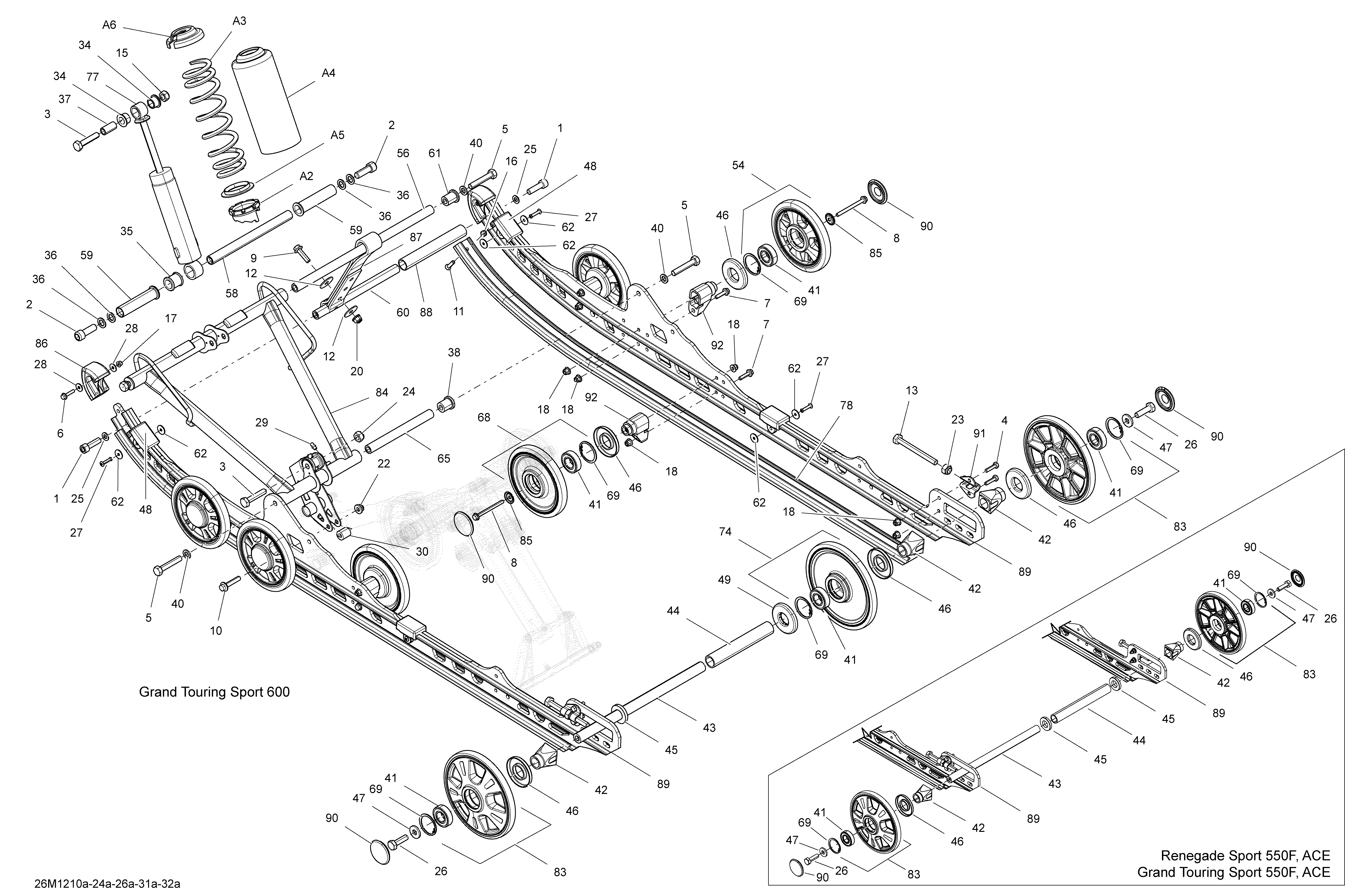

08- Rear Suspension Base And Front Arm для BRP Ski-Doo Grand Touring Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
2205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
3207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
4250000479 Hex. Screw Cap Full Thread M6 X 25Hex. Screw Cap Full Thread M6 X 25
-
5207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
8250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
9207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
10207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
11208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
12224081301 Flat WasherFlat Washer
-
13230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
15233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
18250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25503189564 WasherWasher
-
26250000019 Hex. Screw With NylonHex. Screw With Nylon
-
27293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
28391301600 WasherWasher
-
29408200700 Grease FittingGrease Fitting
-
30414936000 CushionCushion
-
34503189117 CushionCushion
-
35503189271 CushionCushion
-
36503189276 WasherWasher
-
37503189282 BushingBushing
-
38503189324 CushionCushion
-
40503192496 WasherWasher
-
40503189564 WasherWasher
-
41503190396 Ball BearingBall Bearing
-
42503190428 Rear Wheel SpacerRear Wheel Spacer
-
43503190429 Rear AxleRear Axle
-
44503191108 SpacerSpacer
-
45503190432 WasherWasher
-
46503190434 Labyrinth SealLabyrinth Seal
-
47503190439 WasherWasher
-
48503190576 Rubber StopperRubber Stopper
-
54503191624 Wheel Ass'y, 147 mm, Full MoonWheel Ass'y, 147 mm, Full Moon
-
56503191215 Upper ShaftUpper Shaft
-
58503191258 Center Shock ShaftCenter Shock Shaft
-
59503191259 Center BushingCenter Bushing
-
60503191260 Axle StrapAxle Strap
-
61503191262 BushingBushing
-
62503191273 WasherWasher
-
65503191279 Lower ShaftLower Shaft
-
68503191311 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
69415129371 Retaining RingRetaining Ring
-
77503192266 Center ShockCenter Shock
-
78503191619 SliderSlider
-
83503191627 Wheel, 180 mm, Full MoonWheel, 180 mm, Full Moon
-
84503191752 Front ArmFront Arm
-
85503191820 Wheel Cup M6Wheel Cup M6
-
86503192299 Runner ProtectorRunner Protector
-
87503192360 Stopper StrapStopper Strap
-
88503192678 SpacerSpacer
-
89503192738 Runner 137''Runner 137''
-
90503192771 Wheel CapWheel Cap
-
91503192814 TensionerTensioner
-
92503193082 Casted SupportCasted Support
-
A2505070150 Adjustment CamAdjustment Cam
-
A3503191882 SpringSpring
-
A4503191126 ProtectorProtector
-
A5503191872 Spring GuideSpring Guide
-
A6706200881 Spring StopperSpring Stopper
