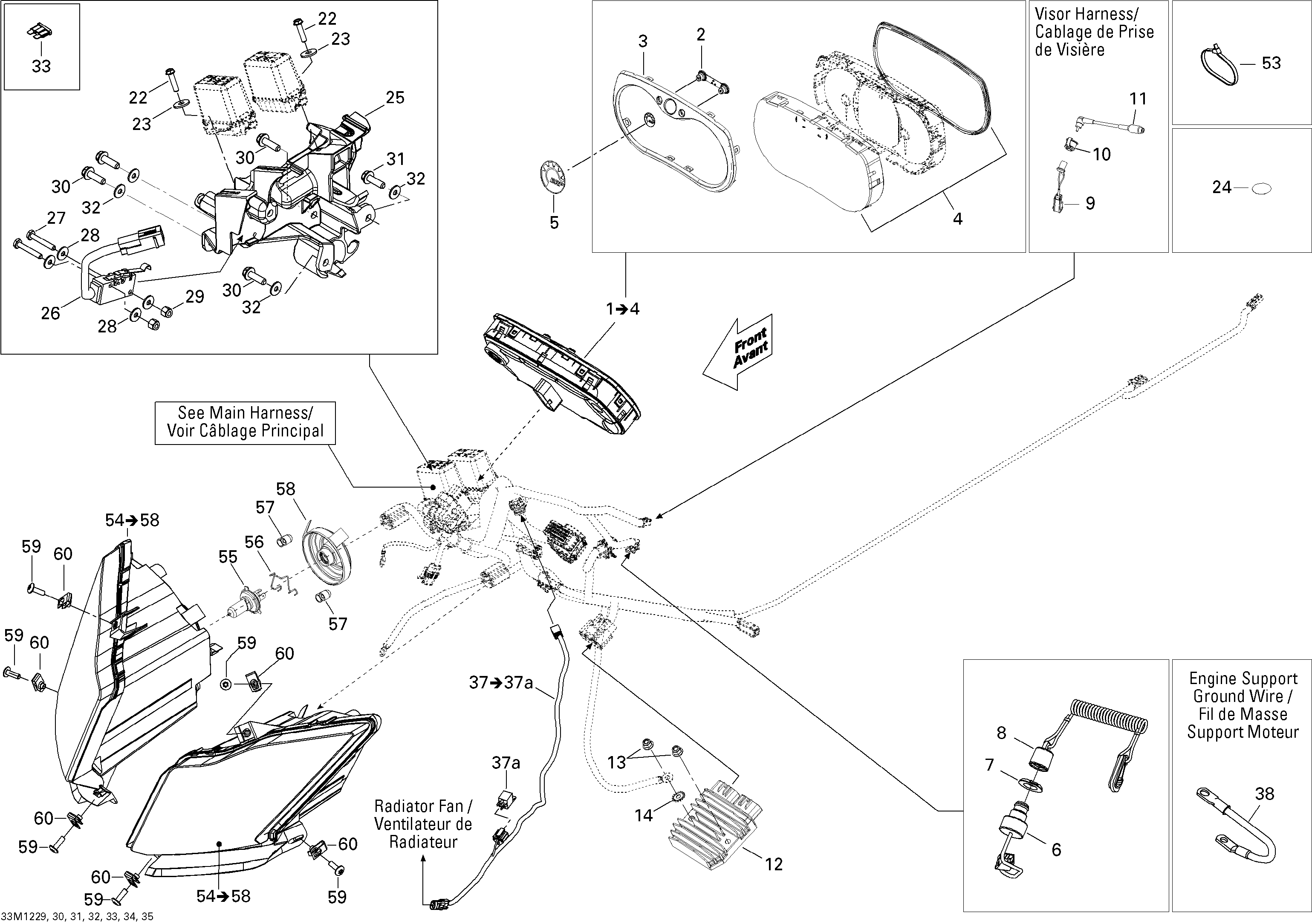

10- Electrical System для BRP Ski-Doo Grand Touring Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1515177121 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS SwitchDESS Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
9515177187 Visor HarnessVisor Harness
-
10572103300 CapCap
-
11515175851 ExtensionExtension
-
12278002021 Voltage RegulatorVoltage Regulator
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
22211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24518325560 Adhesive PatchAdhesive Patch
-
25515176866 PlatePlate
-
26515176881 Switch Ass'ySwitch Ass'y
-
27207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
28234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
29232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
30210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
32250200039 Flat WasherFlat Washer
-
33710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
33710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
33710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
33710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
33710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
37515177105 Fan HarnessFan Harness
-
37a515177041 RelayRelay
-
38515177014 Ground WireGround Wire
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
53293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
53293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
54517304194 RH Headlamp Ass'y. Includes 54 to 58RH Headlamp Ass'y. Includes 54 to 58
-
54517304195 LH Headlamp Ass'y. Includes 54 to 58LH Headlamp Ass'y. Includes 54 to 58
-
55515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
56515176493 Bulb HolderBulb Holder
-
57515176498 CapCap
-
58515176499 CoverCover
-
59250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
60250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
