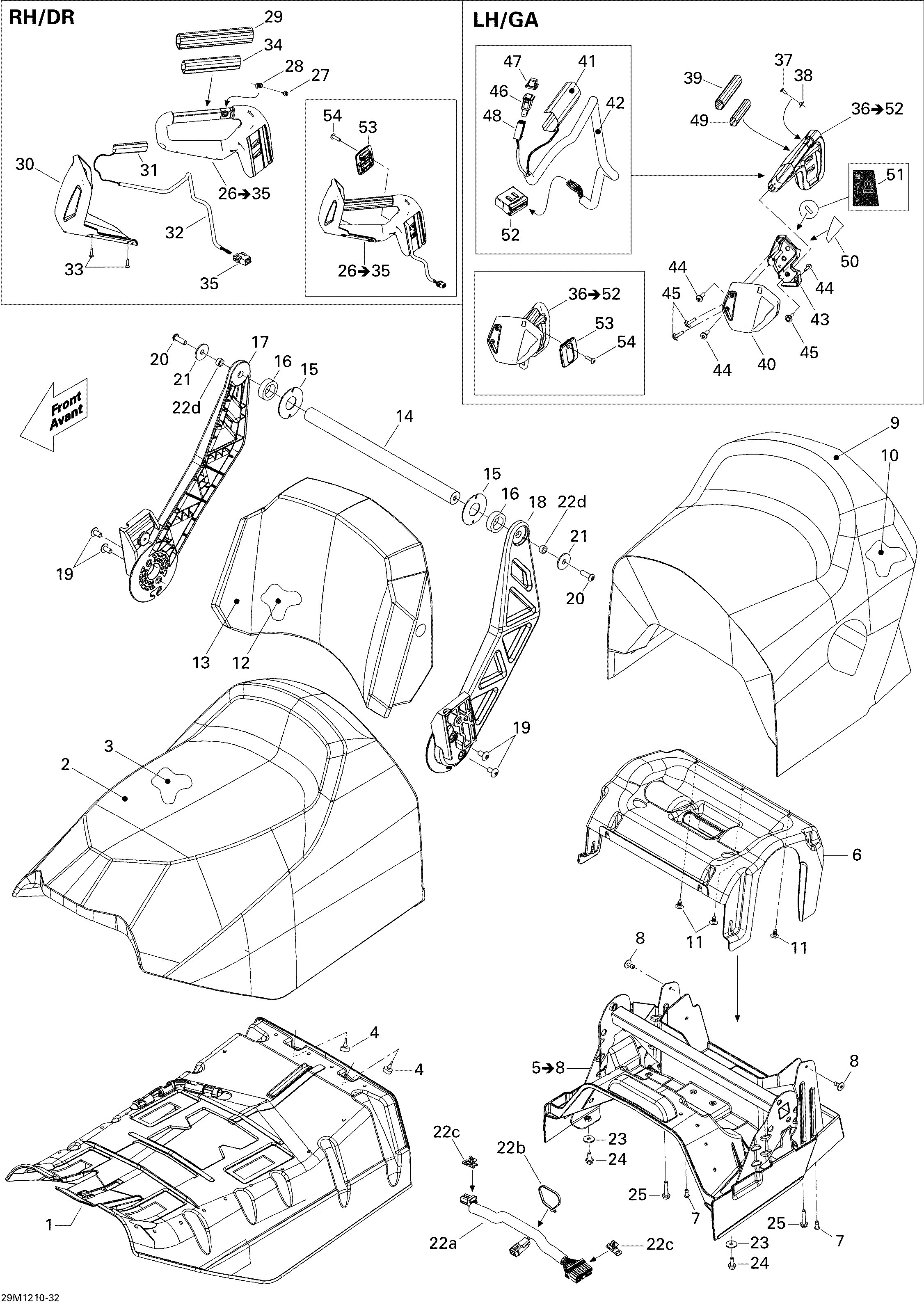

09- Seat для BRP Ski-Doo Grand Touring Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005181 Seat CoverSeat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000759 Rubber StopperRubber Stopper
-
5510005535 Seat Base Ass'y. Includes 5 to 8Seat Base Ass'y. Includes 5 to 8
-
6510004423 Foam SupportFoam Support
-
7390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
8293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
9510005399 Rear Seat CoverRear Seat Cover
-
10510004791 Rear Seat FoamRear Seat Foam
-
11414644300 DartDart
-
12510004782 Backrest FoamBackrest Foam
-
13510005309 Backrest CoverBackrest Cover
-
14510004377 Upper Backrest AxleUpper Backrest Axle
-
15510004379 WasherWasher
-
16510004378 Rubber ShimRubber Shim
-
17510005539 RH Arm, BlackRH Arm, Black
-
18510005538 LH Arm, BlackLH Arm, Black
-
19250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
20250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
21250200128 Flat Washer 8 mmFlat Washer 8 mm
-
22a515176766 Seat HarnessSeat Harness
-
22b414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22c515175283 Housing SupportHousing Support
-
22d271000558 SpacerSpacer
-
23224061201 Flat WasherFlat Washer
-
24207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
25207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
26510005542 RH Handle Ass'y. Includes 26 to 35RH Handle Ass'y. Includes 26 to 35
-
27250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
28293100003 Nut M6Nut M6
-
29510004449 Handle GripHandle Grip
-
30510005009 RH Air DeflectorRH Air Deflector
-
31515176999 Heated ElementHeated Element
-
32515175506 TubingTubing
-
33250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
34510005011 Handle ReinforcementHandle Reinforcement
-
35515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
36510005543 LH Handle Ass'y. Includes 36 to 52LH Handle Ass'y. Includes 36 to 52
-
37250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
38293100003 Nut M6Nut M6
-
39510004449 Handle GripHandle Grip
-
40510005010 LH Air DeflectorLH Air Deflector
-
41515176999 Heated ElementHeated Element
-
42515175506 TubingTubing
-
43510005036 Housing SwitchHousing Switch
-
44250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
45250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
46510004413 Rocker SwitchRocker Switch
-
47510004414 Switch ProtectorSwitch Protector
-
48515176697 Handle HarnessHandle Harness
-
49510005011 Handle ReinforcementHandle Reinforcement
-
50516003937 Connector DecalConnector Decal
-
51516003816 Heated Handle DecalHeated Handle Decal
-
52515176033 Male ConnectorMale Connector
-
53510004405 MouldingMoulding
-
54250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
