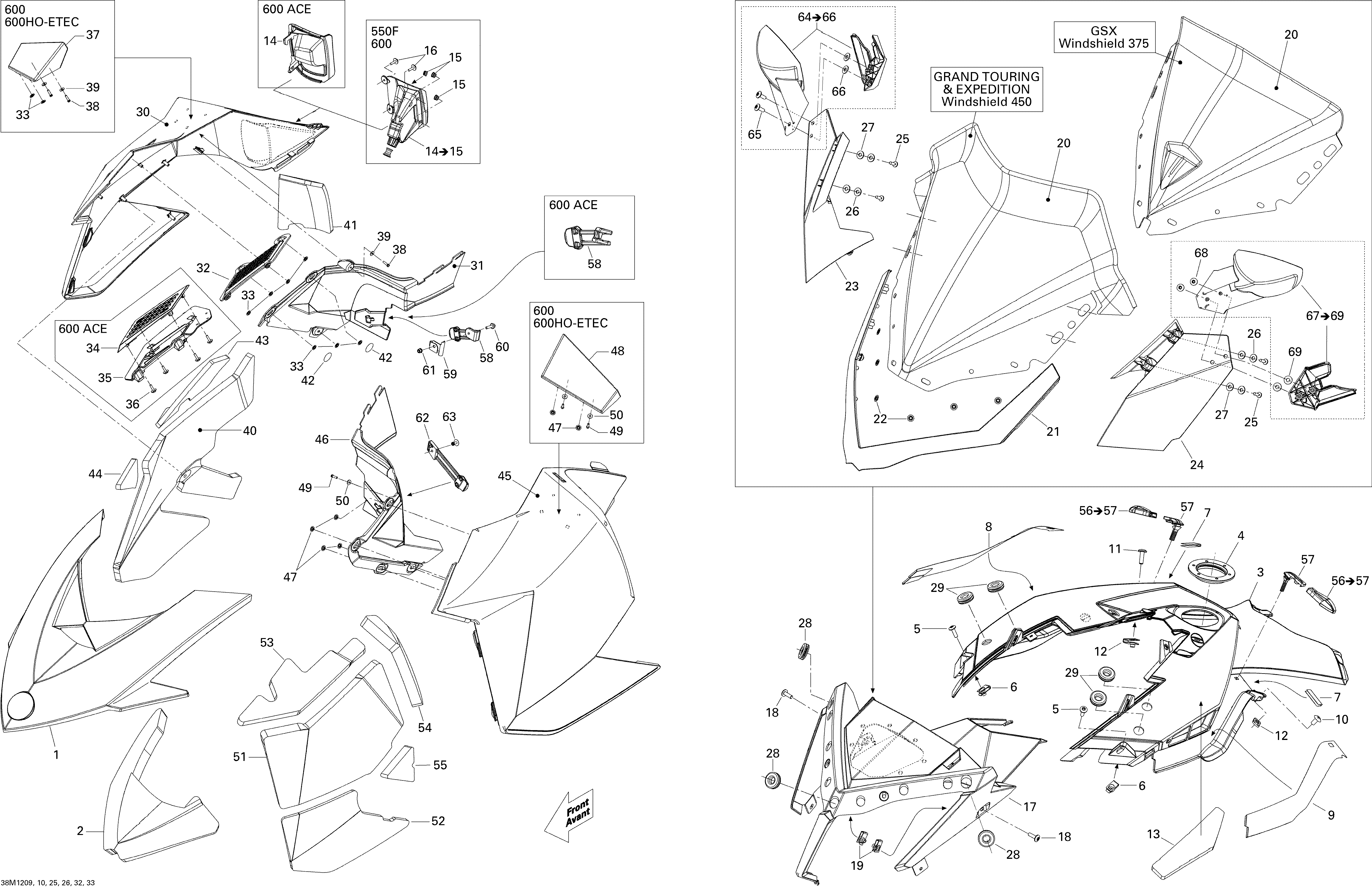

09- Hood, Windshield And Console для BRP Ski-Doo Grand Touring Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1517304530 HoodHood
-
2517304913 Hood FoamHood Foam
-
3517303924 ConsoleConsole
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
14517304500 RH Console. 600 ACERH Console. 600 ACE
-
17517304575 Gauge Support. 600 ACEGauge Support. 600 ACE
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20517304766 Windshield 450. Grand TouringWindshield 450. Grand Touring
-
21517303607 Windshield SupportWindshield Support
-
22732610072 Push NutPush Nut
-
23517303791 RH Air Deflector. Grand TouringRH Air Deflector. Grand Touring
-
24517303792 LH Air Deflector. Grand TouringLH Air Deflector. Grand Touring
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26250200025 Washer M5Washer M5
-
27250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
28517303756 GrommetGrommet
-
29517303756 GrommetGrommet
-
30517304029 RH Panel. 600 ACERH Panel. 600 ACE
-
31517303671 RH Moulding PanelRH Moulding Panel
-
33732610072 Push NutPush Nut
-
34517304763 External Grill. 600 ACEExternal Grill. 600 ACE
-
35517304764 Internal Grill. 600 ACEInternal Grill. 600 ACE
-
36250000113 Screw M4 X 16, Type K-40. 600 ACEScrew M4 X 16, Type K-40. 600 ACE
-
38241141660 Flanged Hex. Screw K40 X 16. 600 ACEFlanged Hex. Screw K40 X 16. 600 ACE
-
39234042600 Flat Washer 4 mm, Stainless. 600 ACEFlat Washer 4 mm, Stainless. 600 ACE
-
40517304883 RH Center FoamRH Center Foam
-
41517304884 RH Panel Rear FoamRH Panel Rear Foam
-
42518325560 Adhesive PatchAdhesive Patch
-
45517304030 LH Panel. 600 ACELH Panel. 600 ACE
-
46517303673 LH Moulding PanelLH Moulding Panel
-
47732610072 Push NutPush Nut
-
49241141660 Flanged Hex. Screw K40 X 16. 600 ACEFlanged Hex. Screw K40 X 16. 600 ACE
-
50234042600 Flat Washer 4 mm, Stainless. 600 ACEFlat Washer 4 mm, Stainless. 600 ACE
-
51517304887 LH Panel Center FoamLH Panel Center Foam
-
52517304888 LH Panel Lower FoamLH Panel Lower Foam
-
53517304889 LH Panel Upper FoamLH Panel Upper Foam
-
54517304890 LH Panel Rear FoamLH Panel Rear Foam
-
55517304891 FoamFoam
-
56860200239 Black Latch Kit. Includes 56 to 57Black Latch Kit. Includes 56 to 57
-
57517303981 Panel LatchPanel Latch
-
58517304551 Panel Latch. 600 ACEPanel Latch. 600 ACE
-
62517303808 Panel LatchPanel Latch
-
63250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
64517305100 RH Mirror Ass'y. Includes 64 to 66RH Mirror Ass'y. Includes 64 to 66
-
65250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
66250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
67517305101 LH Mirror Ass'y. Includes 67 to 69LH Mirror Ass'y. Includes 67 to 69
-
68250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
69250200024 Rubber Washer 5 mmRubber Washer 5 mm
