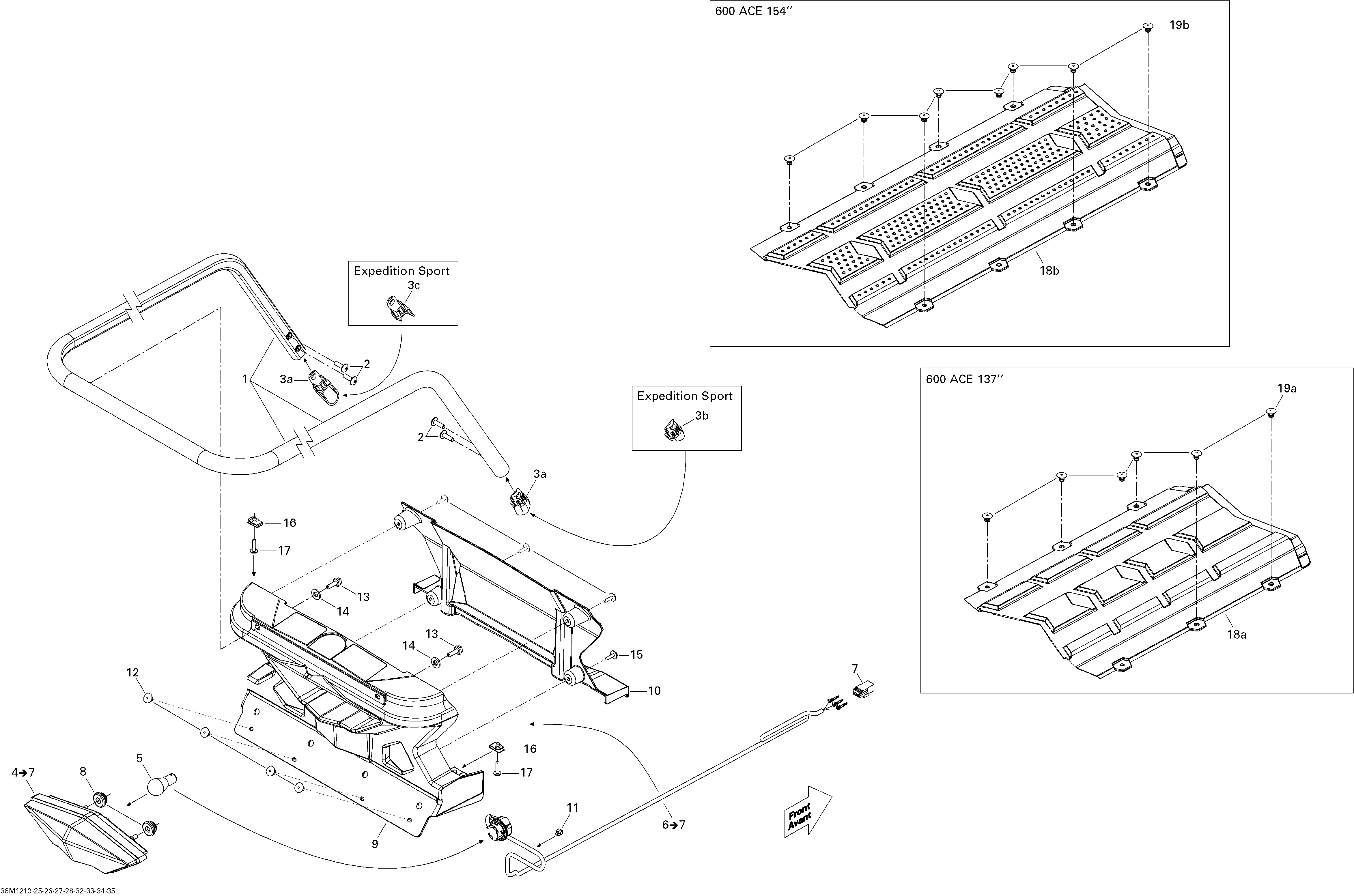

09- Luggage Rack для BRP Ski-Doo Grand Touring Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1511000707 Luggage RackLuggage Rack
-
2250000420 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
3a520000899 CapCap
-
4520000679 Rear Light Ass'y. Includes 4 to 7Rear Light Ass'y. Includes 4 to 7
-
5520000758 BulbBulb
-
6520000680 Wiring Harness Ass'y. Includes 6 to 8Wiring Harness Ass'y. Includes 6 to 8
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8705003666 Rubber GrommetRubber Grommet
-
9511000625 Rear Light SupportRear Light Support
-
10511000701 Rear Cover SupportRear Cover Support
-
11293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14391302000 Flat WasherFlat Washer
-
15250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
18a511000590 Radiator CoverRadiator Cover
-
19a293150103 Pop Rivet 3/16''Pop Rivet 3/16''
