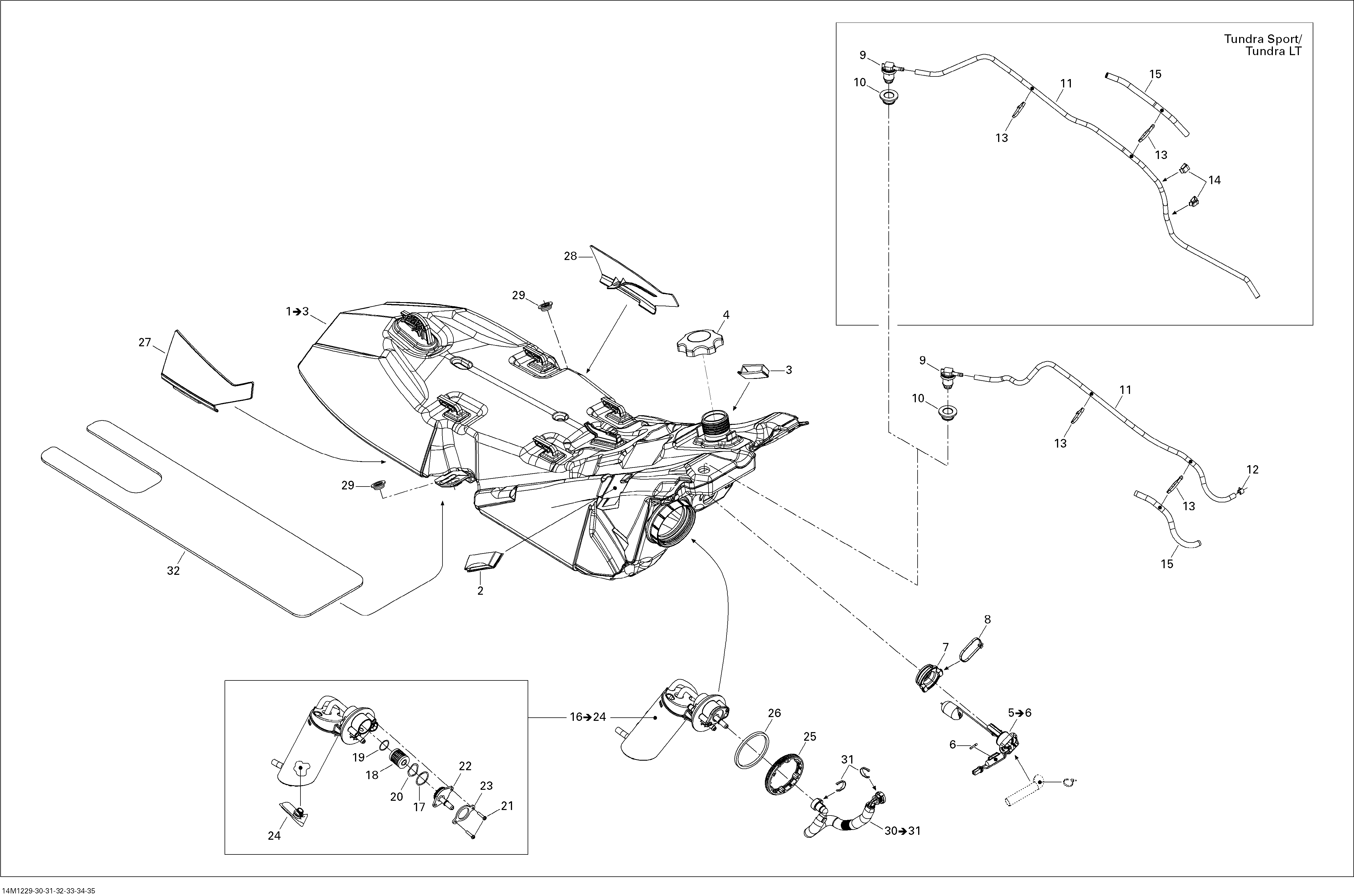

02- Fuel System для BRP Ski-Doo Tundra LT 600ACE LFF - 2012
-
№АртикулНазвание
-
1513033578 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033025 Fuel Tank CapFuel Tank Cap
-
5513033642 Fuel Level Sensor Ass'y. Includes 5 to 6Fuel Level Sensor Ass'y. Includes 5 to 6
-
6710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
7513033606 GrommetGrommet
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9513033188 Check ValveCheck Valve
-
10513033596 GrommetGrommet
-
11415080200 Hose, PolyurethaneHose, Polyurethane
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14414227300 ClipClip
-
15504152900 Protector TubeProtector Tube
-
16513033694 Fuel Pump Ass'y. Includes 16 to 24Fuel Pump Ass'y. Includes 16 to 24
-
17415129509 O-RingO-Ring
-
18415129510 Fuel FilterFuel Filter
-
19415129511 O-RingO-Ring
-
20415129512 Wave WasherWave Washer
-
21415129513 ScrewScrew
-
22415129685 CoverCover
-
23415129569 Fuel Pump RingFuel Pump Ring
-
24415129451 Fuel FilterFuel Filter
-
25513033180 RingRing
-
26513033334 GasketGasket
-
27513033418 RH CapRH Cap
-
28513033419 LH CapLH Cap
-
29513033326 Shoulder BushingShoulder Bushing
-
30513033582 Hose Ass'y. Includes 30 to 31Hose Ass'y. Includes 30 to 31
-
31513033135 Locking ClipLocking Clip
-
32513033588 Insulating FoamInsulating Foam
