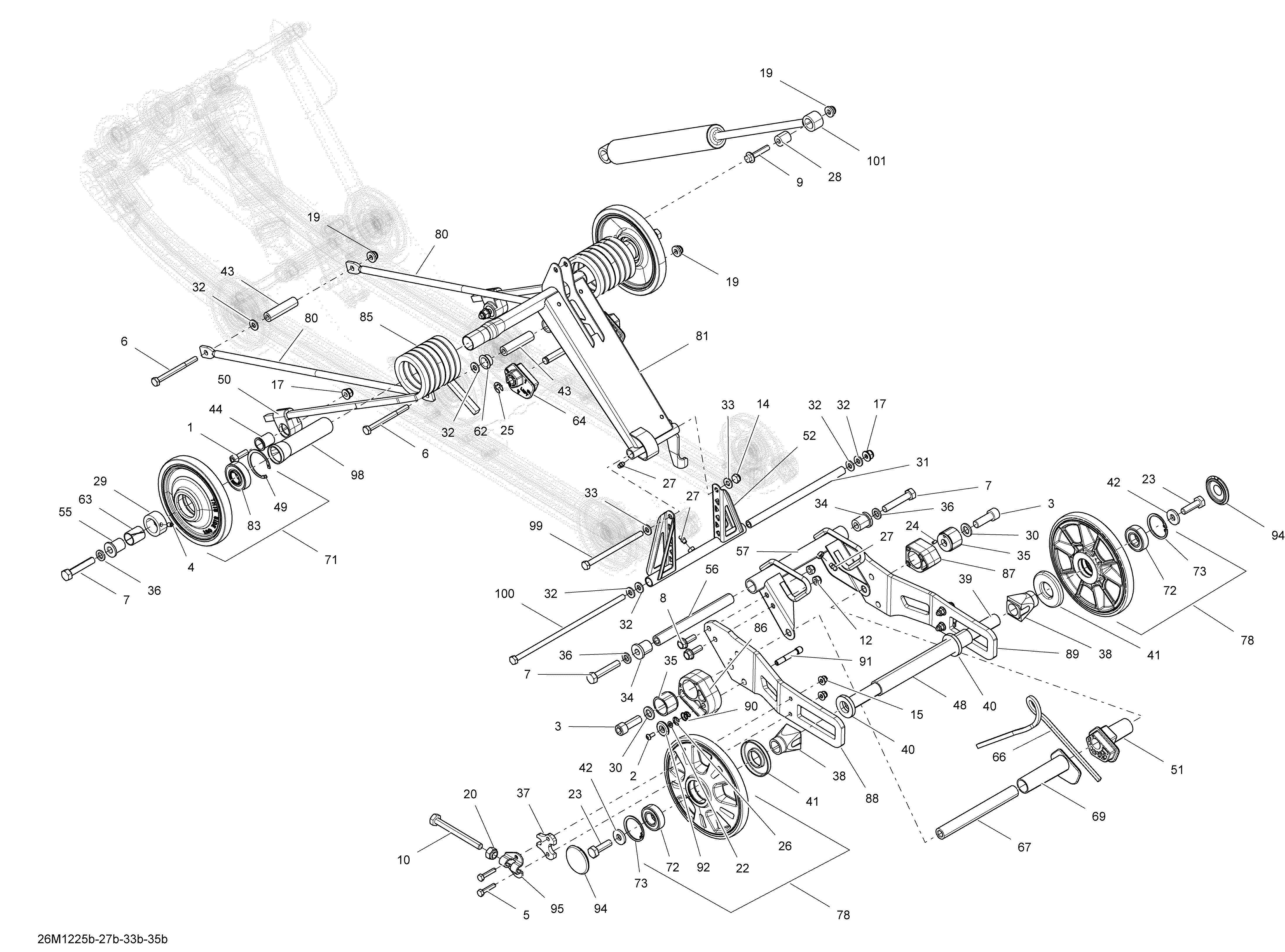

08- Rear Suspension Rear Arm And Shock для BRP Ski-Doo Tundra LT 600ACE LFF - 2012
-
№АртикулНазвание
-
1205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
2250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
3205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
4206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
5250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
6207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
7207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
8207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
9207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
10230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
12232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
14232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
15233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
22234051410 Flat Washer M5Flat Washer M5
-
23250000019 Hex. Screw With NylonHex. Screw With Nylon
-
24250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
25293370013 E-CirclipE-Circlip
-
26293370068 CirclipCirclip
-
27408200700 Grease FittingGrease Fitting
-
28414936000 CushionCushion
-
29503168800 Retaining RingRetaining Ring
-
30503189148 WasherWasher
-
31503189156 Pivot Arm AxlePivot Arm Axle
-
32503192494 WasherWasher
-
32503189157 WasherWasher
-
33503189157 WasherWasher
-
34503189324 CushionCushion
-
35503189488 Block GuideBlock Guide
-
36503189564 WasherWasher
-
37503190379 Tensioner SpacerTensioner Spacer
-
38503190428 Rear Wheel SpacerRear Wheel Spacer
-
39503190429 Rear AxleRear Axle
-
40503190432 WasherWasher
-
41503190434 Labyrinth SealLabyrinth Seal
-
42503190439 WasherWasher
-
43503190643 Bar AxleBar Axle
-
44503190754 Retainer CushionRetainer Cushion
-
48503191736 Rear Spacer, LongRear Spacer, Long
-
49415129371 Retaining RingRetaining Ring
-
50503191183 Spring SupportSpring Support
-
51503191190 RH Spring CamRH Spring Cam
-
52503191209 Pivot ArmPivot Arm
-
55503191262 BushingBushing
-
56503191279 Lower ShaftLower Shaft
-
57503192647 Runner PivotRunner Pivot
-
62503191555 Swivel BushingSwivel Bushing
-
63503191556 Extended BushingExtended Bushing
-
64503191565 LH Cam AdjusterLH Cam Adjuster
-
64503191566 RH Cam AdjusterRH Cam Adjuster
-
66503192282 Pivot SpringPivot Spring
-
67503191608 Cam AxelCam Axel
-
69503191668 LH Spring CamLH Spring Cam
-
71503191738 Wheel, 155 mmWheel, 155 mm
-
72503190396 Ball BearingBall Bearing
-
73415129371 Retaining RingRetaining Ring
-
78503192128 Wheel 165, BlackWheel 165, Black
-
80503191765 Link RodLink Rod
-
81503191762 Rear ArmRear Arm
-
83503191982 Ball BearingBall Bearing
-
85503192136 LH Spring, SquareLH Spring, Square
-
85503192137 RH Spring, SquareRH Spring, Square
-
86503192426 LH BlocLH Bloc
-
87503192427 RH BlocRH Bloc
-
88503192434 Rail Pivot LHRail Pivot LH
-
89503192435 Rail Pivot RHRail Pivot RH
-
90503192436 Compression SpringCompression Spring
-
91503192437 RodeRode
-
92503192438 HandleHandle
-
94503192771 Wheel CapWheel Cap
-
95503192814 TensionerTensioner
-
98572080700 BushingBushing
-
99732601197 Bolt M8, ShortBolt M8, Short
-
100503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
101503192294 Rear Shock HPGRear Shock HPG
