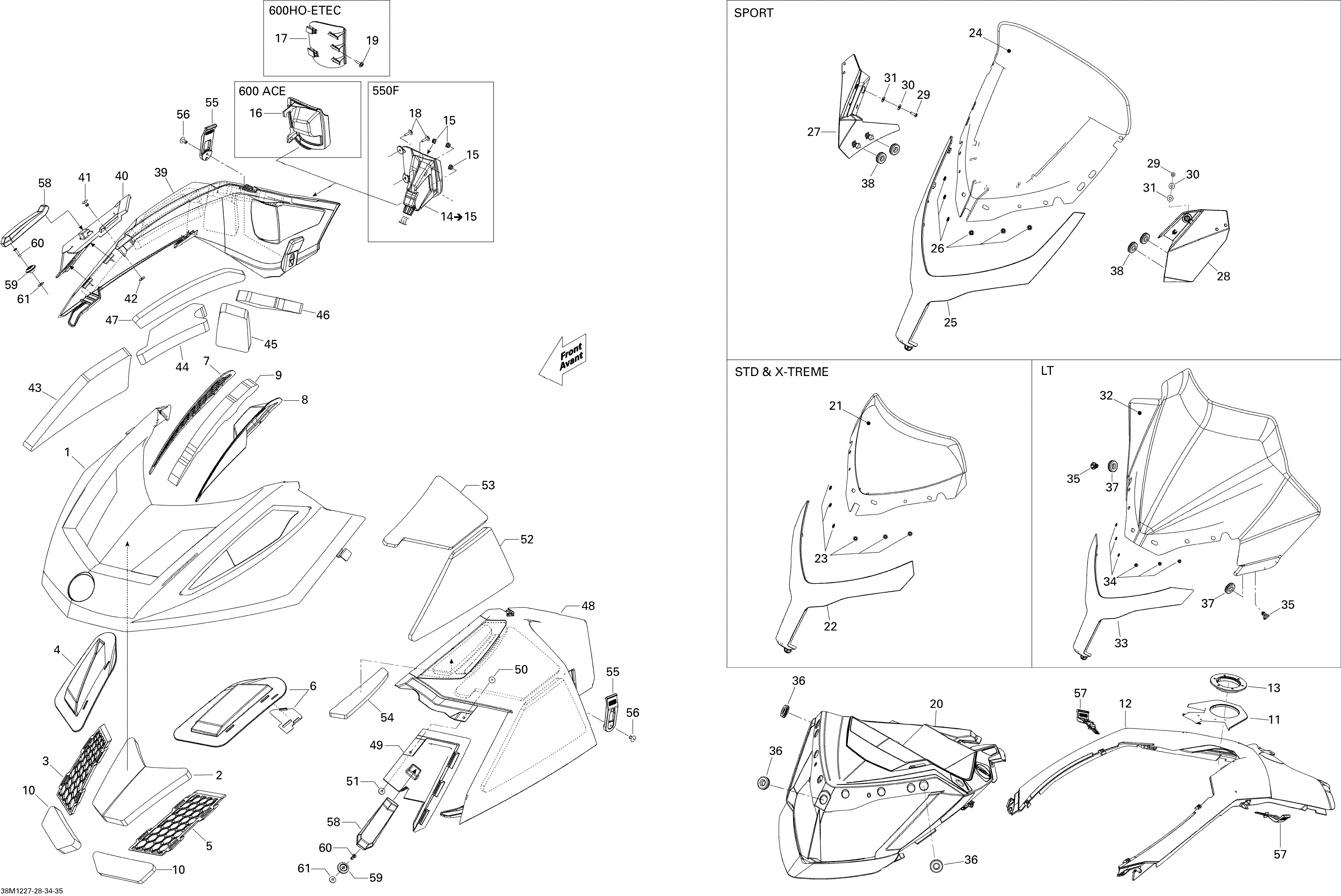

09- Hood, Windshield And Console для BRP Ski-Doo Tundra LT 600ACE LFF - 2012
-
№АртикулНазвание
-
1517304070 Hood, YellowHood, Yellow
-
4517304567 RH Hood Grill. 600 ACERH Hood Grill. 600 ACE
-
6517304694 LH Hood Grill. 600 ACELH Hood Grill. 600 ACE
-
8517304569 Air Inlet. 600 ACEAir Inlet. 600 ACE
-
11517304027 Cap ConsoleCap Console
-
12517304206 Console, YellowConsole, Yellow
-
13517304518 Console NutConsole Nut
-
16517304500 RH Console. 600 ACERH Console. 600 ACE
-
20517303972 Indicator Support. LT 600 ACEIndicator Support. LT 600 ACE
-
32517304964 Windshield (410). LTWindshield (410). LT
-
33860200228 Windshield Support. LTWindshield Support. LT
-
34732610072 Push Nut. LTPush Nut. LT
-
35517304744 Button. LTButton. LT
-
36517303756 GrommetGrommet
-
37517303756 Grommet. LTGrommet. LT
-
39517304071 RH Panel, YellowRH Panel, Yellow
-
40517304090 RH InsertRH Insert
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517124300 WasherWasher
-
43517304870 FoamFoam
-
44517304871 FoamFoam
-
48517304307 LH Panel. 600 ACELH Panel. 600 ACE
-
49517304092 LH Panel InsertLH Panel Insert
-
50293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
51517124300 WasherWasher
-
52517304874 FoamFoam
-
53517304875 FoamFoam
-
55517304999 Rear Panel LatchRear Panel Latch
-
56293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
57517304093 Center Panel LatchCenter Panel Latch
-
58517304094 Front Latch PanelFront Latch Panel
-
59517304320 Anchor LinkAnchor Link
-
60293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
61517124300 WasherWasher
