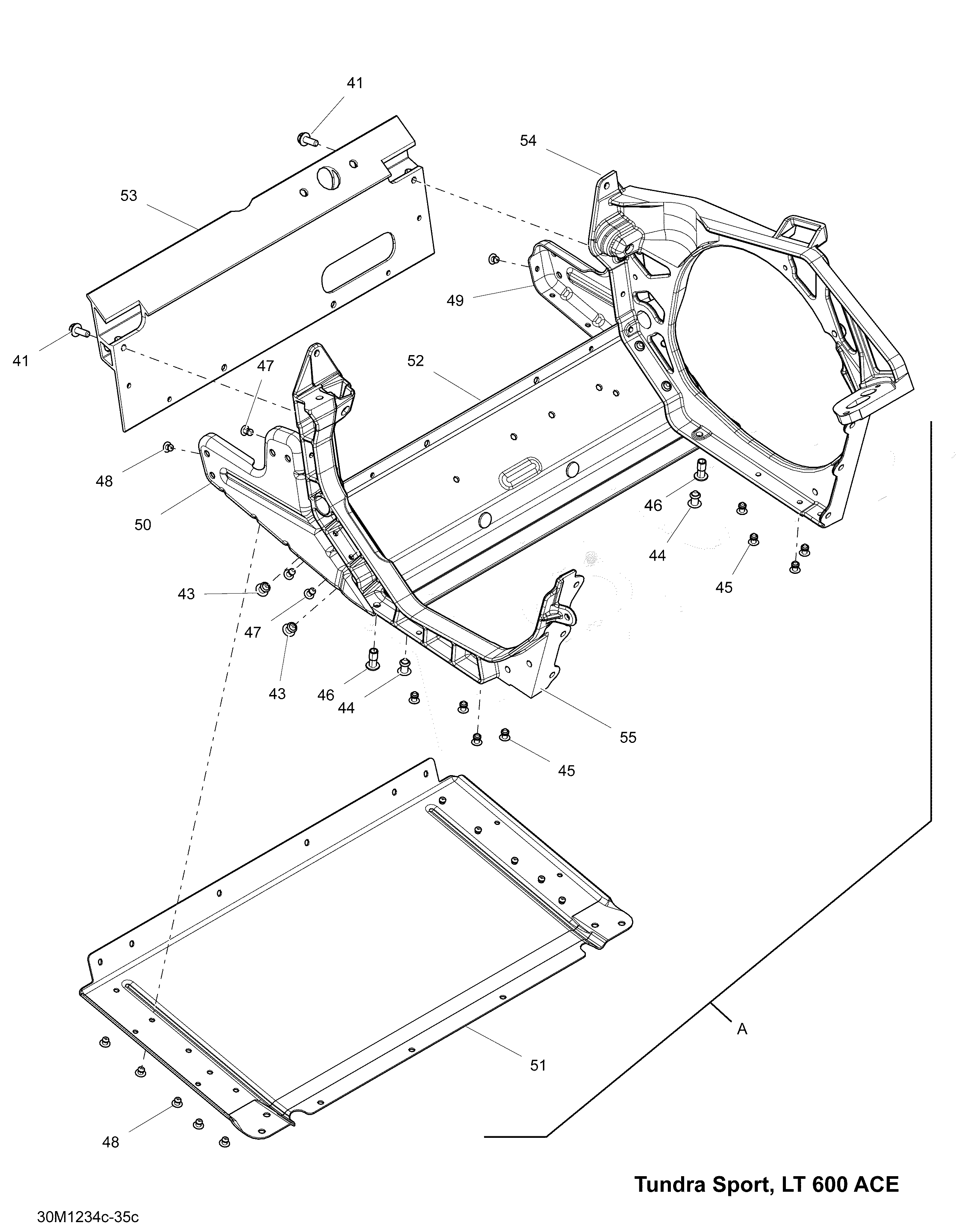

09- Frame E Module для BRP Ski-Doo Tundra LT 600ACE LFF - 2012
-
№АртикулНазвание
-
41210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
43293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
44293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
45293150144 Stavex RivetStavex Rivet
-
46293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
47390909100 Avex RivetAvex Rivet
-
48390909200 Avex RivetAvex Rivet
-
49518325949 RH Front MemberRH Front Member
-
50518325950 LH Front MemberLH Front Member
-
51518325951 Front Bottom PlateFront Bottom Plate
-
52518326198 Front MemberFront Member
-
53518326140 Engine SupportEngine Support
-
54518326328 RH Side MemberRH Side Member
-
55518326330 LH Side MemberLH Side Member
-
A518327006 E Module TUNDRA LFFE Module TUNDRA LFF
