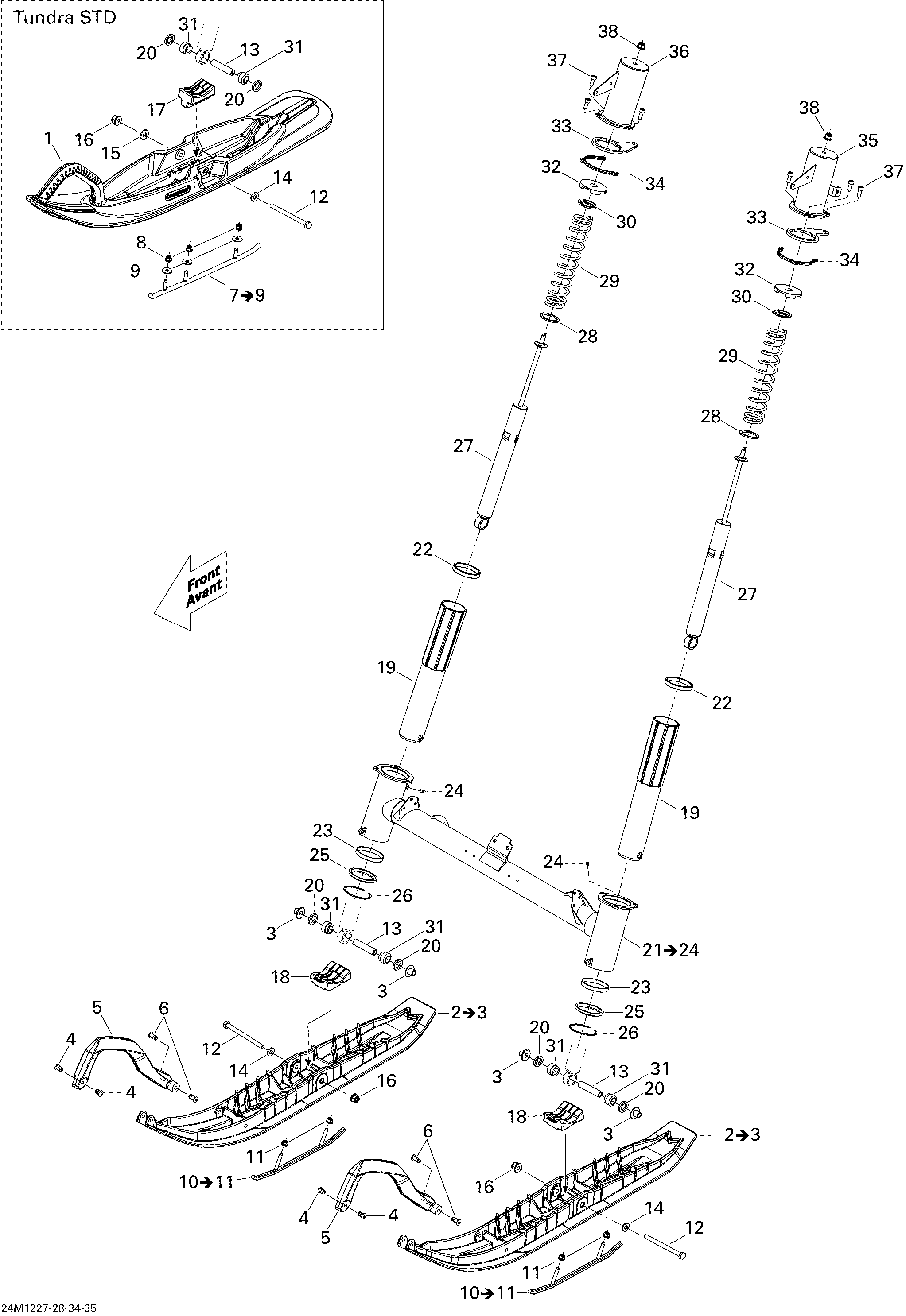

07- Front Suspension And Ski для BRP Ski-Doo Tundra LT 600ACE LFF - 2012
-
№АртикулНазвание
-
2415129567 DS Ski, Black. Includes 2 to 3DS Ski, Black. Includes 2 to 3
-
3505071781 CushionCushion
-
4505071812 RetainerRetainer
-
5505072976 Handle, BlackHandle, Black
-
6505072133 RetainerRetainer
-
10860200141 Carbide Runner Kit. Includes 10 to 11Carbide Runner Kit. Includes 10 to 11
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
13505073209 Ski AxleSki Axle
-
14732900049 WasherWasher
-
16233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18505072594 Ski StopperSki Stopper
-
19505072778 Ski LegSki Leg
-
20505072579 SpacerSpacer
-
21505072981 Module Ass'y. Includes 21 to 24Module Ass'y. Includes 21 to 24
-
22414803100 Upper CushionUpper Cushion
-
23414803200 Lower CushionLower Cushion
-
24408200700 Grease FittingGrease Fitting
-
25505072696 Seal OilSeal Oil
-
26505072698 CirclipCirclip
-
27505073046 ShockShock
-
28505072578 WasherWasher
-
29505072745 Painted SpringPainted Spring
-
30505072619 Spring StopperSpring Stopper
-
31572034500 CushionCushion
-
32570025800 StopperStopper
-
33505073171 Steering ArmSteering Arm
-
34505072581 SpacerSpacer
-
35505072539 LH Suspension CoverLH Suspension Cover
-
36505072550 RH Suspension CoverRH Suspension Cover
-
37205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
38233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
