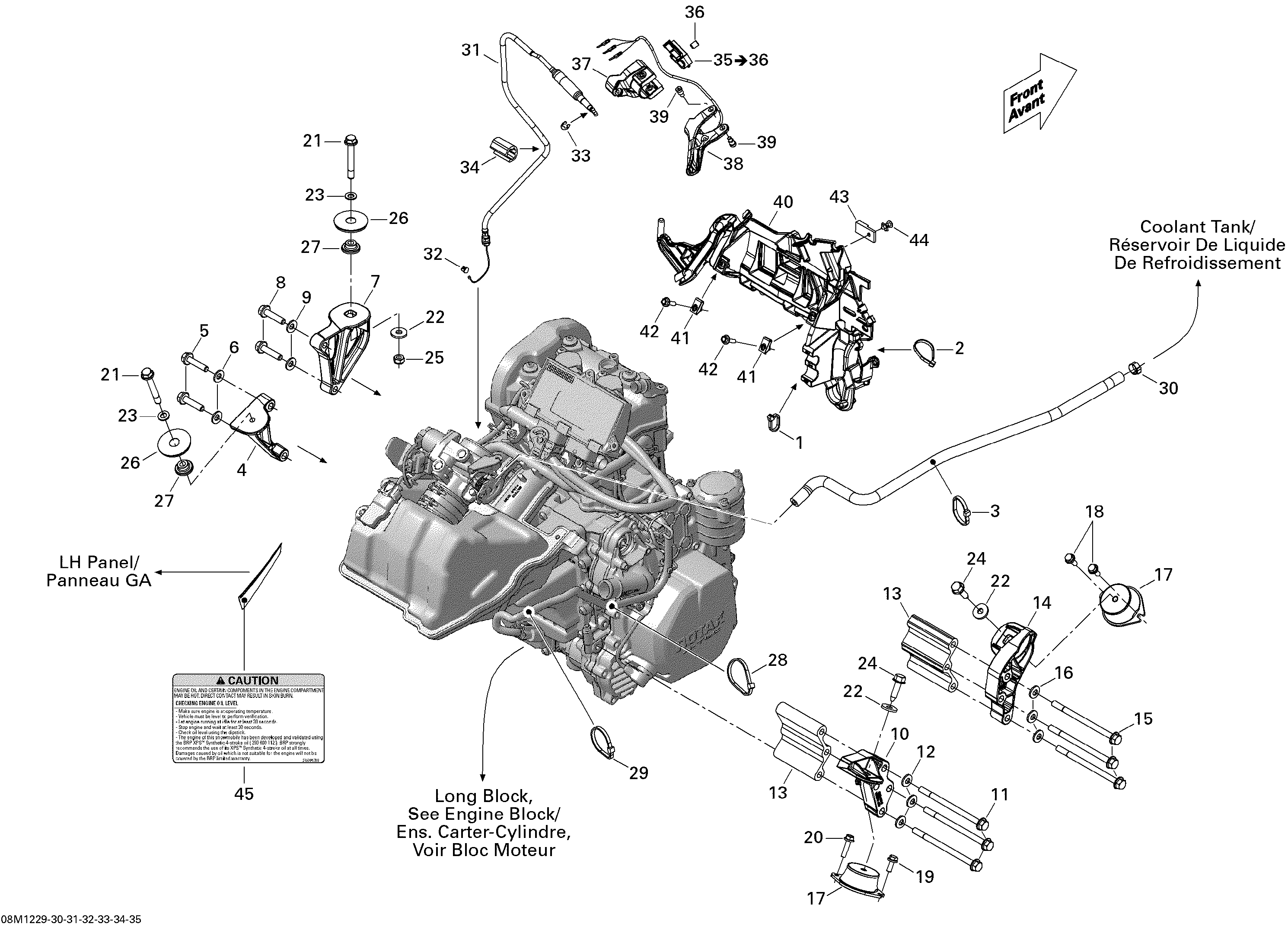

01- Engine для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4512060660 Rear Support, PTORear Support, PTO
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6234281474 Conical Spring Washer M8Conical Spring Washer M8
-
7512060661 Front Support, PTOFront Support, PTO
-
8207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10512060662 Rear Support, MAGRear Support, MAG
-
11230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13512060505 ShimShim
-
14512060663 Front Support, MAGFront Support, MAG
-
15230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
17512060729 Rubber MountRubber Mount
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
20207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
21207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
22503183200 Washer, YellowWasher, Yellow
-
23250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
24250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
25232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
26512060647 StopperStopper
-
27512060285 SpacerSpacer
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293650046 Oetiker ClampOetiker Clamp
-
31512060607 Throttle CableThrottle Cable
-
32707000434 Cable GuideCable Guide
-
33414274500 CirclipCirclip
-
34512060313 ProtectorProtector
-
35512060198 Upper Housing Ass'y. Includes 35 to 36Upper Housing Ass'y. Includes 35 to 36
-
36414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
37512060430 Lower HousingLower Housing
-
38512060616 Throttle HandleThrottle Handle
-
39732601143 Flanged ScrewFlanged Screw
-
40512060509 Module SupportModule Support
-
41250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
42207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
43270000141 ClipClip
-
44293150027 Avdel RivetAvdel Rivet
-
45516004718 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
