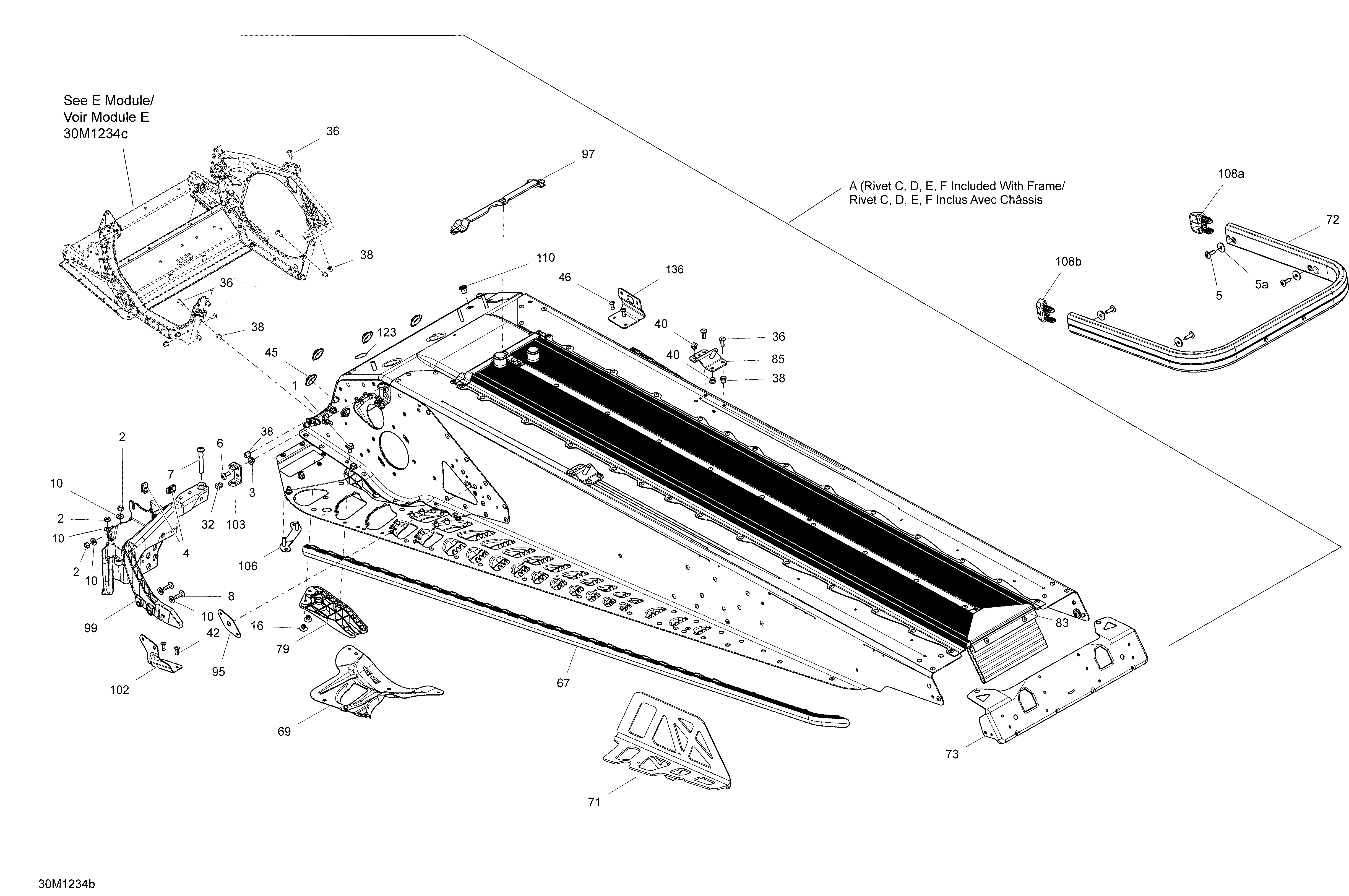

09- Frame 137'' для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
4250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
6250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
7250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
8250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
10250200039 Flat WasherFlat Washer
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
32293150147 Hemlock RivetHemlock Rivet
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
38233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
42293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
45293730052 Plug, BlackPlug, Black
-
46390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
67518325377 RH RollerRH Roller
-
67518325378 LH RollerLH Roller
-
69518324874 RH ReinforcementRH Reinforcement
-
69518324875 LH ReinforcementLH Reinforcement
-
71518326136 RH Slide BracketRH Slide Bracket
-
71518326137 LH Slide BracketLH Slide Bracket
-
72518325577 Rear BumperRear Bumper
-
73518325421 Rear CapRear Cap
-
79518325782 RH DeflectorRH Deflector
-
79518325783 LH DeflectorLH Deflector
-
83518326641 Rear Radiator Ass'yRear Radiator Ass'y
-
85518325973 RH Rear BaseRH Rear Base
-
85518325974 LH Rear BaseLH Rear Base
-
95518326647 Reinforcement PlateReinforcement Plate
-
97518326656 SealSeal
-
99518326820 LH StirupLH Stirup
-
102518326960 SupportSupport
-
103518326961 U-AttachU-Attach
-
106518326986 AttachAttach
-
110415107300 InsertInsert
-
123518325560 Adhesive PatchAdhesive Patch
-
136518326482 RH SupportRH Support
-
108a520000711 RH CapRH Cap
-
108b520000712 LH CapLH Cap
-
5a224061201 Flat WasherFlat Washer
-
A415129652 FrameTUNDRA SPORT ACE 137''FrameTUNDRA SPORT ACE 137''
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
-
F293150146 Henrob RivetHenrob Rivet
