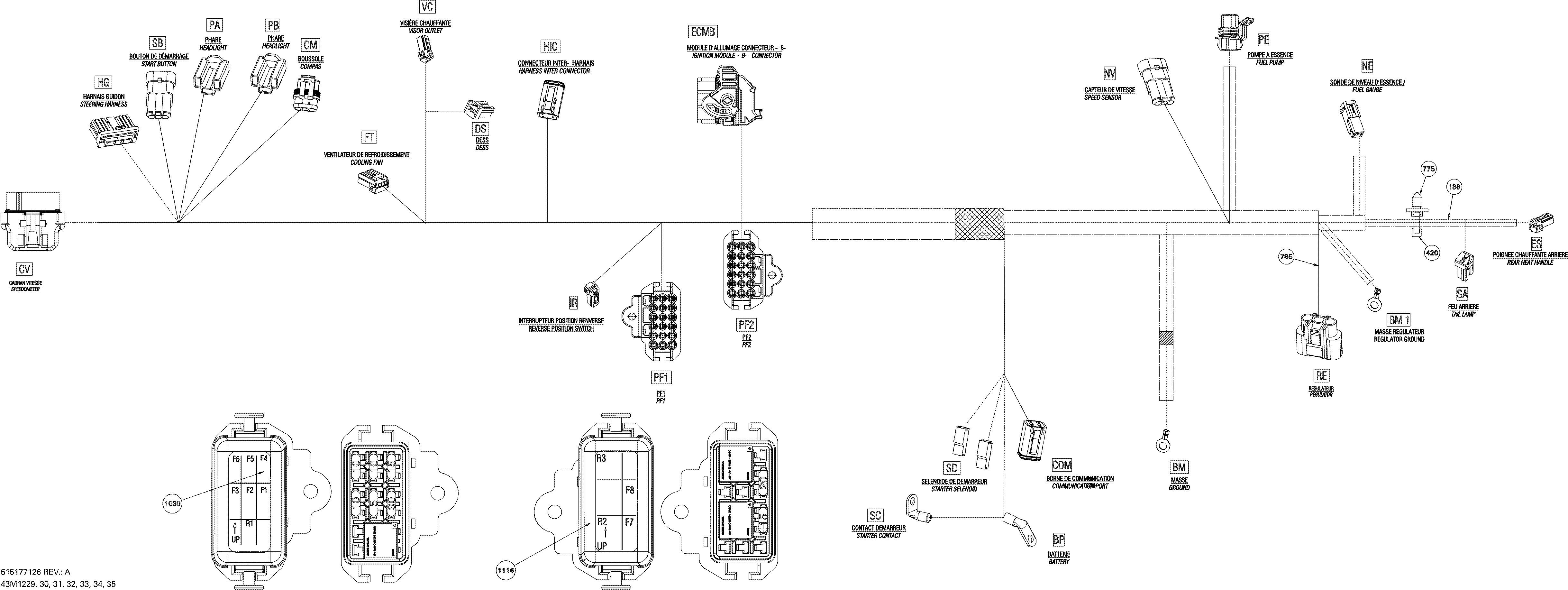

10- Electrical Harness для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1515177126 Main Harness Ass'y. Includes 1 to VCMain Harness Ass'y. Includes 1 to VC
-
188409902000 Tubing 12 mmTubing 12 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
264515175220 Tie RapTie Rap
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
775293730040 Mount DartMount Dart
-
1030515176998 Fuse Relay DecalFuse Relay Decal
-
1116515177015 Fuse Relay DecalFuse Relay Decal
-
BM278000992 Open BarrelOpen Barrel
-
BM1278000992 Open BarrelOpen Barrel
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM515176621 Wire SealWire Seal
-
CM278002307 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM278001665 Female TerminalFemale Terminal
-
COM710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CV515175812 PlugPlug
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710000399 Female HousingFemale Housing
-
CV710001131 Female TerminalFemale Terminal
-
DS515175231 Female TerminalFemale Terminal
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
ECMB710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
ECMB710001591 CoverCover
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ES515175231 Female TerminalFemale Terminal
-
ES515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT515175231 Female TerminalFemale Terminal
-
FT515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
HG515175231 Female TerminalFemale Terminal
-
HG515175282 Female TerminalFemale Terminal
-
HG515175349 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HIC278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
HIC278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
HIC278001665 Female TerminalFemale Terminal
-
IR515175231 Female TerminalFemale Terminal
-
IR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE409013700 PlugPlug
-
PE278001481 Female TerminalFemale Terminal
-
PE710000643 SealSeal
-
PE710001132 HousingHousing
-
PE710001133 LockLock
-
PF1278000218 Wire SealWire Seal
-
PF1278000216 Wire SealWire Seal
-
PF1278001065 Wire SealWire Seal
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF1710000918 Female TerminalFemale Terminal
-
PF1278002285 Fuse Box Ass'yFuse Box Ass'y
-
PF1278002286 Fuse Box CoverFuse Box Cover
-
PF1710001778 RelayRelay
-
PF1278002578 TerminalTerminal
-
PF2278000218 Wire SealWire Seal
-
PF2278000216 Wire SealWire Seal
-
PF2278001065 Wire SealWire Seal
-
PF2710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF2710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF2710000918 Female TerminalFemale Terminal
-
PF2278002285 Fuse Box Ass'yFuse Box Ass'y
-
PF2278002286 Fuse Box CoverFuse Box Cover
-
PF2710001778 RelayRelay
-
PF2710001778 RelayRelay
-
PF2278002578 TerminalTerminal
-
RE710000877 TerminalTerminal
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000881 SealSeal
-
RE710000882 CapCap
-
SA515175231 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SB710000568 HousingHousing
-
SB515176164 Male TerminalMale Terminal
-
SB515176621 Wire SealWire Seal
-
SC515175919 Protector CapProtector Cap
-
SD409010100 Female TerminalFemale Terminal
-
SD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
VC515175231 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
