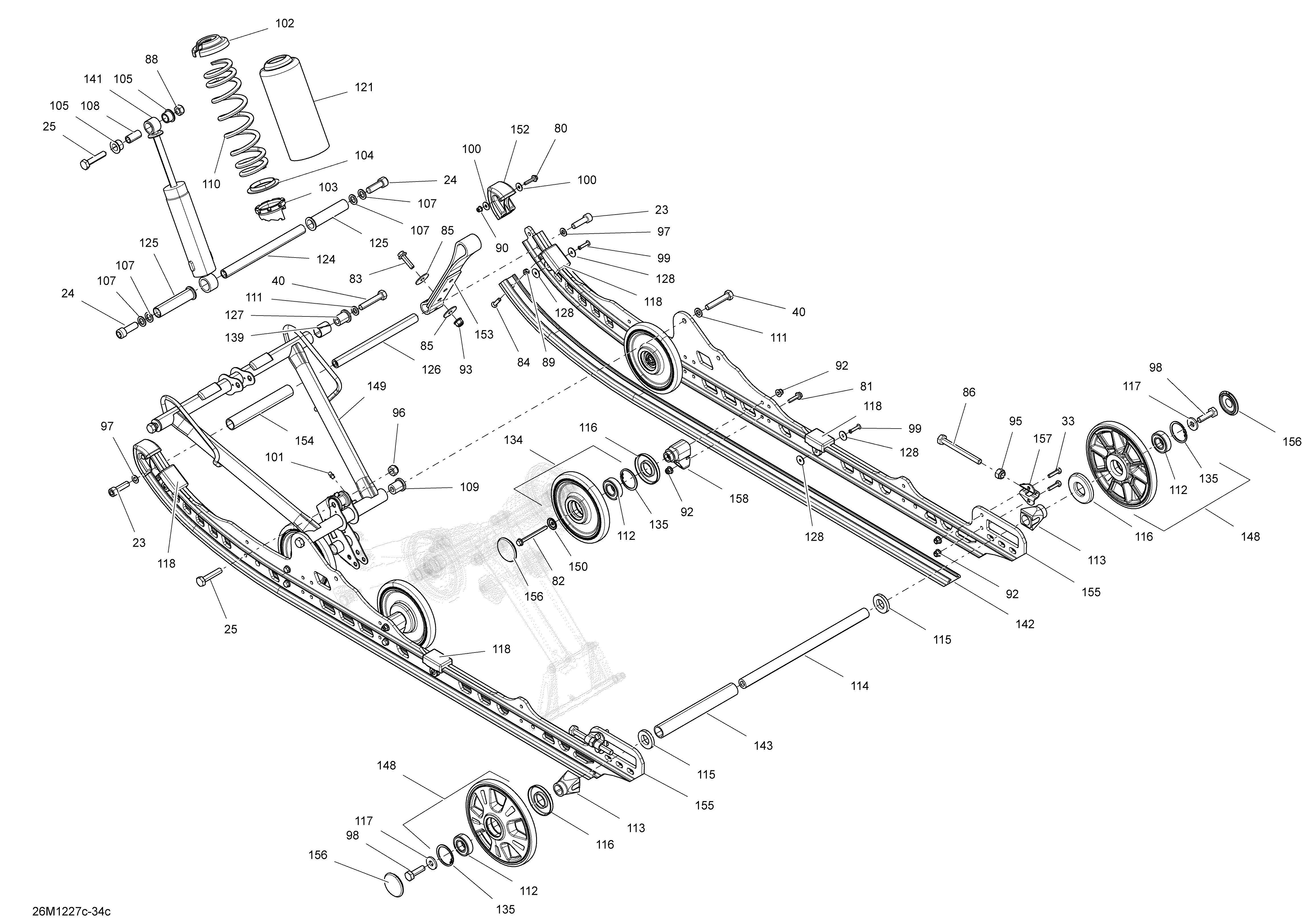

08- Rear Suspension Base, Front Arm для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
23205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
24205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
25207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
33250000479 Hex. Screw Cap Full Thread M6 X 25Hex. Screw Cap Full Thread M6 X 25
-
40207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
80207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
81250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
82250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
83207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
84208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
85224081301 Flat WasherFlat Washer
-
86230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
88233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
89232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
92250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
92233261416 Elastic Flanged Nut M6. TensionerElastic Flanged Nut M6. Tensioner
-
93233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
95250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
96233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
97503189564 WasherWasher
-
98250000019 Hex. Screw With NylonHex. Screw With Nylon
-
99293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
100391301600 WasherWasher
-
101408200700 Grease FittingGrease Fitting
-
102706200881 Spring StopperSpring Stopper
-
103505070150 Adjustment CamAdjustment Cam
-
104503191872 Spring GuideSpring Guide
-
105503189117 CushionCushion
-
107503189276 WasherWasher
-
108503189282 BushingBushing
-
109503189324 CushionCushion
-
110503191880 SpringSpring
-
111503192496 WasherWasher
-
111503189564 WasherWasher
-
112503190396 Ball BearingBall Bearing
-
113503190428 Rear Wheel SpacerRear Wheel Spacer
-
114503190429 Rear AxleRear Axle
-
115503190432 WasherWasher
-
116503190434 Labyrinth SealLabyrinth Seal
-
117503190439 WasherWasher
-
118503190576 Rubber StopperRubber Stopper
-
121503191126 ProtectorProtector
-
124503191258 Center Shock ShaftCenter Shock Shaft
-
125503191259 Center BushingCenter Bushing
-
126503191260 Axle StrapAxle Strap
-
127503191262 BushingBushing
-
128503191273 WasherWasher
-
134503191311 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
135415129371 Retaining RingRetaining Ring
-
139503191556 Extended BushingExtended Bushing
-
141503192266 Center ShockCenter Shock
-
142503191619 SliderSlider
-
143503191108 SpacerSpacer
-
148503191742 Wheel 180 mm Ass'y, BlackWheel 180 mm Ass'y, Black
-
149503191752 Front ArmFront Arm
-
150503191820 Wheel Cup M6Wheel Cup M6
-
152503192299 Runner ProtectorRunner Protector
-
153503192360 Stopper StrapStopper Strap
-
154503192678 SpacerSpacer
-
155503192902 Runner 137''Runner 137''
-
156503192771 Wheel CapWheel Cap
-
157503192814 TensionerTensioner
-
158503193082 Casted SupportCasted Support
