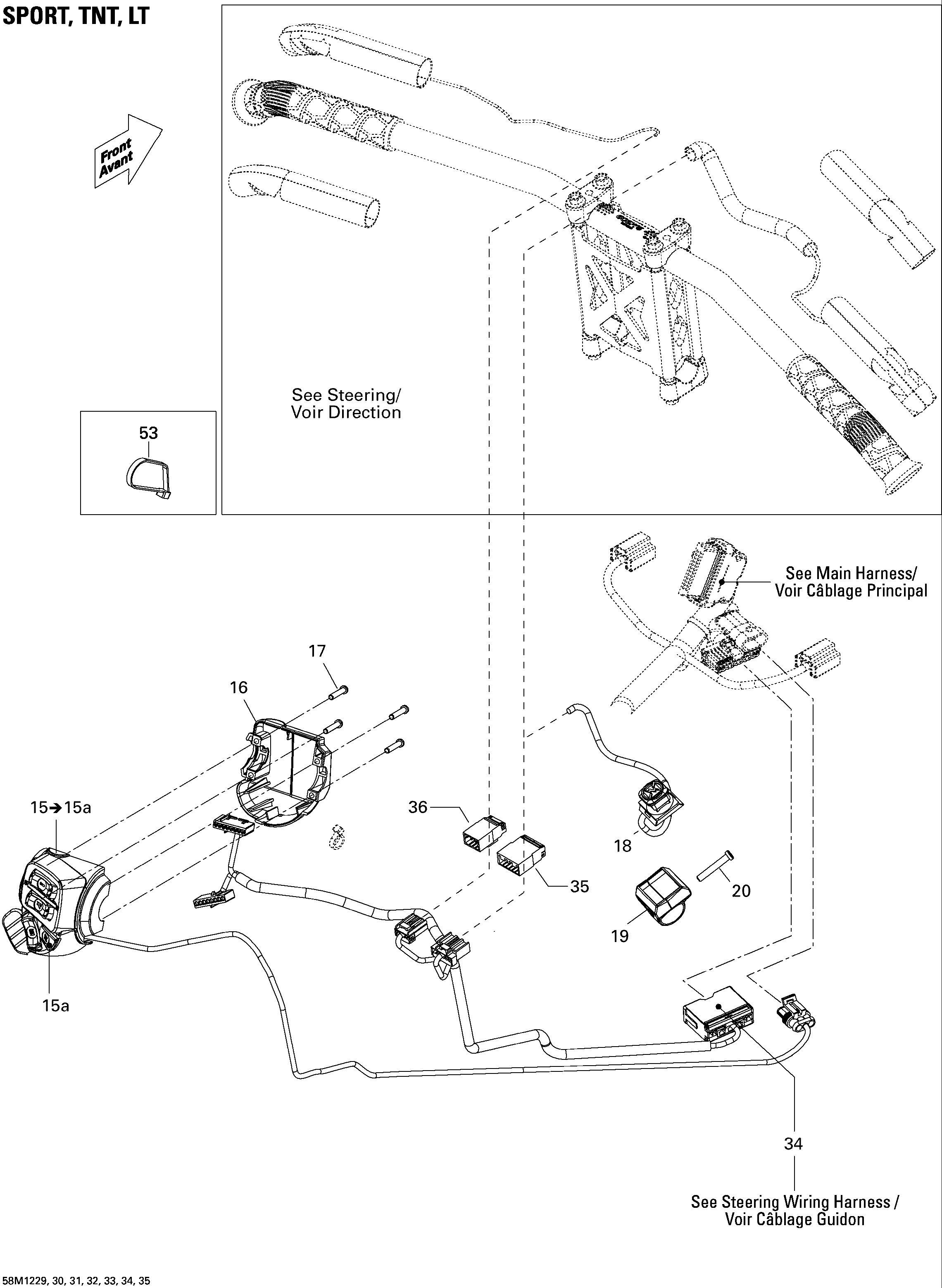

10- Electrical Accessories, Steering для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
15515177019 LH Housing. Includes 15 to 15aLH Housing. Includes 15 to 15a
-
15a515176088 Start/RER ButtonStart/RER Button
-
16515175926 Housing Switch PlateHousing Switch Plate
-
17250000263 Torx Screw #8-18Torx Screw #8-18
-
18515177061 Kill SwitchKill Switch
-
19515176825 Kill Switch SupportKill Switch Support
-
20250000263 Torx Screw #8-18Torx Screw #8-18
-
34515176867 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
35515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
36515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
53293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
53293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53293750009 Tie-Rap 173 mmTie-Rap 173 mm
