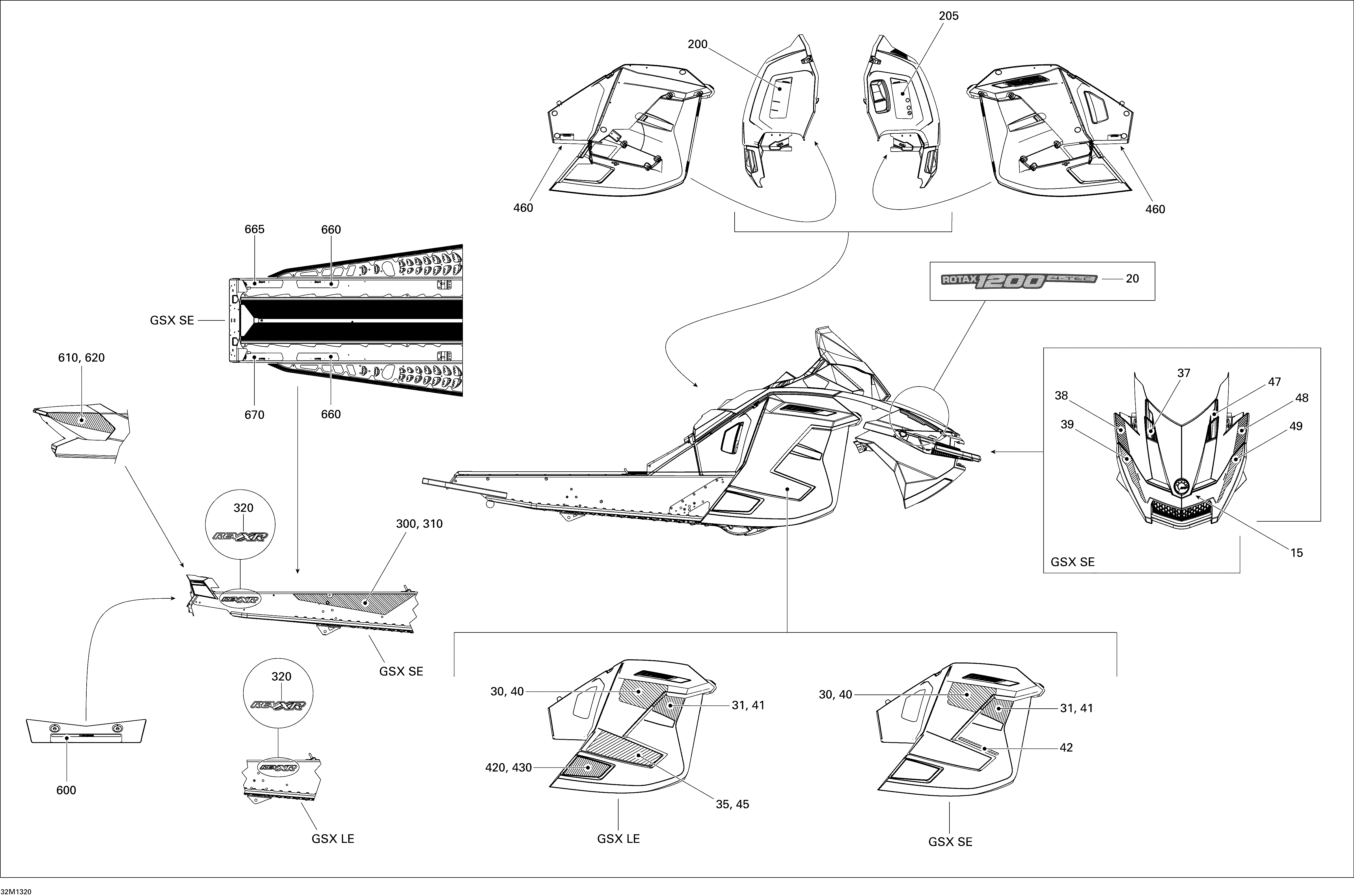

09- Decals LE для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005381 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
30516005462 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
31516005466 RH Front Upper Side DecalRH Front Upper Side Decal
-
35516005464 RH Side DecalRH Side Decal
-
40516005461 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
41516005465 LH Front Upper Side DecalLH Front Upper Side Decal
-
45516005463 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516005458 Decal, REV XRDecal, REV XR
-
420516005468 RH Lower DecalRH Lower Decal
-
430516005467 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516005268 Warning Decal, TrackWarning Decal, Track
-
610516005470 RH Cover DecalRH Cover Decal
-
620516005469 LH Cover DecalLH Cover Decal
