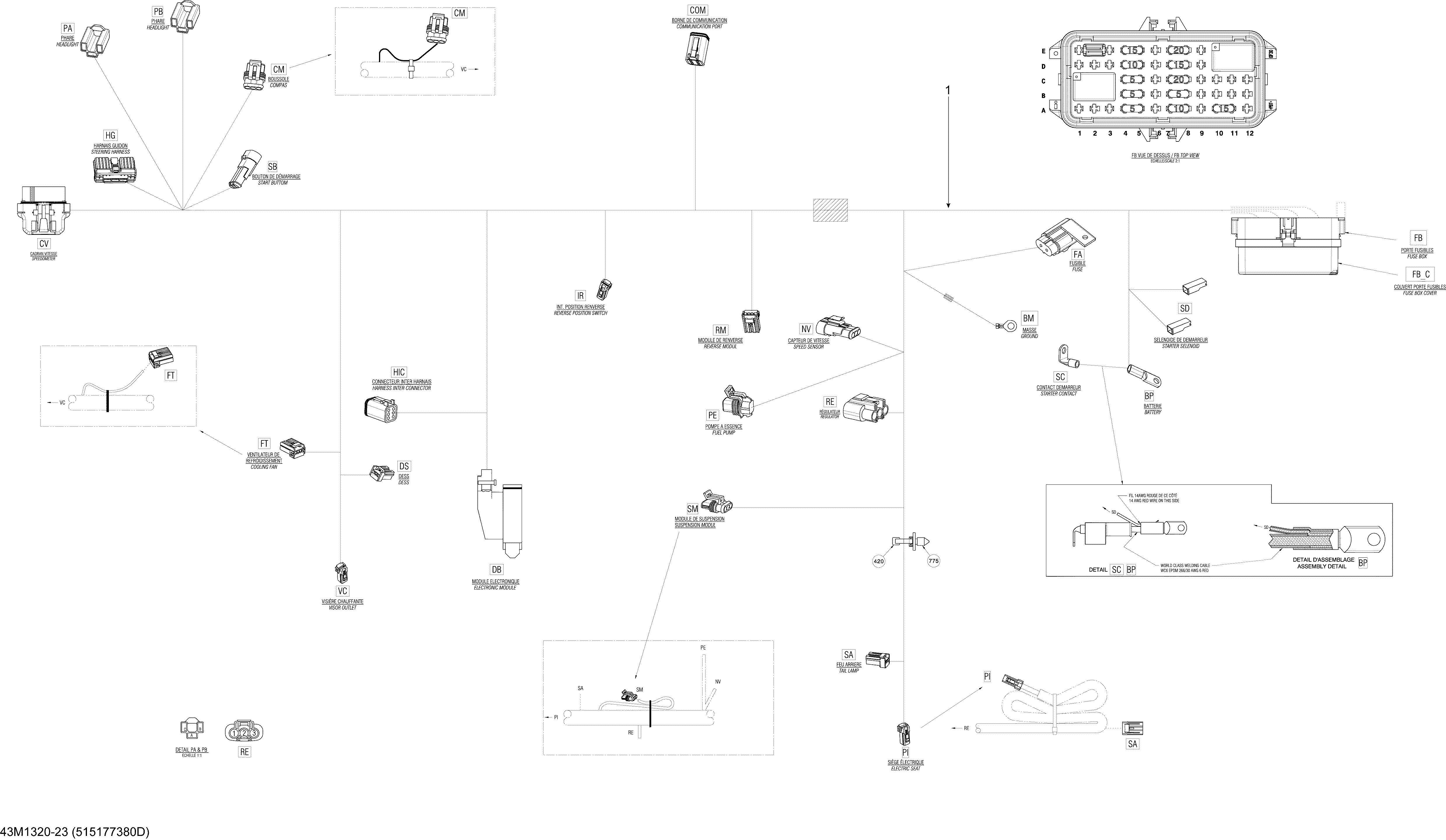

10- Electrical Harness для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
1515177380 Wiring Harness. Includes 1 to VCWiring Harness. Includes 1 to VC
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
775293730040 Mount DartMount Dart
-
BM278000992 Open BarrelOpen Barrel
-
BP515177174 TerminalTerminal
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM710001340 Female TerminalFemale Terminal
-
CM515176621 Wire SealWire Seal
-
COM278000632 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
CV515175812 PlugPlug
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710000399 Female HousingFemale Housing
-
CV710001131 Female TerminalFemale Terminal
-
DB278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
DB515175886 SealSeal
-
DB515175883 LatchLatch
-
DB515175884 LockLock
-
DB515175885 CoverCover
-
DB515177481 Female TerminalFemale Terminal
-
DS515175231 Female TerminalFemale Terminal
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
FA410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
FA278001326 Fuse Holder CapFuse Holder Cap
-
FA278001325 Fuse HolderFuse Holder
-
FA710000113 Female TerminalFemale Terminal
-
FA278000805 CushionCushion
-
FB278000999 Wire SealWire Seal
-
FB415128501 SealSeal
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
FB710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
FB710000660 Fuse Box Ass'yFuse Box Ass'y
-
FB710000781 Fuse PullerFuse Puller
-
FB710000840 CapCap
-
FB515177009 Female TerminalFemale Terminal
-
FB515177012 Female TerminalFemale Terminal
-
FB278002822 Relay 30 Amp.Relay 30 Amp.
-
FB278002822 Relay 30 Amp.Relay 30 Amp.
-
FB_C710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
FB_C710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB_C710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB_C710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
FB_C278002172 FoamFoam
-
FB_C710001026 Fuse CoverFuse Cover
-
FB_C516005571 Relay Fuse DecalRelay Fuse Decal
-
FT515175231 Female TerminalFemale Terminal
-
FT515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
HG515175231 Female TerminalFemale Terminal
-
HG515175282 Female TerminalFemale Terminal
-
HG515175349 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HIC278000632 Female TerminalFemale Terminal
-
HIC278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
HIC278000737 Male Lock, 6 CircuitsMale Lock, 6 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
IR515175231 Female TerminalFemale Terminal
-
IR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE278001481 Female TerminalFemale Terminal
-
PE278001482 SealSeal
-
PE710001132 HousingHousing
-
PE710001133 LockLock
-
PI515175231 Female TerminalFemale Terminal
-
PI515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
RE710000877 TerminalTerminal
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000881 SealSeal
-
RE710000882 CapCap
-
RM515175231 Female TerminalFemale Terminal
-
RM515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SB710000568 HousingHousing
-
SB515176164 Male TerminalMale Terminal
-
SB515176621 Wire SealWire Seal
-
SC710000506 Open BarellOpen Barell
-
SC515175919 Protector CapProtector Cap
-
SD409010100 Female TerminalFemale Terminal
-
SD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SM278001014 Female TerminalFemale Terminal
-
SM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SM278001013 Wire SealWire Seal
-
VC515175231 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
