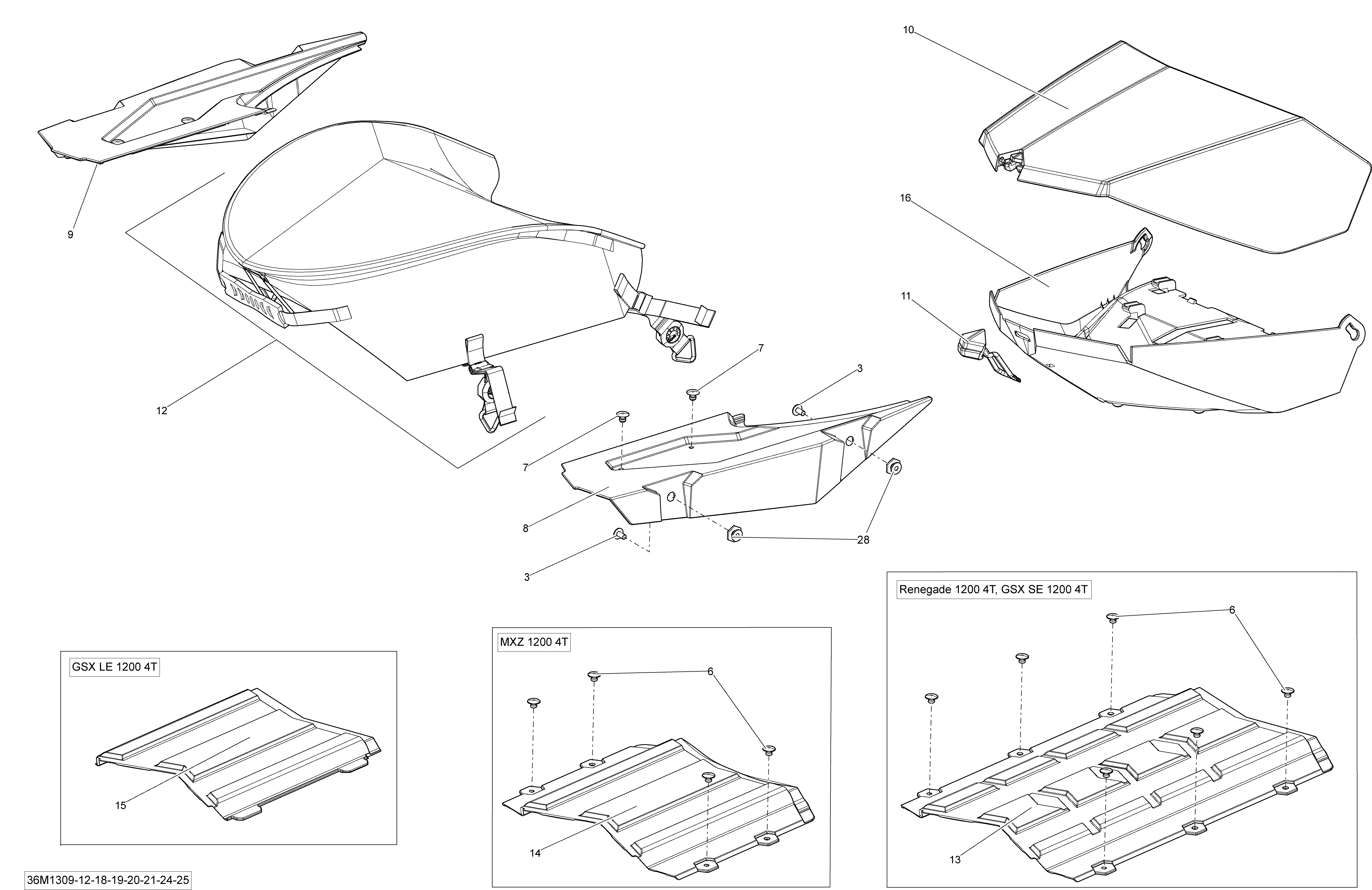

09- Luggage Rack LE для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
3250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8511000483 RH Tunnel RailRH Tunnel Rail
-
9511000484 LH Tunnel RailLH Tunnel Rail
-
10511000568 Trunk CoverTrunk Cover
-
11511000528 BracketBracket
-
12860200412 BagBag
-
15511000592 Radiator CoverRadiator Cover
-
16511000757 TrunkTrunk
-
28520000889 Anchor LinkAnchor Link
