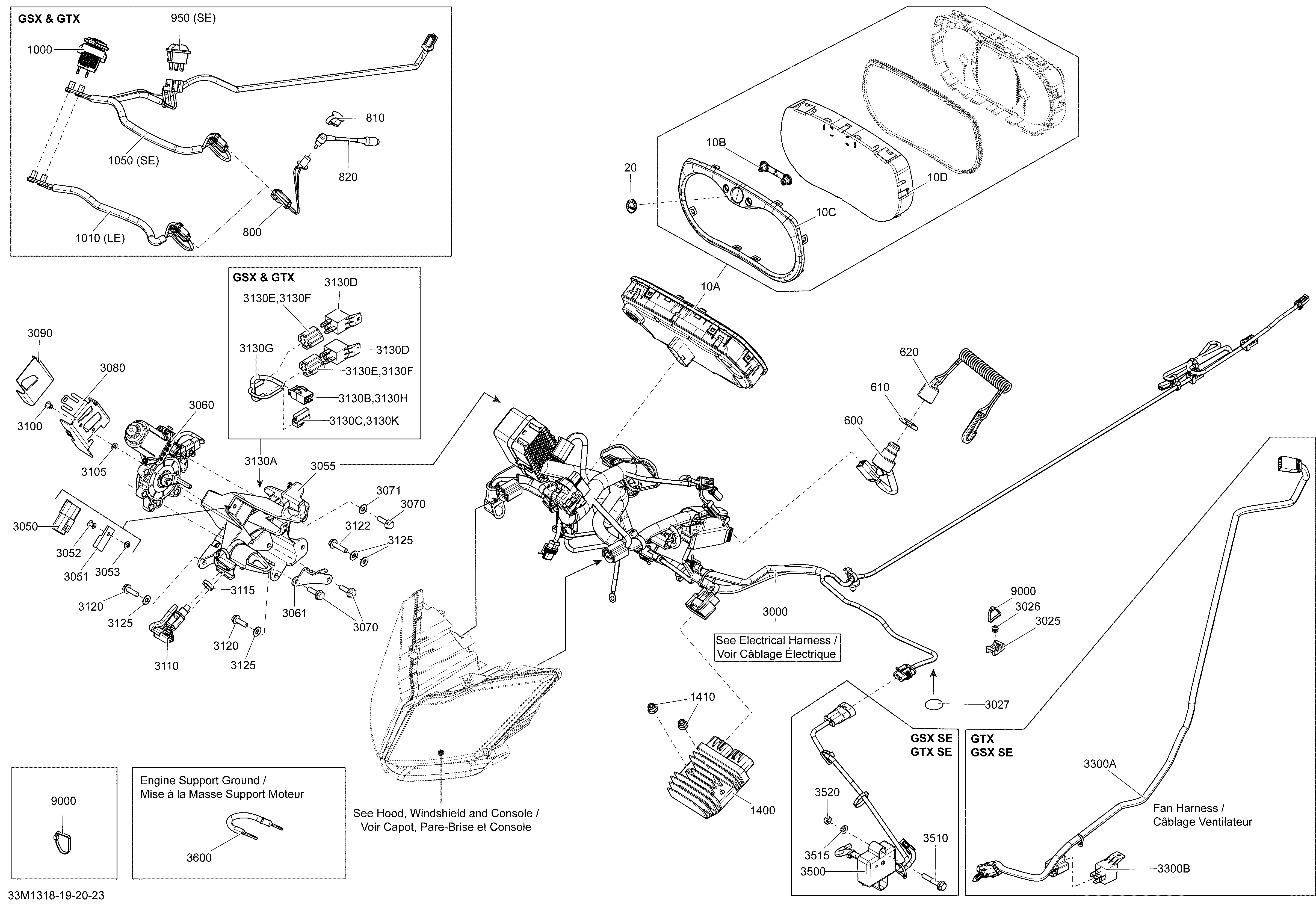

10- Electrical System для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
10a515177421 Speedometer. Includes 10A to 10DSpeedometer. Includes 10A to 10D
-
10b415129355 Speedometer ButtonSpeedometer Button
-
10c415129348 Gauge RingGauge Ring
-
10d415129349 LensLens
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515177249 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515177057 DESS CapDESS Cap
-
800515177187 Visor HarnessVisor Harness
-
810572103300 CapCap
-
820515175851 ExtensionExtension
-
950515176844 Rocker Switch Ass'y. SERocker Switch Ass'y. SE
-
1000710001248 Outlet DCOutlet DC
-
1010515177188 Harness Accessories. LEHarness Accessories. LE
-
1050515177189 Seat Harness. SESeat Harness. SE
-
1400515177325 RegulatorRegulator
-
1410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3000515177380 Wiring HarnessWiring Harness
-
3025515176795 Clip. SEClip. SE
-
3026390909200 Avex Rivet. SEAvex Rivet. SE
-
3027518325560 Adhesive Patch. LEAdhesive Patch. LE
-
3050710003006 HousingHousing
-
3051270000141 ClipClip
-
3052390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3053234051410 Flat Washer M5Flat Washer M5
-
3055515177428 Multifunction PlateMultifunction Plate
-
3060515177273 Electrical Motor Ass'yElectrical Motor Ass'y
-
3061515177039 PlatePlate
-
3070207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3071224061121 Flat WasherFlat Washer
-
3080515177549 Fuse SupportFuse Support
-
3090515176637 ProtectorProtector
-
3100390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3105234051410 Flat Washer M5Flat Washer M5
-
3110515176472 Switch Ass'ySwitch Ass'y
-
3115250000373 Brass NutBrass Nut
-
3120210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3125250200039 Flat WasherFlat Washer
-
3130A515176760 Reverse Cable. Includes 3130A to 3130KReverse Cable. Includes 3130A to 3130K
-
3130B515175232 Male TerminalMale Terminal
-
3130C515175282 Female TerminalFemale Terminal
-
3130D410113200 RelayRelay
-
3130E409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
3130F561503100 Female TerminalFemale Terminal
-
3130G415079900 Tubing 10 mmTubing 10 mm
-
3130H515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3130K515176550 Female Terminal HousingFemale Terminal Housing
-
3300a515177105 Fan Harness. SE, Includes 3300A to 3300BFan Harness. SE, Includes 3300A to 3300B
-
3300b515177041 Relay. SERelay. SE
-
3500515177234 Compressor Module. SECompressor Module. SE
-
3510207663544 Hex. Flanged Screw M6 X 35. SEHex. Flanged Screw M6 X 35. SE
-
3515234061410 Flat Washer 6 mm. SEFlat Washer 6 mm. SE
-
3520232561414 Elastic Stop Nut M6. SEElastic Stop Nut M6. SE
-
3600515177289 Fil de MasseFil de Masse
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
