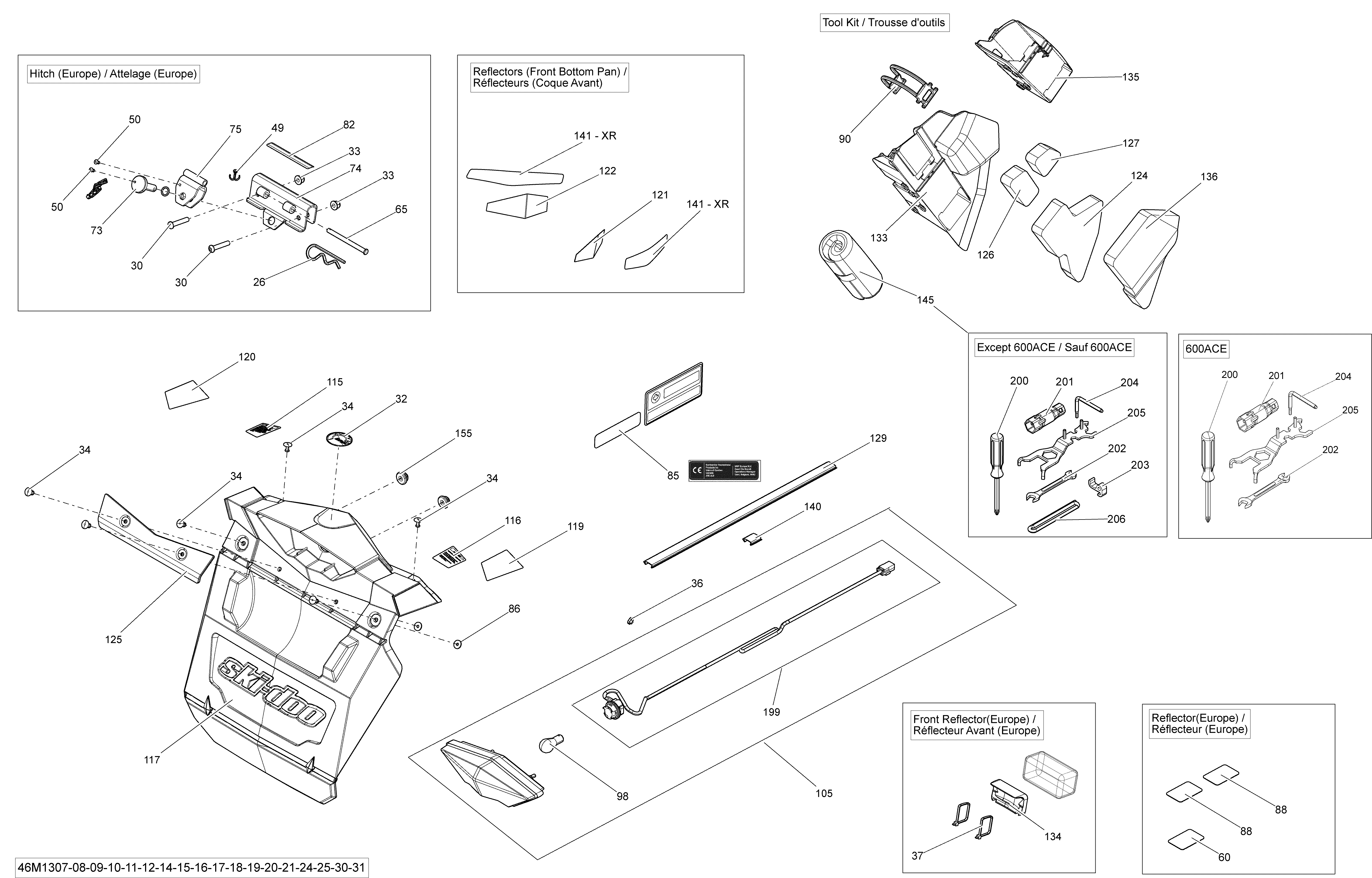

09- Utilities для BRP Ski-Doo GSX LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
32219903947 BRP Logo 48MMBRP Logo 48MM
-
34293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
37293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
60415037900 Reflector, White. EuropeReflector, White. Europe
-
85516005873 ''CE'' Decal. Europe''CE'' Decal. Europe
-
88520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
90520000528 LatchLatch
-
98520000758 BulbBulb
-
98520000758 BulbBulb
-
105520000587 Rear Light. 120''Rear Light. 120''
-
105520000679 Rear Light Ass'y. Except 120''Rear Light Ass'y. Except 120''
-
115516005590 Security Decal, Track, EnglishSecurity Decal, Track, English
-
116516005591 Security Decal, Cargo, EnglishSecurity Decal, Cargo, English
-
117520000704 Snow Guard. GSX LESnow Guard. GSX LE
-
117520001034 Snow Guard. GSX SESnow Guard. GSX SE
-
119520000706 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
119520001162 RH Rear Reflector. InternationalRH Rear Reflector. International
-
120520000707 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
120520001161 LH Rear Reflector. InternationalLH Rear Reflector. International
-
125520000751 ReinforcementReinforcement
-
133520000720 Tool Kit RackTool Kit Rack
-
134520000871 Reflector Support. EuropeReflector Support. Europe
-
140520000829 Radiator Trim. 600 ACE, 1200 4TRadiator Trim. 600 ACE, 1200 4T
-
141520001234 Front Reflector XR. XRFront Reflector XR. XR
-
145529000066 Tool Kit. 600 ACE, 1200 4TTool Kit. 600 ACE, 1200 4T
-
155705003666 Rubber GrommetRubber Grommet
-
199520000677 Wiring HarnessWiring Harness
-
199520000680 Wiring Harness Ass'yWiring Harness Ass'y
-
200529000004 Screw Driver. 600 ACE, 1200 4TScrew Driver. 600 ACE, 1200 4T
-
201529000046 Set Key 16 / 21 MM. 600 ACE, 1200 4TSet Key 16 / 21 MM. 600 ACE, 1200 4T
-
202529000002 Fork Wrench, 10/13 mm. 600 ACE, 1200 4TFork Wrench, 10/13 mm. 600 ACE, 1200 4T
-
204520001142 Spacing Tool. 600 ACE, 1200 4TSpacing Tool. 600 ACE, 1200 4T
-
205520000988 Wrench Suspension. 600 ACE, 1200 4TWrench Suspension. 600 ACE, 1200 4T
