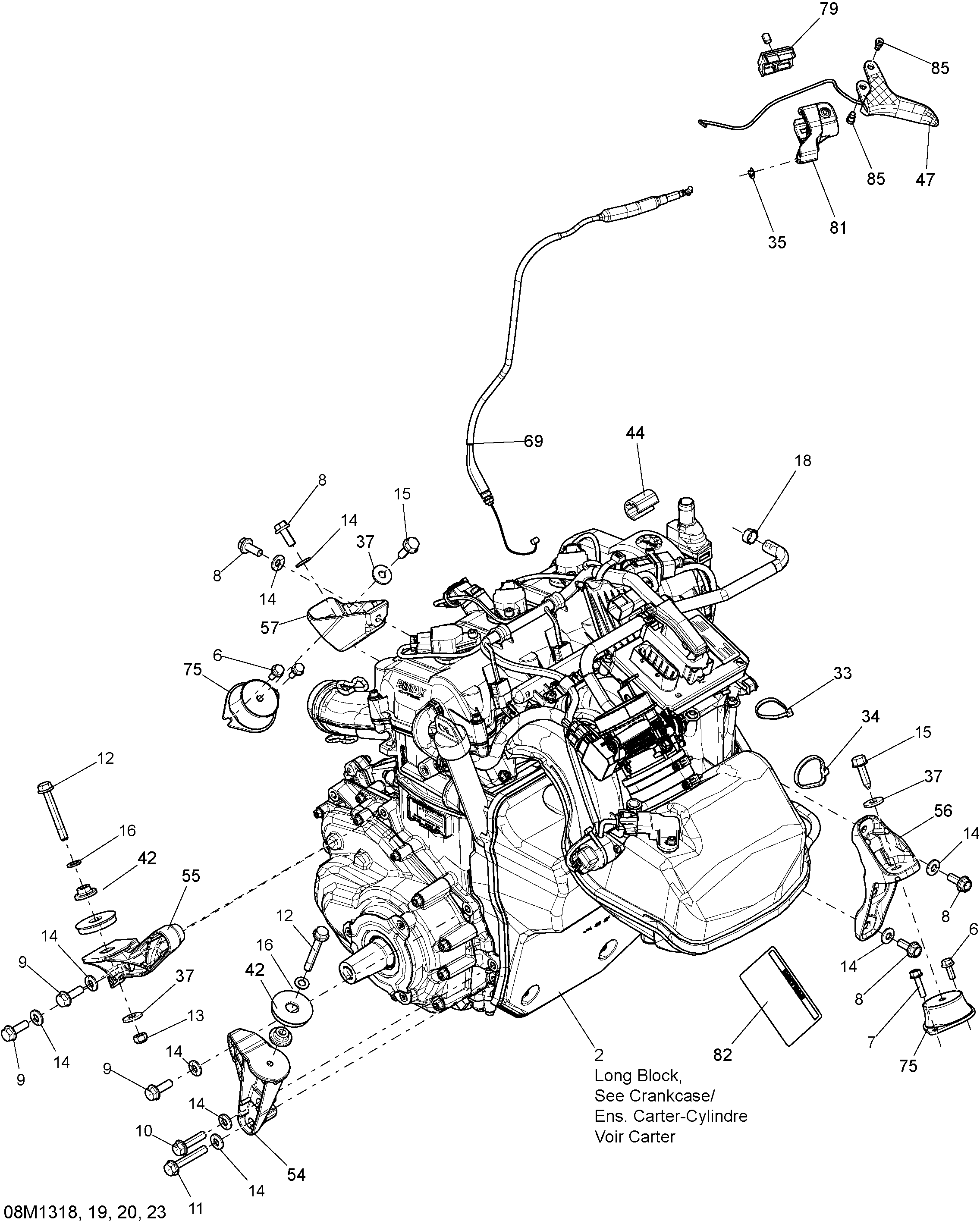

01- Engine And Engine Support для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013
-
№АртикулНазвание
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
9207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
11207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
12207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
13232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
14250200146 Conical Spring Washer M8Conical Spring Washer M8
-
15250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
16250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
18293650046 Oetiker ClampOetiker Clamp
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414274500 CirclipCirclip
-
37503183200 Washer, YellowWasher, Yellow
-
42512060244 StopperStopper
-
43512060285 SpacerSpacer
-
44512060313 ProtectorProtector
-
47512060616 Throttle Handle. ADRThrottle Handle. ADR
-
47512060618 Throttle Handle. XThrottle Handle. X
-
54512060591 Rear Support, PTORear Support, PTO
-
55512060593 Front Support, PTOFront Support, PTO
-
56512060594 Rear Support, MAGRear Support, MAG
-
57512060596 Front Support, MAGFront Support, MAG
-
69512060673 Throttle CableThrottle Cable
-
75512060729 Rubber MountRubber Mount
-
79512060859 Upper HousingUpper Housing
-
81512060860 Lower HousingLower Housing
-
82516005521 Check Oil DecalCheck Oil Decal
-
85732601143 Flanged ScrewFlanged Screw
