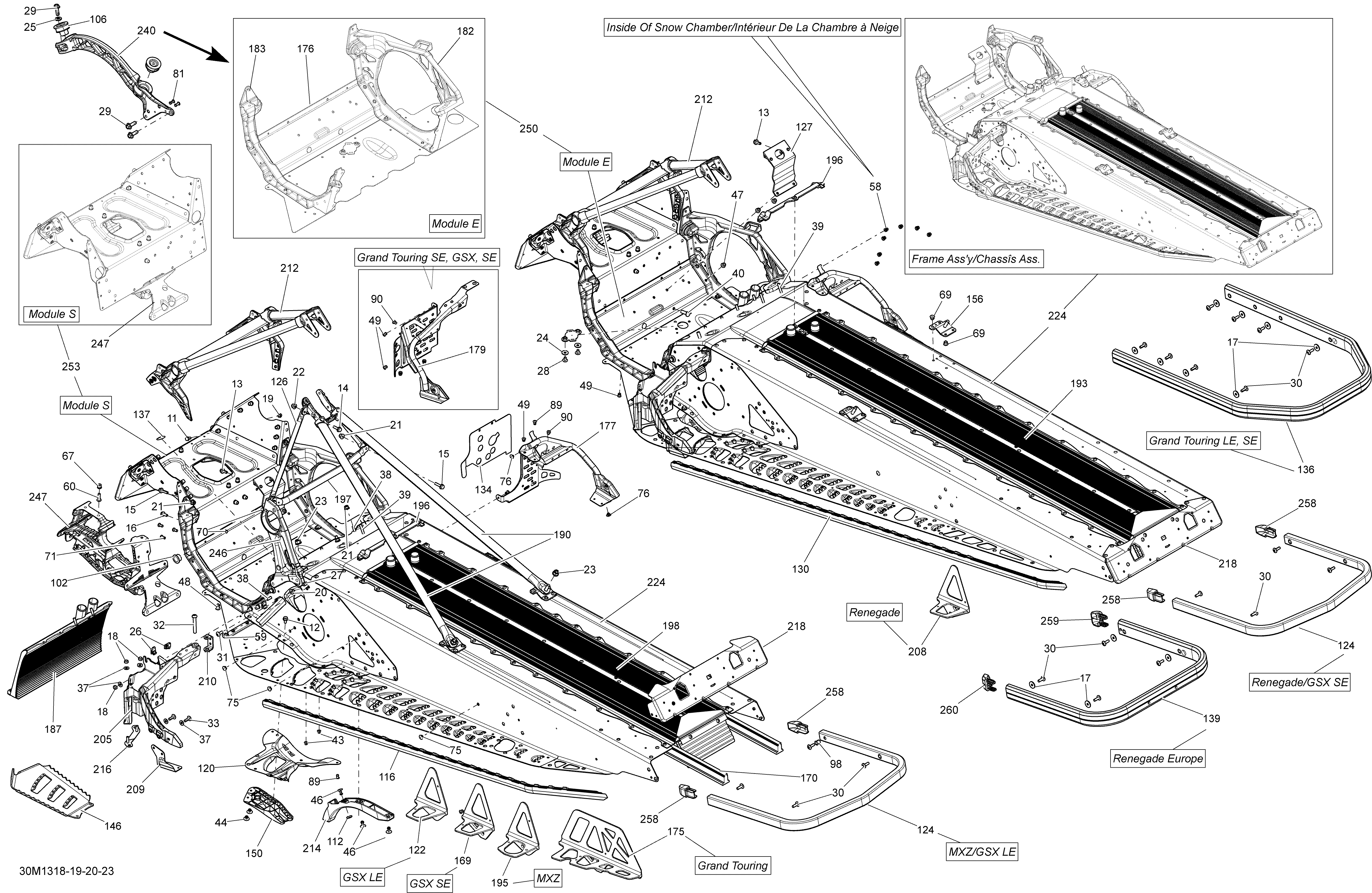

09- Frame для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013
-
№АртикулНазвание
-
11207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
12207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
16210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17224061201 Flat WasherFlat Washer
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
20233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24234062410 Flat Washer 6 mmFlat Washer 6 mm
-
25234281474 Conical Spring Washer M8Conical Spring Washer M8
-
26250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
27250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
28250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
29250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
30250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
31250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
32250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
33250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
37250200039 Flat WasherFlat Washer
-
38250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
39250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
40250300038 Clinch StudClinch Stud
-
43293150102 Rivet 3/16Rivet 3/16
-
44293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
46293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
47293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
48293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
49293150144 Stavex RivetStavex Rivet
-
58293150146 Henrob RivetHenrob Rivet
-
59293150147 Hemlock RivetHemlock Rivet
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
67233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
70293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
71293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
75293730047 Dart 8 mm, BlackDart 8 mm, Black
-
76293730042 DartDart
-
81390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
89390909100 Avex RivetAvex Rivet
-
90390909200 Avex RivetAvex Rivet
-
98415107300 InsertInsert
-
102505073317 Leg CushionLeg Cushion
-
106512060295 Rubber MountRubber Mount
-
112517124300 WasherWasher
-
120518324874 RH ReinforcementRH Reinforcement
-
120518324875 LH ReinforcementLH Reinforcement
-
124518325481 Rear Bumper. MXZ, GSX, RenegadeRear Bumper. MXZ, GSX, Renegade
-
126518325114 Upper Column SupportUpper Column Support
-
127518325371 MAG Engine SupportMAG Engine Support
-
130518325377 RH Roller. RenegadeRH Roller. Renegade
-
130518325378 LH Roller. RenegadeLH Roller. Renegade
-
134518325418 Heat ShieldHeat Shield
-
137518325560 Adhesive PatchAdhesive Patch
-
139518326414 Rear Bumper. Renegade EuropeRear Bumper. Renegade Europe
-
150518325782 RH DeflectorRH Deflector
-
150518325783 LH DeflectorLH Deflector
-
156518325973 RH Rear BaseRH Rear Base
-
156518325974 LH Rear BaseLH Rear Base
-
170860200267 Tunnel Protector Kit. Track 15X137X1.2IRTunnel Protector Kit. Track 15X137X1.2IR
-
176518326198 Front MemberFront Member
-
182518326328 RH Side MemberRH Side Member
-
183518326330 LH Side MemberLH Side Member
-
187518326489 Front Radiator Ass'yFront Radiator Ass'y
-
190518326559 Rear MemberRear Member
-
193518326641 Rear Radiator Ass'yRear Radiator Ass'y
-
196518326656 SealSeal
-
197518326657 Center Column SupportCenter Column Support
-
205518326820 LH StirupLH Stirup
-
208518326954 RH Suspension Bracket. RenegadeRH Suspension Bracket. Renegade
-
208518326955 LH Suspension Bracket. RenegadeLH Suspension Bracket. Renegade
-
209518326960 SupportSupport
-
210518326961 U-AttachU-Attach
-
212518326970 Front MemberFront Member
-
214518326973 Front ProtectorFront Protector
-
216518326986 AttachAttach
-
218518327105 Rear CapRear Cap
-
224415129763 Frame Renegade XR, Black. RenegadeFrame Renegade XR, Black. Renegade
-
240518327392 Brace Ass'yBrace Ass'y
-
246518327460 Pulley SupportPulley Support
-
247518327475 Front Suspension SupportFront Suspension Support
-
250518327485 E ModuleE Module
-
253518327495 Cross Member S Module. MXZ, GSX LE, RenegadeCross Member S Module. MXZ, GSX LE, Renegade
-
258520000840 Cap, BlackCap, Black
-
259520000965 RH CapRH Cap
-
260520000964 LH CapLH Cap
