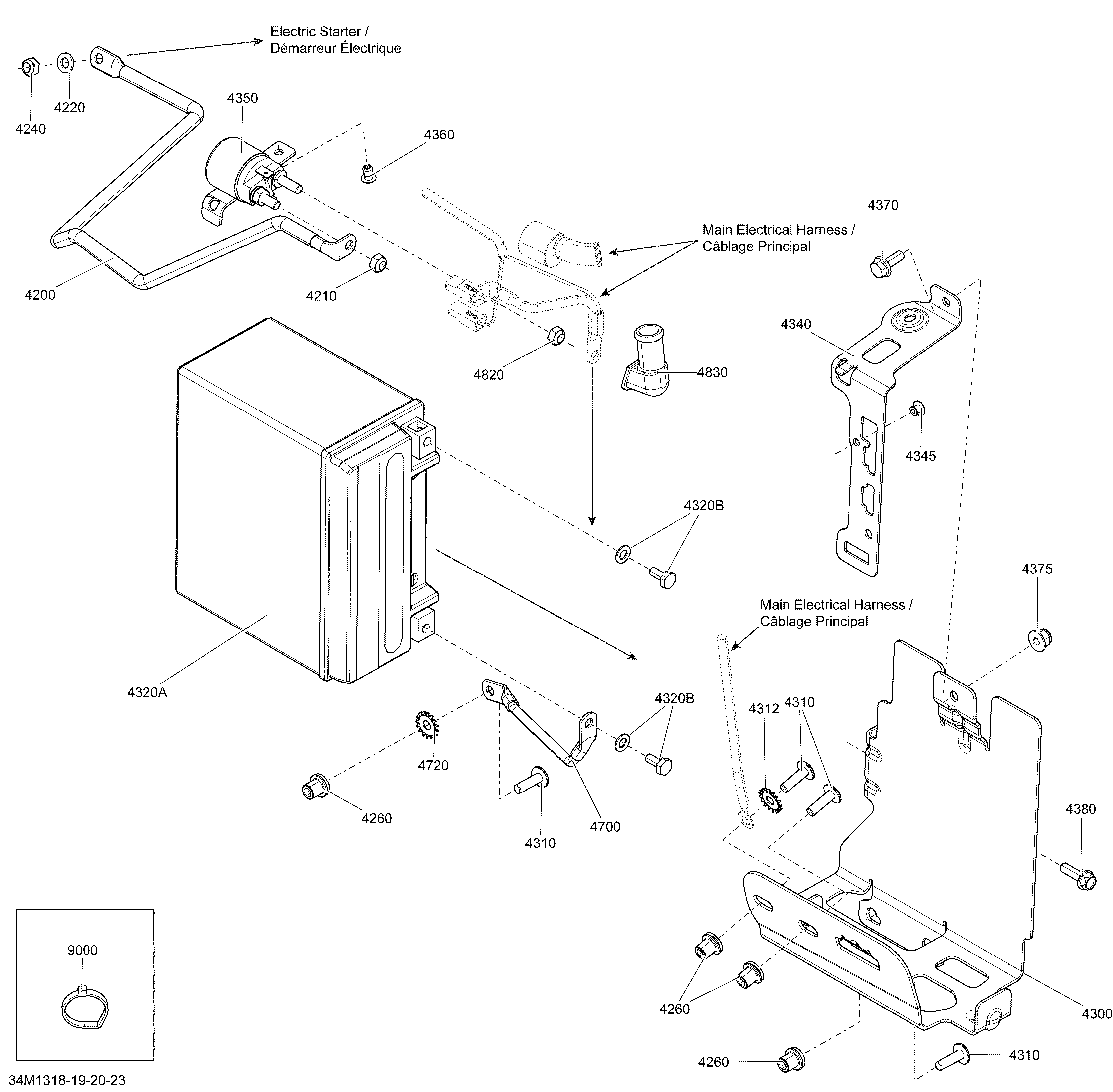

10- Battery And Starter для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013
-
№АртикулНазвание
-
4200515176557 Battery WireBattery Wire
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4260415107300 InsertInsert
-
4300515176970 Battery SupportBattery Support
-
4310250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4320a296000295 Battery 18 Amp. Includes 4320A to 4320BBattery 18 Amp. Includes 4320A to 4320B
-
4320B295500849 Battery Fastener KitBattery Fastener Kit
-
4340515177008 Battery StripBattery Strip
-
4345390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4350515176501 Starter RelayStarter Relay
-
4360390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4375233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4380210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4700515175749 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
