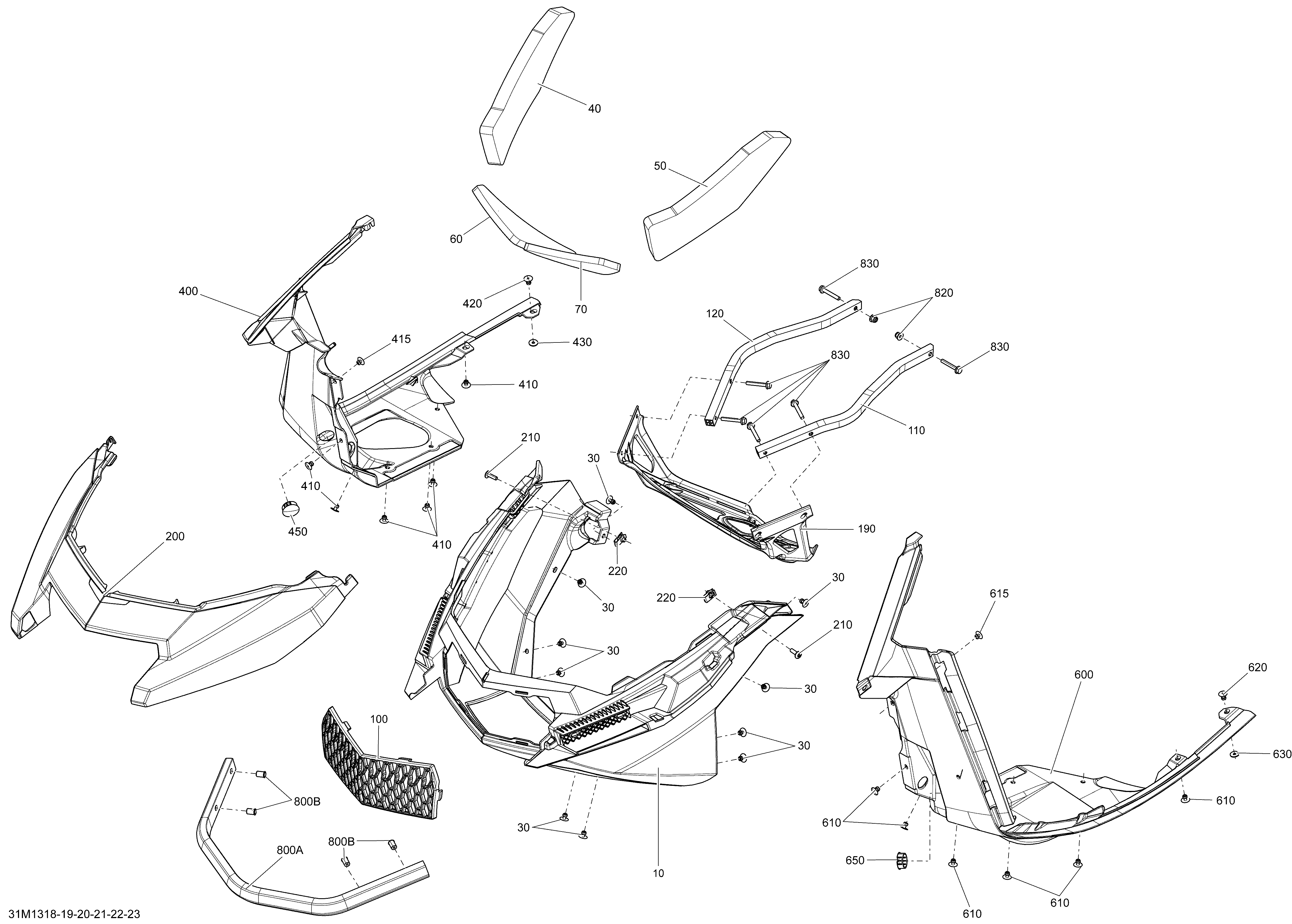

09- Bottom Pan для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013
-
№АртикулНазвание
-
10502006873 Front Bottom PanFront Bottom Pan
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007216 RH Upper Hull Foam. TNTRH Upper Hull Foam. TNT
-
40502007217 RH Upper Hull Foam. AdrenalineRH Upper Hull Foam. Adrenaline
-
50502007218 LH Upper Hull Foam. TNTLH Upper Hull Foam. TNT
-
50502007219 LH Upper Hull Foam. AdrenalineLH Upper Hull Foam. Adrenaline
-
60502007316 RH Middle Hull FoamRH Middle Hull Foam
-
70502007317 LH Middle Hull FoamLH Middle Hull Foam
-
100502006887 Botton Pan GrillBotton Pan Grill
-
110502006925 LH SupportLH Support
-
120502006926 RH SupportRH Support
-
190502006938 BracketBracket
-
200502006898 Bottom Pan CapBottom Pan Cap
-
210250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
220250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
400502006877 RH Bottom PanRH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
415293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
420293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430517124300 WasherWasher
-
450414916600 Nylon CapNylon Cap
-
600502006878 LH Bottom PanLH Bottom Pan
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
615293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
620293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
630517124300 WasherWasher
-
650414916600 Nylon CapNylon Cap
-
800a502006939 Bumper. Includes 800A to 800BBumper. Includes 800A to 800B
-
800b415107300 InsertInsert
-
820233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
830207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
