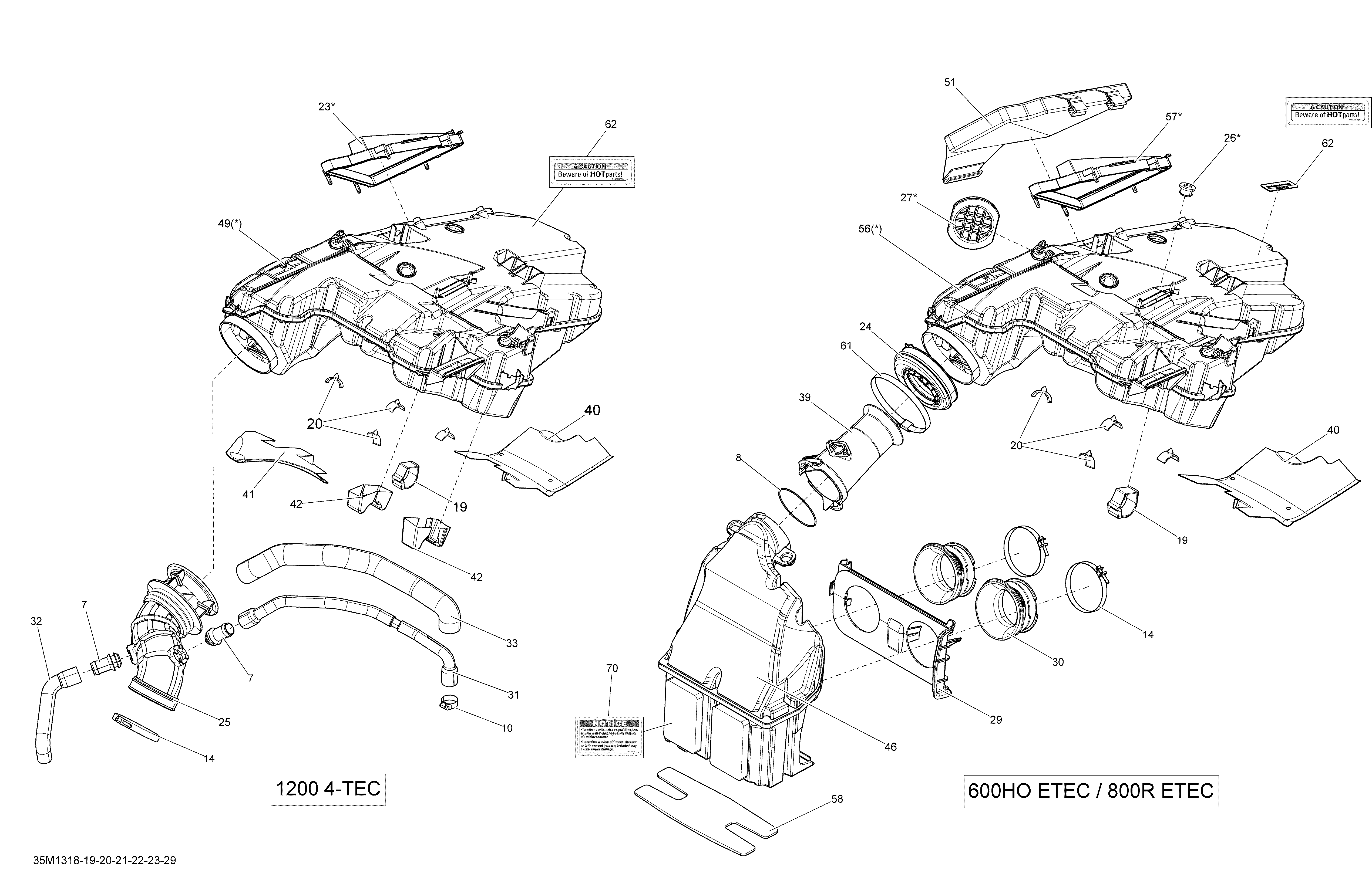

02- Air Intake System для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013
-
№АртикулНазвание
-
7273000234 Breather. 1200 4 TECBreather. 1200 4 TEC
-
10293650172 Tridon Gear Clamp. 1200 4 TECTridon Gear Clamp. 1200 4 TEC
-
14508000346 Gemi Clamp. 1200 4 TECGemi Clamp. 1200 4 TEC
-
19508000532 Velcro StripVelcro Strip
-
20508000537 StopperStopper
-
23*508000546 Air Filter. 1200 4 TECAir Filter. 1200 4 TEC
-
25508000549 Intake Hose. 1200 4 TECIntake Hose. 1200 4 TEC
-
31508000615 Vent Hose. 1200 4 TECVent Hose. 1200 4 TEC
-
32508000616 Formed Hose. 1200 4 TECFormed Hose. 1200 4 TEC
-
33508000630 Insulating Tube. 1200 4 TECInsulating Tube. 1200 4 TEC
-
40508000675 Heat ShieldHeat Shield
-
41508000676 Heat Shield. 1200 4 TECHeat Shield. 1200 4 TEC
-
42508000677 Heat Shield. 1200 4 TECHeat Shield. 1200 4 TEC
-
49(*)508000694 Secondary Chamber Ass'y. 1200 4 TECSecondary Chamber Ass'y. 1200 4 TEC
-
62516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
