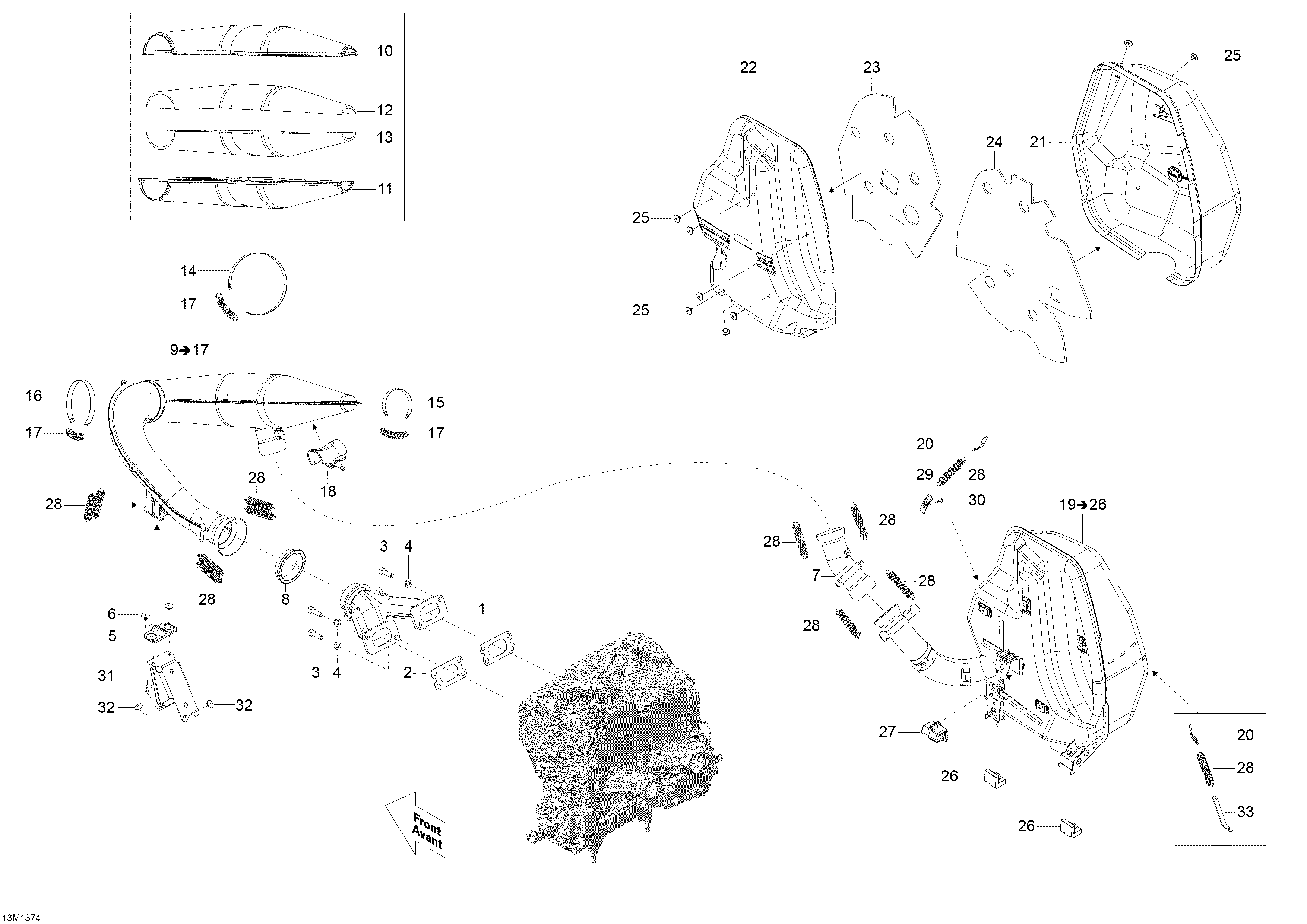

01- Exhaust System для BRP Ski-Doo Skandic WT 550F XU - 2013
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0 mmGasket 1.0 mm
-
3205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4514053837 WasherWasher
-
5514054617 BumperBumper
-
6293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
7514054411 Exhaust ElbowExhaust Elbow
-
8514053644 Exhaust GasketExhaust Gasket
-
9514054414 Tuned Pipe Ass'y. Includes 9 To 17Tuned Pipe Ass'y. Includes 9 To 17
-
10514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
11514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
12514054244 Upper Insulating WoolUpper Insulating Wool
-
13514054243 Lower Insulating WoolLower Insulating Wool
-
14514053502 Retaining StrapRetaining Strap
-
15514053491 Retaining StrapRetaining Strap
-
16514053498 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054513 BumperBumper
-
19514054747 Muffler Ass'y. Includes 19 To 26Muffler Ass'y. Includes 19 To 26
-
20514054391 Spring BracketSpring Bracket
-
21514054433 RH DeflectorRH Deflector
-
22514054420 LH DeflectorLH Deflector
-
23514054421 LH Insulated WoolLH Insulated Wool
-
24514054711 RH Insulating WoolRH Insulating Wool
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
26514054529 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
28415107100 SpringSpring
-
29514054155 Spring BracketSpring Bracket
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31514054767 Exhaust Muffler SupportExhaust Muffler Support
-
32293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
33514054846 Spring BracketSpring Bracket
