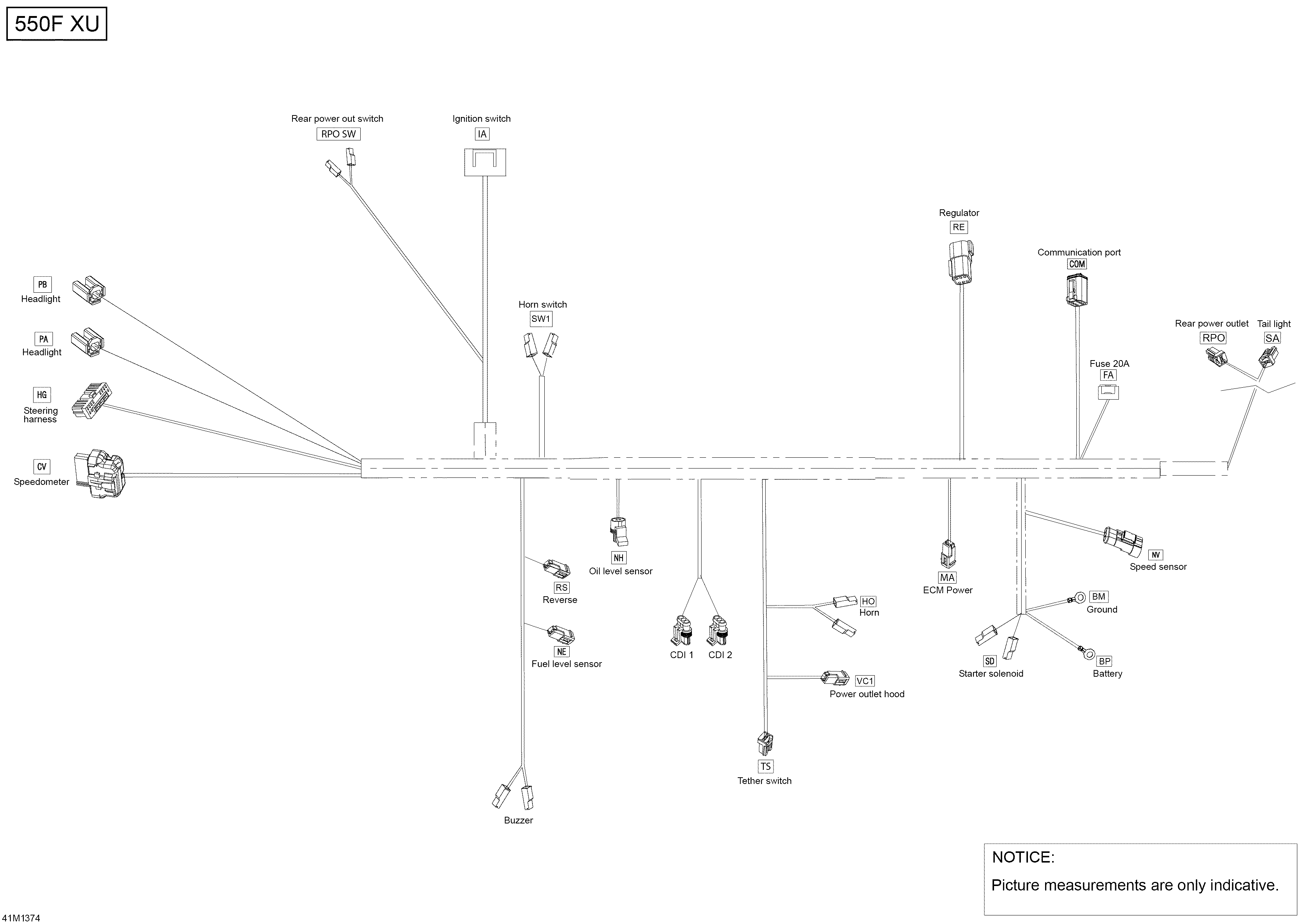

10- Electrical Harness для BRP Ski-Doo Skandic WT 550F XU - 2013
-
№АртикулНазвание
-
1515177074 Frame Harness. Includes 1 to VCFrame Harness. Includes 1 to VC
-
188409902000 Tubing 12 mmTubing 12 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
BUZZER409010100 Female TerminalFemale Terminal
-
BUZZER409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
CDI1409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
CDI1515176621 Wire SealWire Seal
-
CDI1710001340 Female TerminalFemale Terminal
-
CDI2409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CDI2278001013 Wire SealWire Seal
-
CDI2278001014 Female TerminalFemale Terminal
-
COM278000632 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
CV515175812 PlugPlug
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710000399 Female HousingFemale Housing
-
CV710001131 Female TerminalFemale Terminal
-
FA409004200 Female TerminalFemale Terminal
-
FA409004000 Fuse HolderFuse Holder
-
FA710000992 ClipClip
-
HG515175231 Female TerminalFemale Terminal
-
HG515175282 Female TerminalFemale Terminal
-
HO515175231 Female TerminalFemale Terminal
-
HO515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
IA710000272 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
IA710000273 Lock, 4 CircuitsLock, 4 Circuits
-
IA710000274 Female TerminalFemale Terminal
-
MA515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
MA515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
MA278000632 Female TerminalFemale Terminal
-
NE515175232 Male TerminalMale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NH278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
NH710001119 Female TerminalFemale Terminal
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RE710000877 TerminalTerminal
-
RPO515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
RPO515175232 Male TerminalMale Terminal
-
RPOSW409010100 Female TerminalFemale Terminal
-
RPOSW409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
RS409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
RS515176621 Wire SealWire Seal
-
RS278002307 Female TerminalFemale Terminal
-
SA515175231 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SD409010100 Female TerminalFemale Terminal
-
SD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SD293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
SW1409010100 Female TerminalFemale Terminal
-
SW1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
TS278000998 Female TerminalFemale Terminal
-
TS278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
TS415128501 SealSeal
-
VC1409010100 Female TerminalFemale Terminal
-
VC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
