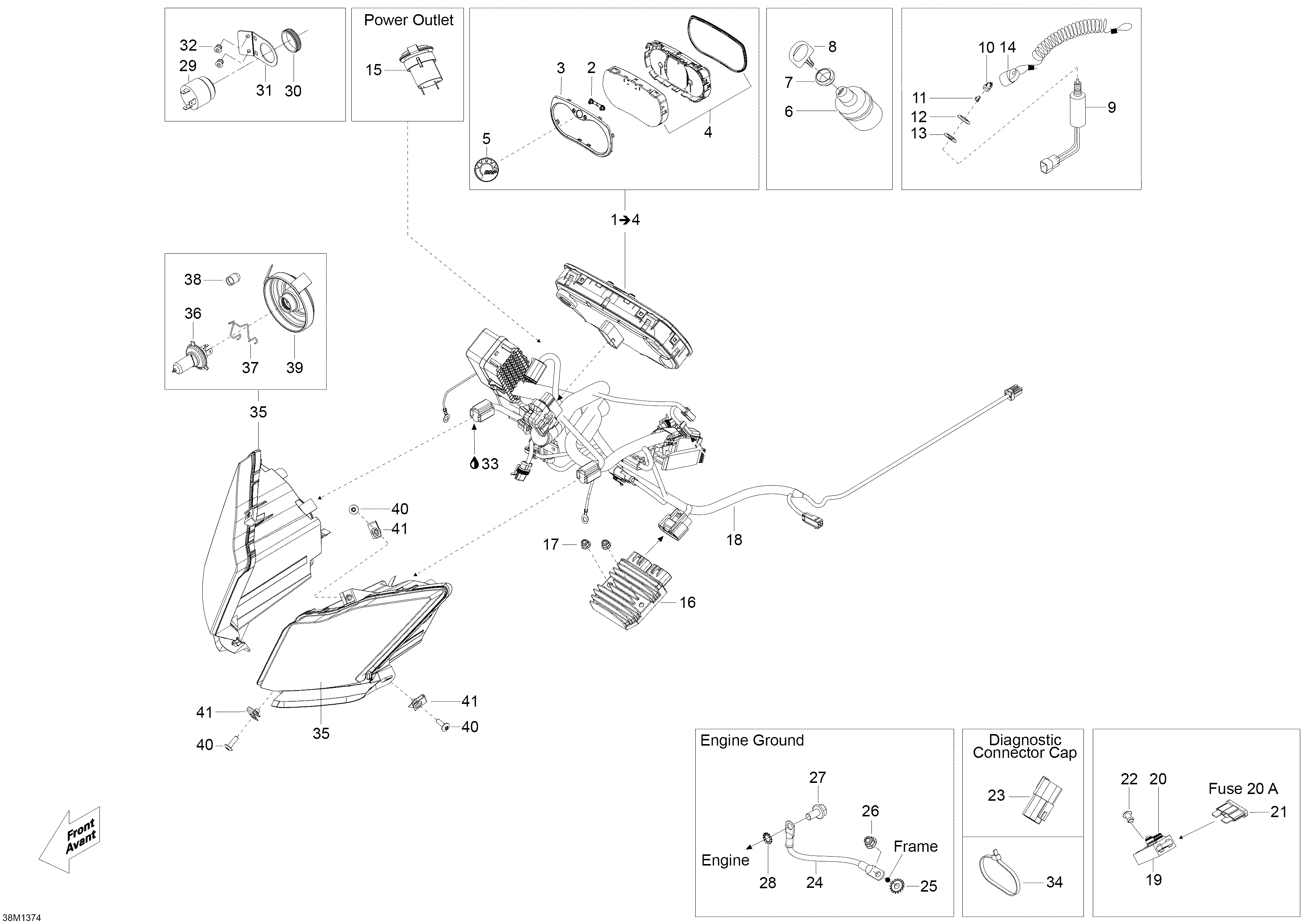

10- Electrical System для BRP Ski-Doo Skandic WT 550F XU - 2013
-
№АртикулНазвание
-
1515177393 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177063 Ignition SwirchIgnition Swirch
-
9515175653 Brake SwitchBrake Switch
-
10515145900 Switch NutSwitch Nut
-
11570151100 Plunger CapPlunger Cap
-
12250200084 Flat WasherFlat Washer
-
13732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
14515176463 Cap Ass'yCap Ass'y
-
15710001248 Outlet DCOutlet DC
-
16515176699 Voltage RegulatorVoltage Regulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18515177074 Frame HarnessFrame Harness
-
19515176681 LockLock
-
20270000141 ClipClip
-
21409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
22293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
23515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
24515176745 Ground WireGround Wire
-
25250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
28234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
29414792102 Back-Up AlarmBack-Up Alarm
-
30414805101 Plastic NutPlastic Nut
-
31515176822 Reverse Buzz HolderReverse Buzz Holder
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
34293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
34293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
35517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
36515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
38515176498 CapCap
-
39515176499 CoverCover
-
40250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
41250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
