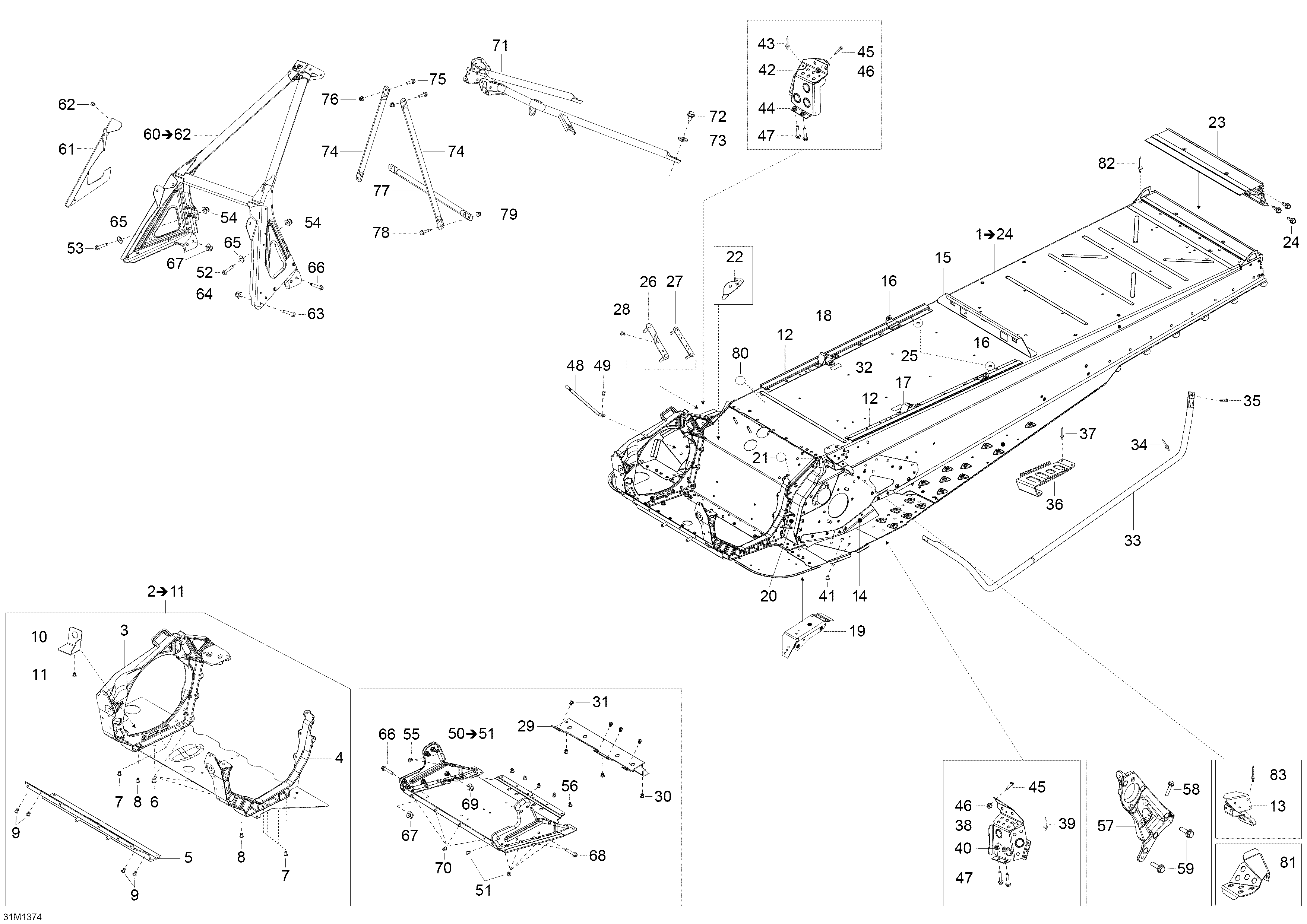

09- Frame для BRP Ski-Doo Skandic WT 550F XU - 2013
-
№АртикулНазвание
-
1518326965 Frame Xu 552 Fc Sc-. Includes 1 To 24Frame Xu 552 Fc Sc-. Includes 1 To 24
-
2518326515 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326795 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10518327219 Muffler SupportMuffler Support
-
11293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
12518326107 Fastening railFastening rail
-
13605355235 Fastening BracketFastening Bracket
-
14518326658 Drive Axle Cover L.H.Drive Axle Cover L.H.
-
14518326659 Drive Axle Cover R.H.Drive Axle Cover R.H.
-
15518325986 Battery support plateBattery support plate
-
16518325987 Seat Box BracketSeat Box Bracket
-
17518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
18518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
19518326430 Clinch nut plateClinch nut plate
-
20518325524 Frame Corner LHFrame Corner LH
-
20518325526 Frame Corner RHFrame Corner RH
-
21518325560 Adhesive PatchAdhesive Patch
-
22518326520 Rh.SupportRh.Support
-
23518327194 Rear ProfileRear Profile
-
24207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
25518325560 Adhesive PatchAdhesive Patch
-
26518326123 Gearbox Front PlateGearbox Front Plate
-
27518326124 Gearbox Rear PlateGearbox Rear Plate
-
28390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
29518326719 Engine SupportEngine Support
-
30293150179 Monobolt Rivet 4.8Monobolt Rivet 4.8
-
31390909200 Avex RivetAvex Rivet
-
32518326357 Rubber CoverRubber Cover
-
33518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
33518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
34390909100 Avex RivetAvex Rivet
-
35207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
36520000492 FootrestFootrest
-
37390909100 Avex RivetAvex Rivet
-
38518326671 Toe Hook LHToe Hook LH
-
39390909200 Avex RivetAvex Rivet
-
40605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
41414644300 DartDart
-
42518326672 Toe Hook RHToe Hook RH
-
43390909200 Avex RivetAvex Rivet
-
44605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
45207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
48514054846 Spring BracketSpring Bracket
-
49390909200 Avex RivetAvex Rivet
-
50518326213 S Module. Includes 50 To 51S Module. Includes 50 To 51
-
51390909200 Avex RivetAvex Rivet
-
52207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
53207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
54233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
55390909100 Avex RivetAvex Rivet
-
56390909200 Avex RivetAvex Rivet
-
57518326714 Pulley SupportPulley Support
-
58207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
59207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
60518327004 Front Member Assy. Includes 60 To 62Front Member Assy. Includes 60 To 62
-
61502007077 Bumper Fastener LHBumper Fastener LH
-
61502007078 Bumper Fastener RHBumper Fastener RH
-
62390909200 Avex RivetAvex Rivet
-
63207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
64233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
65224061201 Flat WasherFlat Washer
-
66207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
67233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
68207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
69233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
70390909200 Avex RivetAvex Rivet
-
71518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
72207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
74518325114 Upper Column SupportUpper Column Support
-
75207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
76233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
77518325115 Center Column SupportCenter Column Support
-
78250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
79233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
80518325560 Adhesive PatchAdhesive Patch
-
81518325626 Brake Hose CoverBrake Hose Cover
-
82293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
83390909200 Avex RivetAvex Rivet
