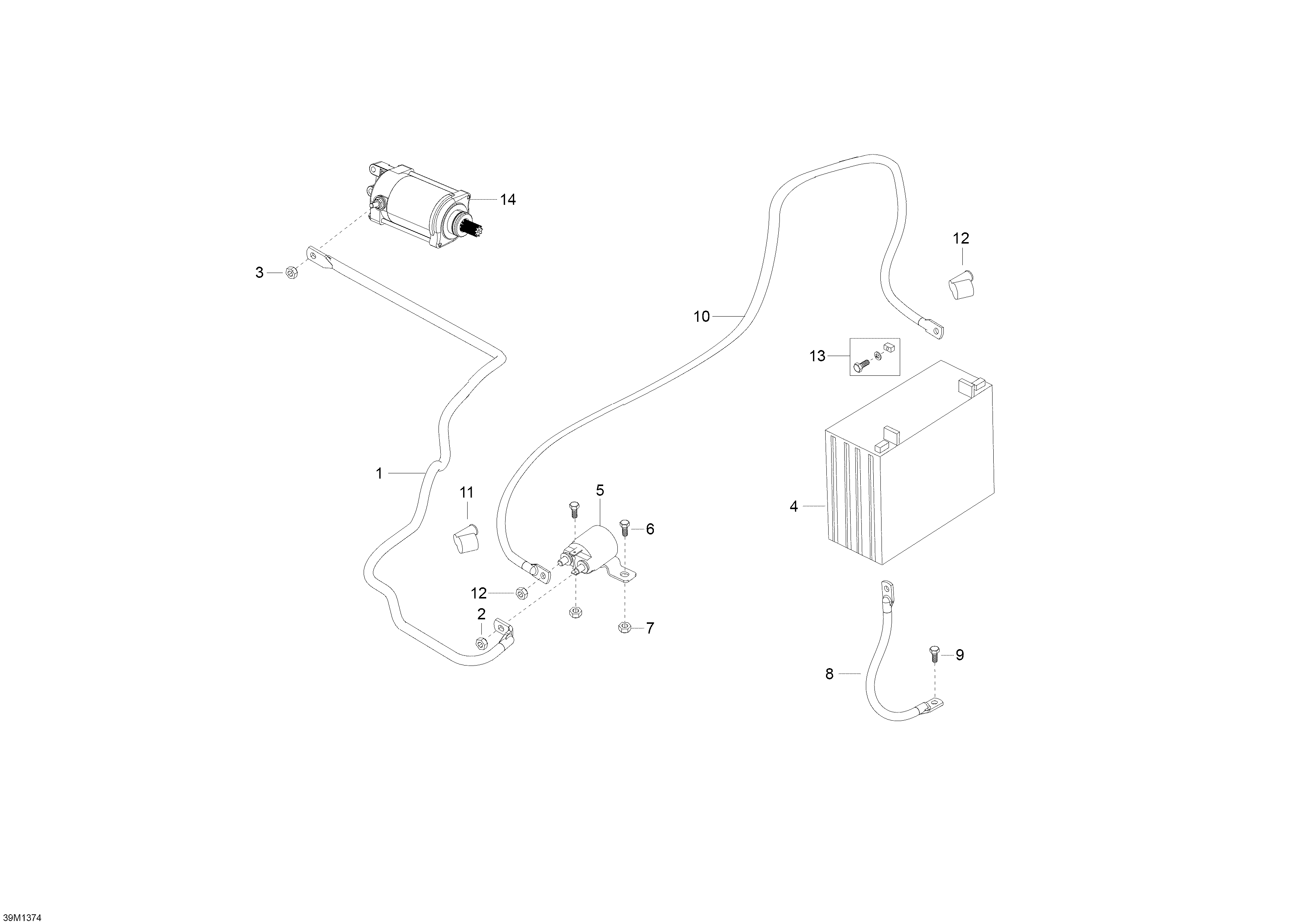

10- Battery And Starter для BRP Ski-Doo Skandic WT 550F XU - 2013
-
№АртикулНазвание
-
1515175905 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
4410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
5515176011 Starter RelayStarter Relay
-
6207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8515176780 Ground WireGround Wire
-
9207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
10515176967 Battery CableBattery Cable
-
11710000495 Protector CapProtector Cap
-
12710000495 Protector CapProtector Cap
-
13295500849 Battery Fastener KitBattery Fastener Kit
-
14515176858 Starter Ass'yStarter Ass'y
