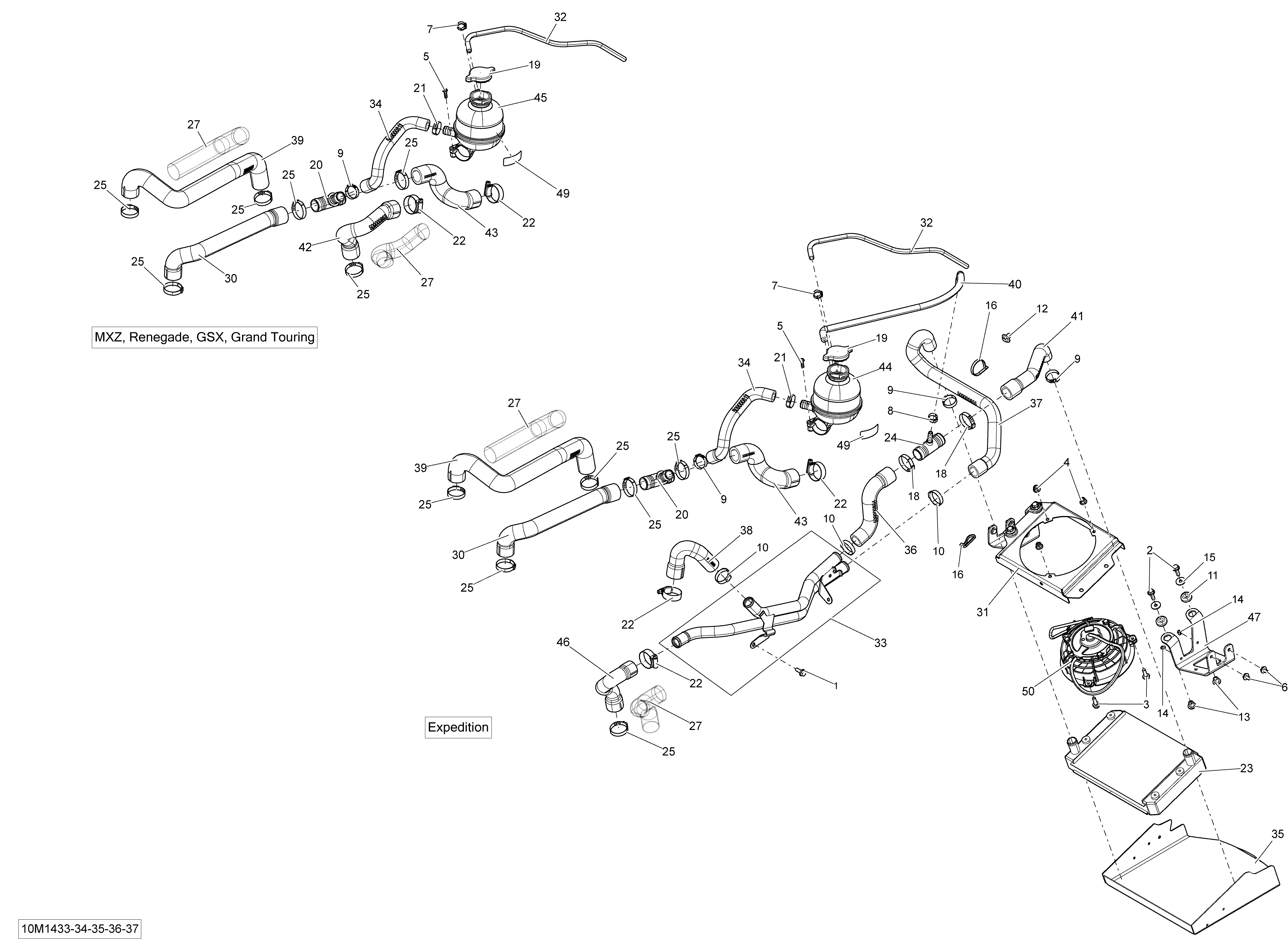

01- Cooling System для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
7293650025 Oetiker Gear ClampOetiker Gear Clamp
-
9293650099 Crimp ClampCrimp Clamp
-
19509000180 Pressure CapPressure Cap
-
20509000372 T-FittingT-Fitting
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22509000443 Aba Gear ClampAba Gear Clamp
-
25509000529 Oetiker Gear ClampOetiker Gear Clamp
-
27509000513 Protector Tube 32 mmProtector Tube 32 mm
-
30509000697 Radiator Return HoseRadiator Return Hose
-
32509000775 HoseHose
-
34509000811 Filling HoseFilling Hose
-
39509000859 Radiator HoseRadiator Hose
-
42509000863 Engine Outlet HoseEngine Outlet Hose
-
43509000864 Engine Inlet HoseEngine Inlet Hose
-
45509000881 Cooling TankCooling Tank
-
49516005904 Warning DecalWarning Decal
