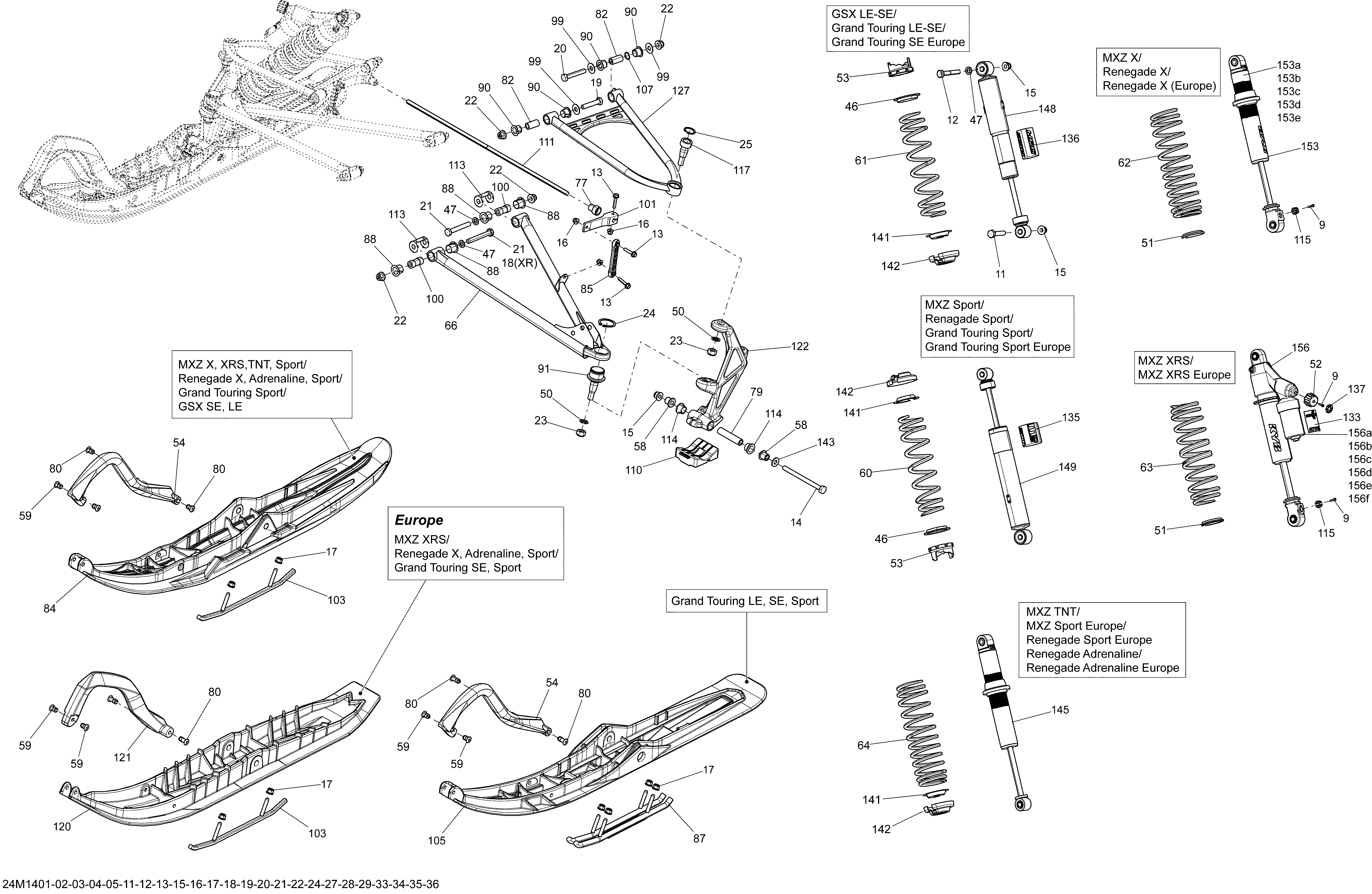

07- Front Suspension And Ski для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
11207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
12207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
13207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
14230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
20250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
22250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
24293370035 CirclipCirclip
-
25293370070 CirclipCirclip
-
46503187500 Spring GuideSpring Guide
-
47503189564 WasherWasher
-
50503192491 WasherWasher
-
53505070150 Adjustment CamAdjustment Cam
-
54505070963 Black HandleBlack Handle
-
58505071781 CushionCushion
-
59505071812 RetainerRetainer
-
61505071849 Full Moon SpringFull Moon Spring
-
66505072676 Full Moon RH Lower ArmFull Moon RH Lower Arm
-
66505072677 Full Moon LH Lower ArmFull Moon LH Lower Arm
-
77505072064 BushingBushing
-
79506133300 SpacerSpacer
-
80505072133 RetainerRetainer
-
82505072143 BushingBushing
-
85505072204 Double Ball Joint LinkDouble Ball Joint Link
-
87860201043 Round Carbide RunnerRound Carbide Runner
-
88505072208 BushingBushing
-
90505072250 BushingBushing
-
91505072682 Lower Ball JointLower Ball Joint
-
99505072392 WasherWasher
-
100505072393 BushingBushing
-
101505072394 Stabilisator LeverStabilisator Lever
-
105505072548 Deep Black Pilot Ski Ass'yDeep Black Pilot Ski Ass'y
-
107505072448 O-RingO-Ring
-
110505072594 Ski StopperSki Stopper
-
111505072602 StabilisatorStabilisator
-
113505072634 Wear PlateWear Plate
-
114505072690 Leg CushionLeg Cushion
-
117505072913 Upper Ball JointUpper Ball Joint
-
122505073007 Clear LH Ski LegClear LH Ski Leg
-
122505073008 Clear RH Ski LegClear RH Ski Leg
-
127505073464 Full Moon LH Upper Arm, 42''Full Moon LH Upper Arm, 42''
-
127505073465 Full Moon RH Upper Arm, 42''Full Moon RH Upper Arm, 42''
-
136516005533 Shock Decal, HPGShock Decal, HPG
-
141706200785 CapCap
-
142706200881 Spring StopperSpring Stopper
-
143503192496 WasherWasher
-
148505073235 Front ShockFront Shock
