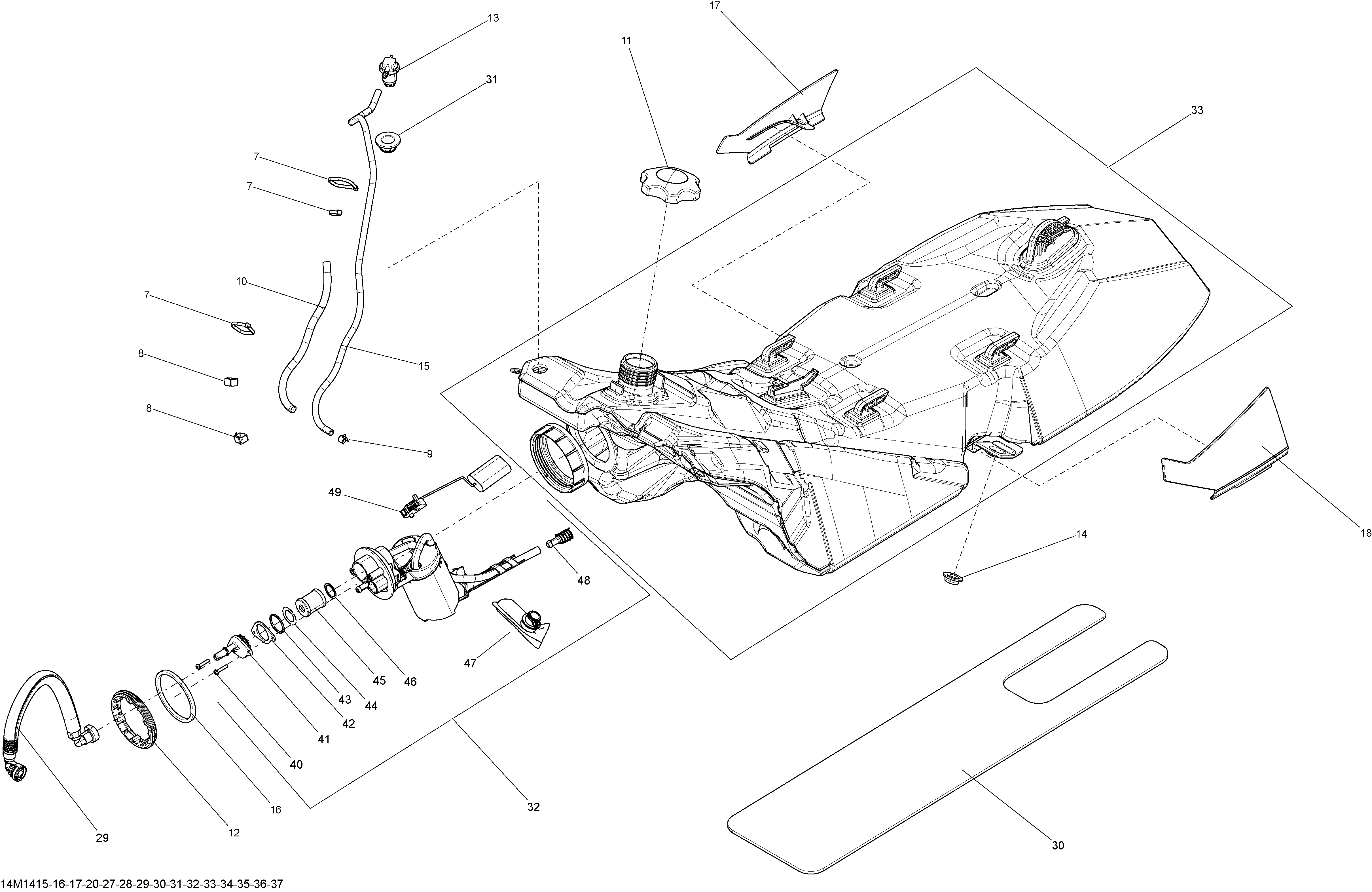

02- Fuel System для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9414554800 Spring ClampSpring Clamp
-
10504153074 Protector TubeProtector Tube
-
11513033720 Fuel Tank Cap. OCT(87)Fuel Tank Cap. OCT(87)
-
11513033721 Fuel Tank Cap. OCT(92)Fuel Tank Cap. OCT(92)
-
12513033180 RingRing
-
13513033188 Check ValveCheck Valve
-
14513033326 Shoulder BushingShoulder Bushing
-
15415080200 Hose, PolyurethaneHose, Polyurethane
-
16513033334 GasketGasket
-
29513033582 Hose Ass'y. 600ACE, 900ACEHose Ass'y. 600ACE, 900ACE
-
30513033588 Insulating FoamInsulating Foam
-
31513033596 GrommetGrommet
-
32513033654 Fuel Pump Ass'yFuel Pump Ass'y
-
33513033667 Fuel TankFuel Tank
-
40415129513 ScrewScrew
-
41415129685 CoverCover
-
42415129569 Fuel Pump RingFuel Pump Ring
-
43415129509 O-RingO-Ring
-
44415129512 Wave WasherWave Washer
-
45415129510 Fuel FilterFuel Filter
-
46415129511 O-RingO-Ring
-
47415129451 Fuel FilterFuel Filter
-
48414872100 Fuel FilterFuel Filter
-
49415129671 Fuel Level SensorFuel Level Sensor
