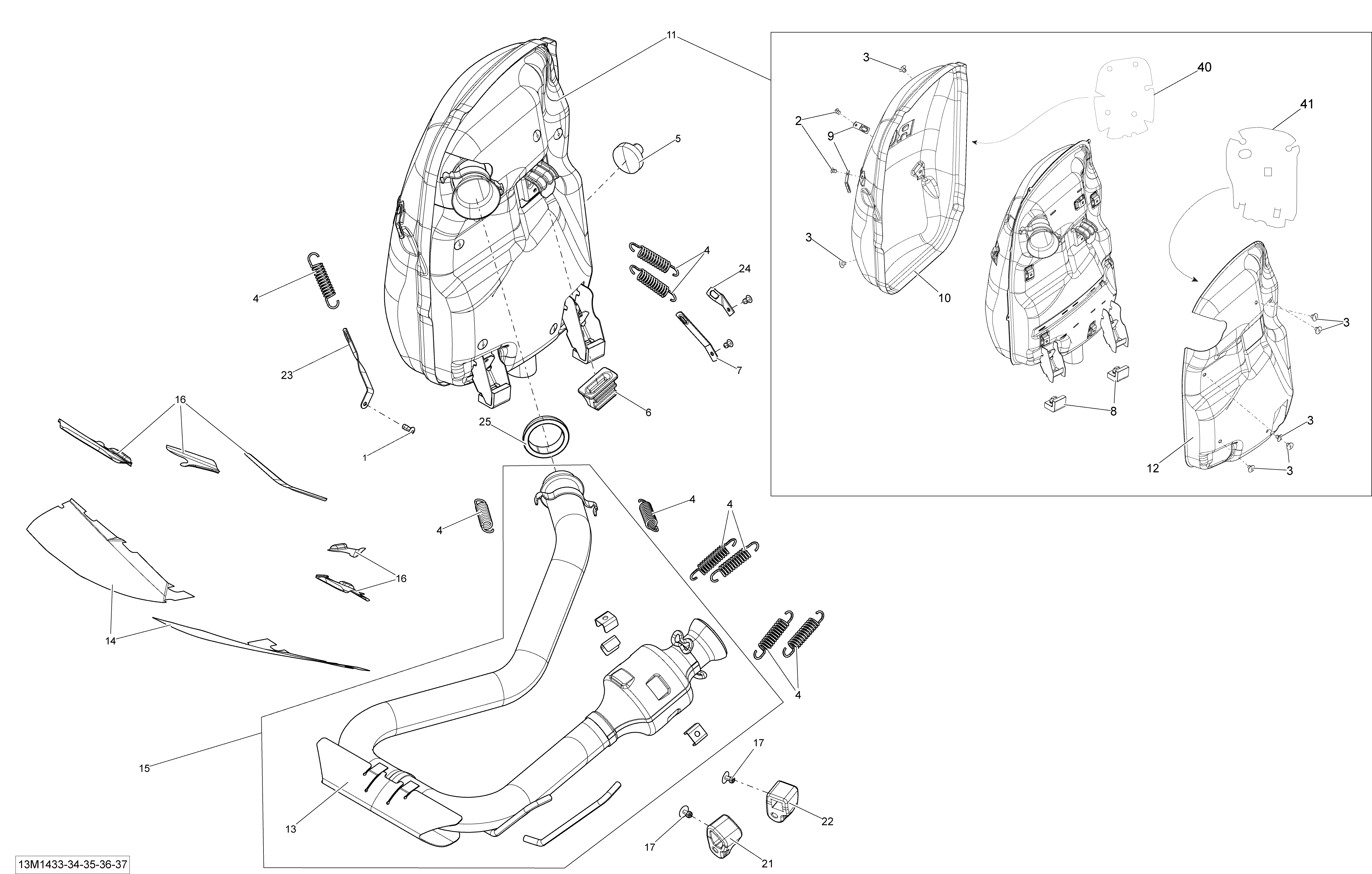

01- Exhaust System для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
1293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
2390909200 Avex RivetAvex Rivet
-
3390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
4415107100 SpringSpring
-
6514054346 StopperStopper
-
7514054484 Spring BracketSpring Bracket
-
8514054496 Lower StopperLower Stopper
-
9514054522 Spring BracketSpring Bracket
-
10514054644 RH Heat ShieldRH Heat Shield
-
11514054878 Muffler Ass'yMuffler Ass'y
-
12514054880 LH Heat ShieldLH Heat Shield
-
15514055096 Pipe Ass'yPipe Ass'y
-
16514055009 Heat ShieldHeat Shield
-
17293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
22514055015 RubberRubber
-
23514055030 Spring BracketSpring Bracket
-
25707601033 Exhaust GasketExhaust Gasket
-
40514054769 RH Insulating WoolRH Insulating Wool
-
41514054881 LH Insulating WoolLH Insulating Wool
