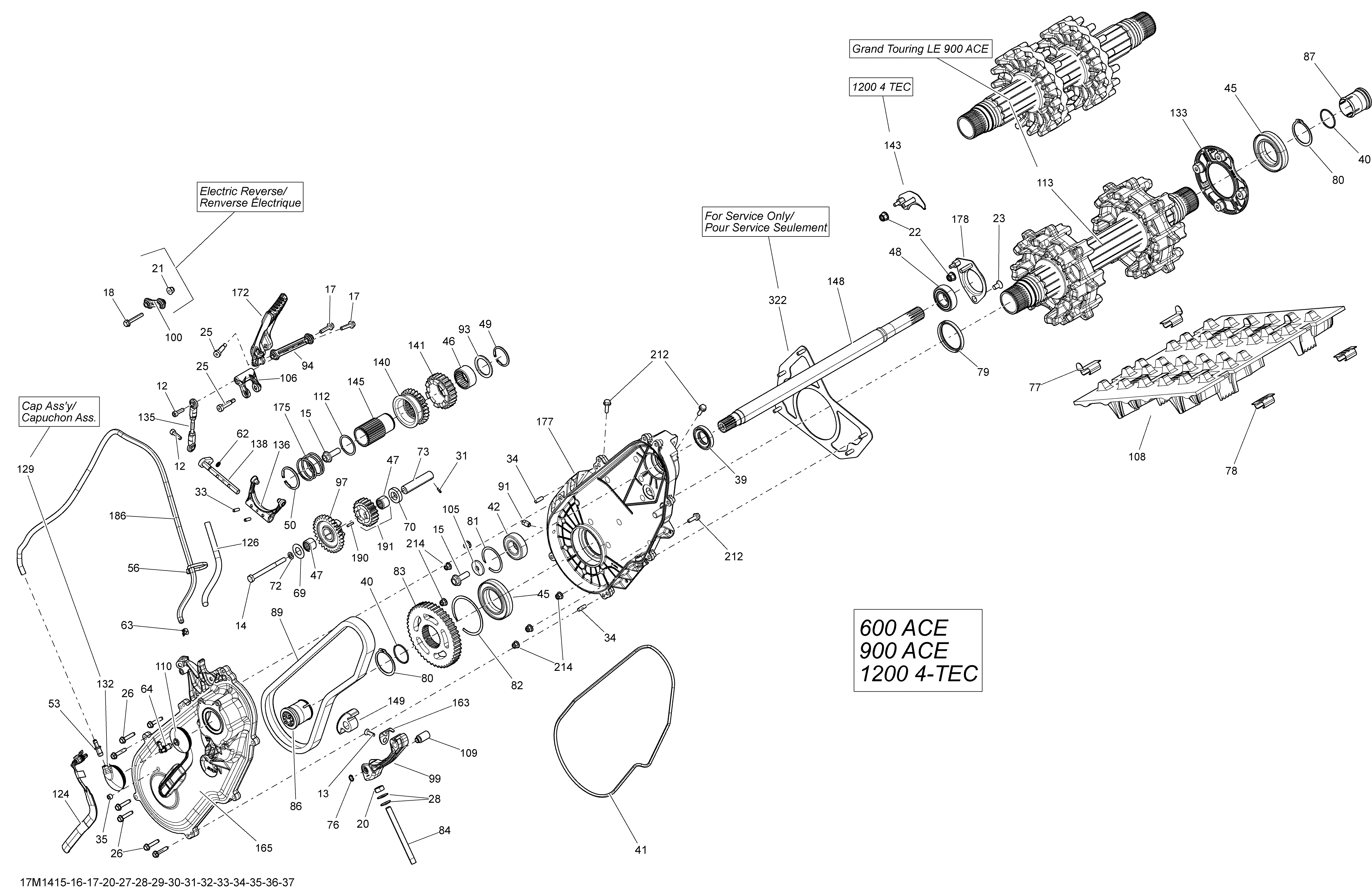

05- Drive System для BRP Ski-Doo GRAND TOURING LE 900 ACE XR - 2014
-
№АртикулНазвание
-
12207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
13205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
14207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
15207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
20232006414 Hex. Nut M10Hex. Nut M10
-
23235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
26210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
28250200100 Bonded WasherBonded Washer
-
31250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
33250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
34250400048 Dowel PinDowel Pin
-
35250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
39293250175 Oil SealOil Seal
-
40293300122 O-RingO-Ring
-
41293300130 O-RingO-Ring
-
42293350055 Ball BearingBall Bearing
-
45293350059 Ball BearingBall Bearing
-
46293350063 Needle BearingNeedle Bearing
-
47293350064 Needle BearingNeedle Bearing
-
48293350074 Ball BearingBall Bearing
-
49293370054 CirclipCirclip
-
50293370055 CirclipCirclip
-
53293710035 Straight FittingStraight Fitting
-
56414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62414484400 O-RingO-Ring
-
63414554800 Spring ClampSpring Clamp
-
69504077300 SpacerSpacer
-
70504078700 RingRing
-
72504082900 WasherWasher
-
73504083100 Reverse ShaftReverse Shaft
-
76504152282 CirclipCirclip
-
77415129528 Track GuideTrack Guide
-
78415129529 CleatCleat
-
79504152571 SealSeal
-
80504152572 CirclipCirclip
-
81504152576 CirclipCirclip
-
82504152582 CirclipCirclip
-
83504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
84504152602 Adjustment ScrewAdjustment Screw
-
86504152619 Magnetic CapMagnetic Cap
-
87504152619 Magnetic CapMagnetic Cap
-
89504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
91504152854 Magnetic PlugMagnetic Plug
-
93504152689 WasherWasher
-
94504152766 Double Ball JointDouble Ball Joint
-
97504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
99504152748 Chain TensionerChain Tensioner
-
100504152766 Double Ball JointDouble Ball Joint
-
105504152784 Spring Washer M10Spring Washer M10
-
106504152788 LeverLever
-
108504153157 Track Ass'y TR15X137X1.0STISTrack Ass'y TR15X137X1.0STIS
-
109504152841 Tensionner AxleTensionner Axle
-
112504152862 WasherWasher
-
113504153269 Drive Axle Ass'yDrive Axle Ass'y
-
124504152896 SensorSensor
-
126504152900 Protector TubeProtector Tube
-
129504152929 Cap Ass'yCap Ass'y
-
132504152930 CapCap
-
133504152949 Housing BearingHousing Bearing
-
135504152951 Ball JointBall Joint
-
136504152954 Fork Ass'yFork Ass'y
-
138504152956 Welded Axel ForkWelded Axel Fork
-
140504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
141504152961 Sprocket, 24 TeethSprocket, 24 Teeth
-
145504152979 CouplingCoupling
-
148504153000 CountershaftCountershaft
-
149504152739 Slider ChainSlider Chain
-
163504153122 Chain SliderChain Slider
-
165504153143 Chaincase Cover Ass'yChaincase Cover Ass'y
-
172504153082 GripGrip
-
175504153179 Spring ReleaseSpring Release
-
177504153183 ChaincaseChaincase
-
178504153187 Bearing HousingBearing Housing
-
186415080200 Hose, PolyurethaneHose, Polyurethane
-
190570048600 Alignement RodAlignement Rod
-
191581096900 Sprock Ass'y, 19 TeethSprock Ass'y, 19 Teeth
-
212207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
214233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
322518325816 PlatePlate
