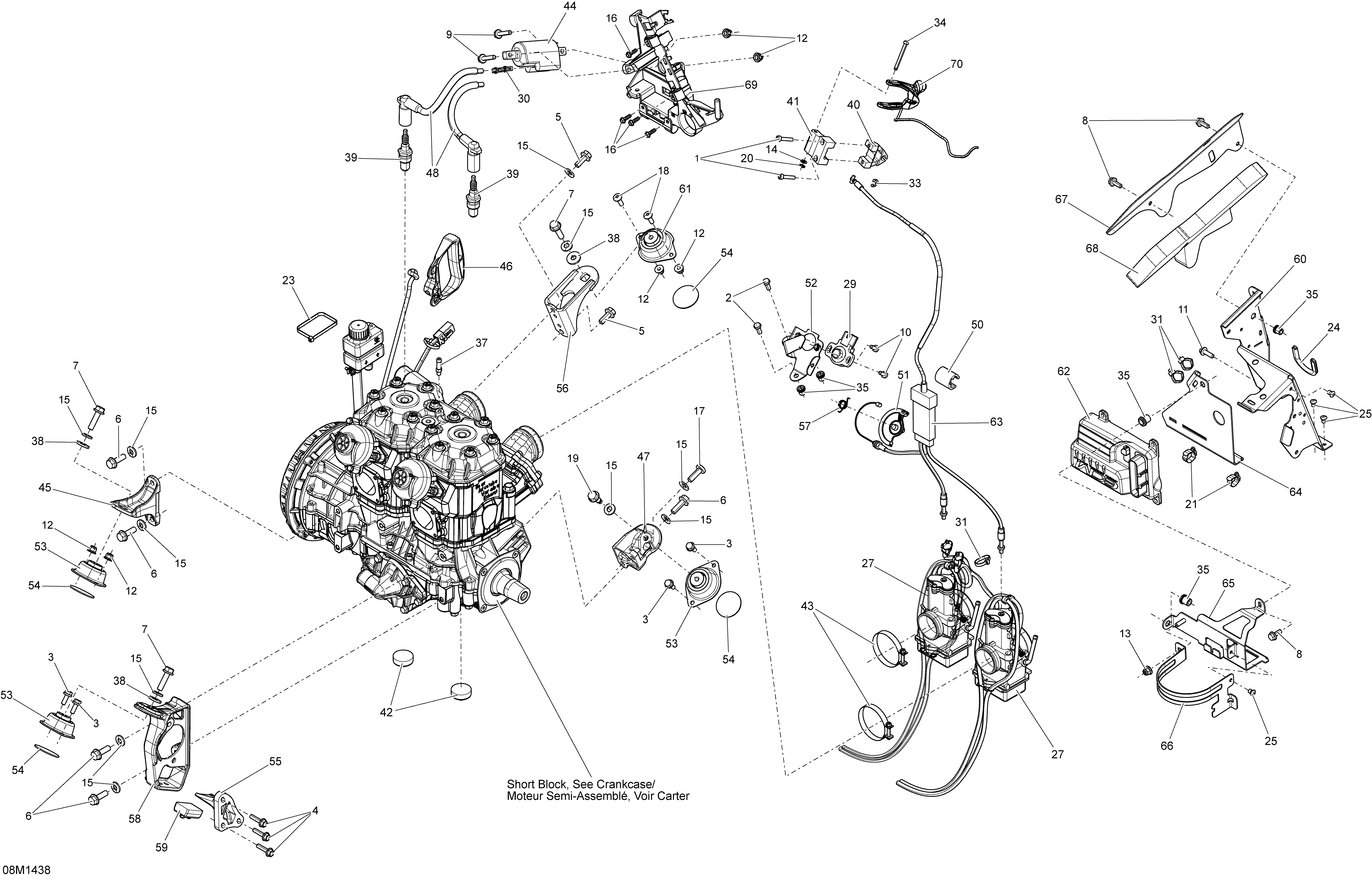

01- Engine And Engine Support _08M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
2207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
5207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
7207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
10208651241 Phillips Screw M5 X 12Phillips Screw M5 X 12
-
11210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
15250200146 Conical Spring Washer M8Conical Spring Washer M8
-
16241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
17250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
18250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
19250000570 Hex. Screw M8Hex. Screw M8
-
20293370050 CirclipCirclip
-
21293650172 Tridon Gear ClampTridon Gear Clamp
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24414506600 TrimTrim
-
25390909200 Avex RivetAvex Rivet
-
27403138818 Carburator, TMX39-1Z1Carburator, TMX39-1Z1
-
29404162079 Sensor Ass'ySensor Ass'y
-
30410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33414274500 CirclipCirclip
-
34414438700 Lever PinLever Pin
-
35293450275 InsertInsert
-
37420924724 Hose NippleHose Nipple
-
38503183200 Washer, YellowWasher, Yellow
-
39512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
40512059537 Lower HousingLower Housing
-
41512059538 Upper HousingUpper Housing
-
42512059738 StopperStopper
-
43512059835 Gemi ClampGemi Clamp
-
44512059968 Ignition CoilIgnition Coil
-
45512060108 Front Support, MAGFront Support, MAG
-
46512060136 Starter GripStarter Grip
-
47512060173 Rear Support, PTORear Support, PTO
-
48512060291 CableCable
-
50512060313 ProtectorProtector
-
51512060335 Cap CamCap Cam
-
52512060336 TPS SupportTPS Support
-
53512060385 Rubber MountRubber Mount
-
54512060410 Rubber WasherRubber Washer
-
55512060576 Stopper SupportStopper Support
-
56512060568 Rear Engine Support, MAGRear Engine Support, MAG
-
57512060638 Cam SpringCam Spring
-
58512060699 Front Support, PTOFront Support, PTO
-
59512060766 StopperStopper
-
60512060770 Grip SupportGrip Support
-
61512060772 Rubber MountRubber Mount
-
62512060962 Calibrated Module 600RSCalibrated Module 600RS
-
63512060895 Throttle CableThrottle Cable
-
64512060904 ECM SupportECM Support
-
65512060905 SupportSupport
-
66512060916 StrapStrap
-
67512060917 Noise ShieldNoise Shield
-
68512060918 Noise FoamNoise Foam
-
69512060925 Coils SupportCoils Support
-
70512060960 Handle Ass'yHandle Ass'y
