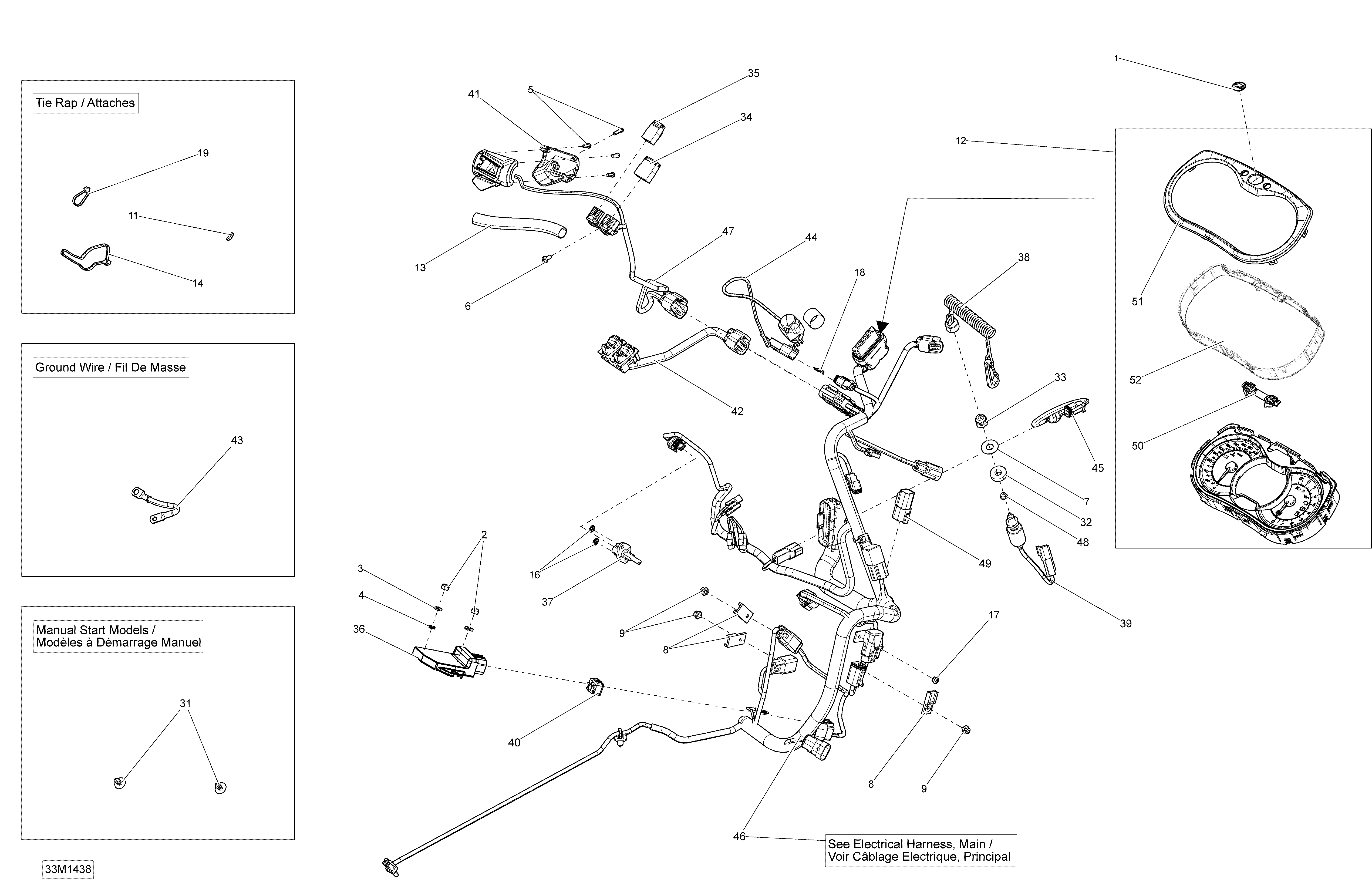

10- Electrical System _33M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
1219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
4234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
5250000671 Torx ScrewTorx Screw
-
5250000671 Torx ScrewTorx Screw
-
6250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
6250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
7250200032 WasherWasher
-
7250200032 WasherWasher
-
8270000141 ClipClip
-
8270000141 ClipClip
-
9293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
9293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
12515177659 SpeedometerSpeedometer
-
12515177659 SpeedometerSpeedometer
-
13415129879 Corrugated TubeCorrugated Tube
-
13415129879 Corrugated TubeCorrugated Tube
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16389804300 Push NutPush Nut
-
16389804300 Push NutPush Nut
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
18409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31414644300 DartDart
-
31414644300 DartDart
-
32510004418 WasherWasher
-
32510004418 WasherWasher
-
33515145900 Switch NutSwitch Nut
-
33515145900 Switch NutSwitch Nut
-
34515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
34515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
35515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
35515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
36515176364 Voltage RegulatorVoltage Regulator
-
36515176364 Voltage RegulatorVoltage Regulator
-
37515176366 Air Temperature SensorAir Temperature Sensor
-
37515176366 Air Temperature SensorAir Temperature Sensor
-
38515176462 Cap Ass'yCap Ass'y
-
38515176462 Cap Ass'yCap Ass'y
-
39515175653 Brake SwitchBrake Switch
-
39515175653 Brake SwitchBrake Switch
-
40515176681 LockLock
-
40515176681 LockLock
-
41515177149 LH Switch Housing PlateLH Switch Housing Plate
-
41515177149 LH Switch Housing PlateLH Switch Housing Plate
-
42515177154 Double Switch ModuleDouble Switch Module
-
42515177154 Double Switch ModuleDouble Switch Module
-
43515177289 Fil de MasseFil de Masse
-
43515177289 Fil de MasseFil de Masse
-
44515177454 Kill SwitchKill Switch
-
44515177454 Kill SwitchKill Switch
-
45515177471 Temperature SensorTemperature Sensor
-
45515177471 Temperature SensorTemperature Sensor
-
46515177567 Main HarnessMain Harness
-
46515177567 Main HarnessMain Harness
-
47515177615 LH Switch HousingLH Switch Housing
-
47515177615 LH Switch HousingLH Switch Housing
-
48570151100 Plunger CapPlunger Cap
-
48570151100 Plunger CapPlunger Cap
-
49710003006 HousingHousing
-
49710003006 HousingHousing
-
50415129355 Speedometer ButtonSpeedometer Button
-
50415129355 Speedometer ButtonSpeedometer Button
-
51415129348 Gauge RingGauge Ring
-
51415129348 Gauge RingGauge Ring
-
52415129349 LensLens
-
52415129349 LensLens
