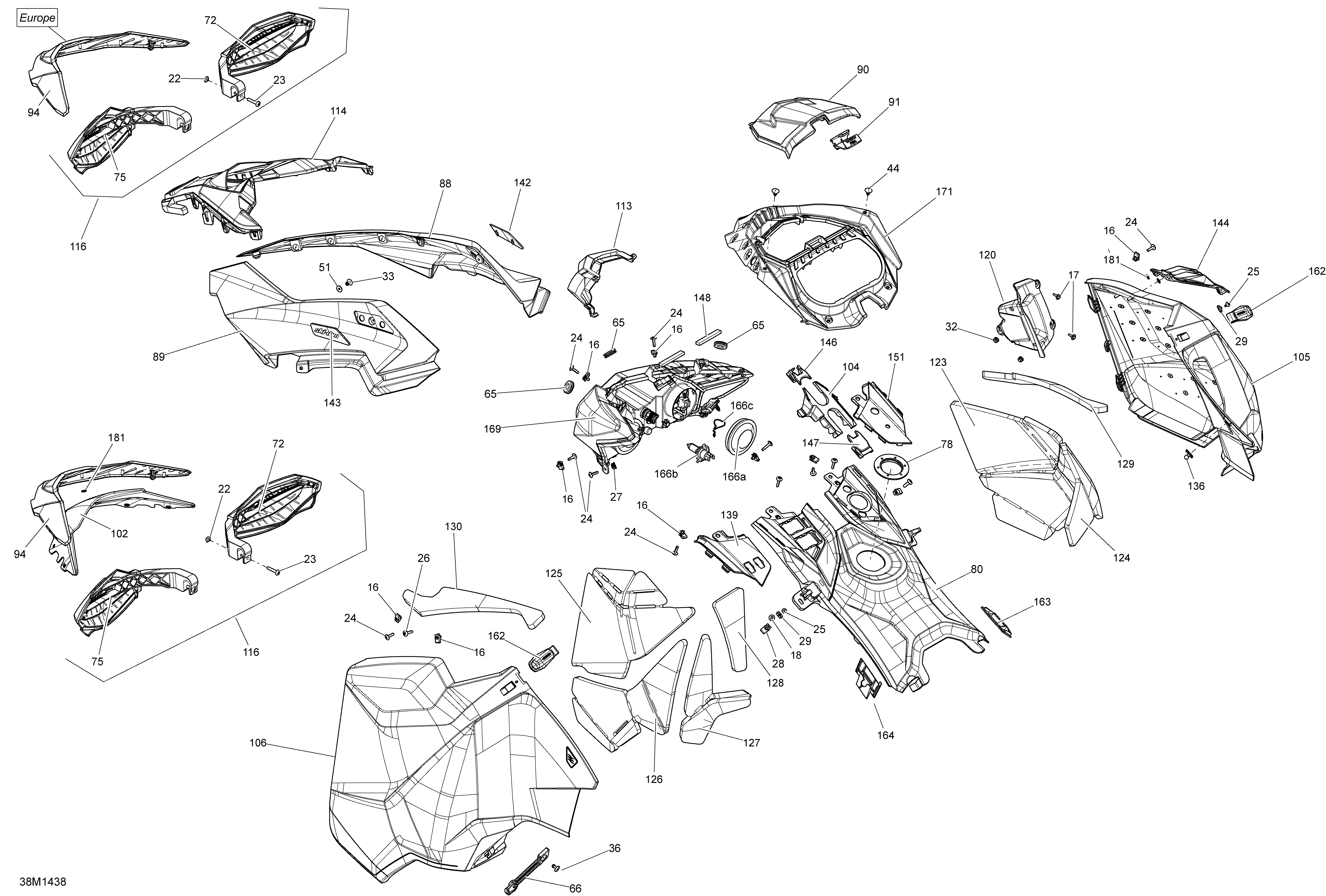

09- Hood, Windshield And Console _38M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
22250000498 Square Nut M6Square Nut M6
-
23250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
24250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
26250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
27250100035 Jack Nut M5Jack Nut M5
-
28250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
29250100156 Weld Nut M4Weld Nut M4
-
32275500241 Black CapBlack Cap
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44414644300 DartDart
-
51517124300 WasherWasher
-
65517303756 GrommetGrommet
-
66517303808 LH Panel LatchLH Panel Latch
-
72517305042 Yellow RH Wind DeflectorYellow RH Wind Deflector
-
75517305043 Yellow LH Wind DeflectorYellow LH Wind Deflector
-
78517304518 Console NutConsole Nut
-
80517304797 Yellow Rear ConsoleYellow Rear Console
-
88517305370 Black Mat RH HoodBlack Mat RH Hood
-
89517305371 Black Mat LH HoodBlack Mat LH Hood
-
90517304912 Upper Storage Access CoverUpper Storage Access Cover
-
91517304917 Cover LatchCover Latch
-
94517304922 Short Windshield SupportShort Windshield Support
-
102517304931 Windshield 135mmWindshield 135mm
-
104517304970 Console SupportConsole Support
-
105517305508 Black RH PanelBlack RH Panel
-
106517305510 Deep Black LH PanelDeep Black LH Panel
-
113517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
114517305382 Yellow Center HoodYellow Center Hood
-
116860200710 Yellow Wind Deflector KitYellow Wind Deflector Kit
-
120517305060 Deep Black RH ConsoleDeep Black RH Console
-
123517305082 RH Upper Panel FoamRH Upper Panel Foam
-
124517305085 RH Rear Panel FoamRH Rear Panel Foam
-
125517305086 LH Upper Panel FoamLH Upper Panel Foam
-
126517305087 LH Center Panel FoamLH Center Panel Foam
-
127517305088 LH Lower Panel FoamLH Lower Panel Foam
-
128517305089 LH Rear Panel FoamLH Rear Panel Foam
-
129517305090 RH Rear Hood FoamRH Rear Hood Foam
-
130517305091 LH Rear Hood FoamLH Rear Hood Foam
-
136517305504 PinPin
-
139517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
142517305137 RH Hood Filler PlateRH Hood Filler Plate
-
143517305138 LH Hood Filler PlateLH Hood Filler Plate
-
144517305140 RH Panel Vent GridRH Panel Vent Grid
-
146517305148 Support Console CapSupport Console Cap
-
147517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
148517305157 Seal JointSeal Joint
-
151517305183 Deep Black RH Front ConsoleDeep Black RH Front Console
-
162517305279 Panel LatchPanel Latch
-
163517305493 RH ClipRH Clip
-
164517305494 LH ClipLH Clip
-
169517305497 HeadlampHeadlamp
-
171517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
181732610072 Push NutPush Nut
-
181250100158 Push NutPush Nut
-
166a219400070 CapCap
-
166b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
166c219800282 Holder BracketHolder Bracket
