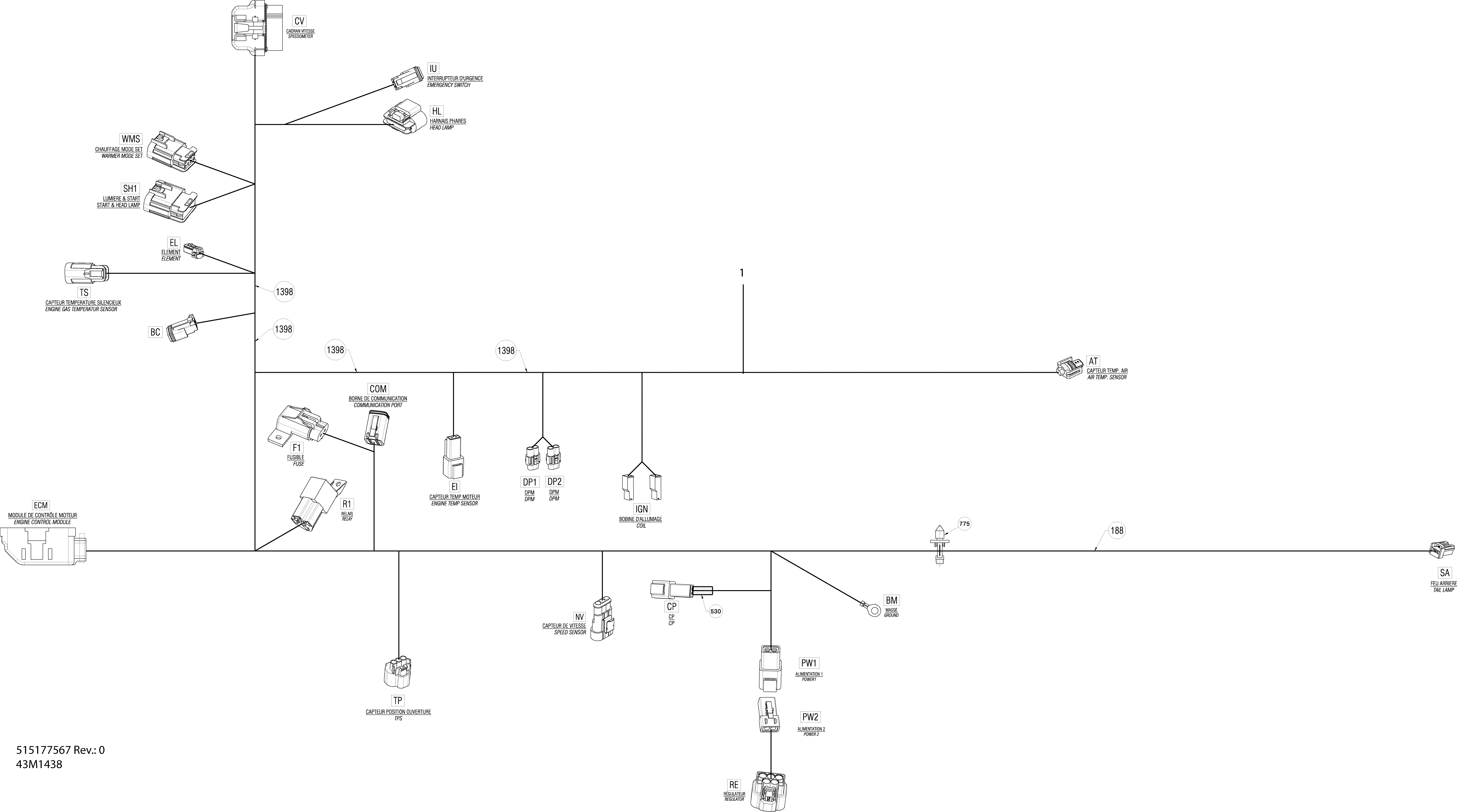

10- Electrical Harness _43M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1515177567 Main HarnessMain Harness
-
1515177567 Main HarnessMain Harness
-
188409902000 Tubing 12 mmTubing 12 mm
-
188409902000 Tubing 12 mmTubing 12 mm
-
775293730040 Mount DartMount Dart
-
775293730040 Mount DartMount Dart
-
1398415129879 Corrugated TubeCorrugated Tube
-
1398415129879 Corrugated TubeCorrugated Tube
-
AT515176890 Female Terminal HousingFemale Terminal Housing
-
AT515176890 Female Terminal HousingFemale Terminal Housing
-
AT710001163 Wire SealWire Seal
-
AT710001163 Wire SealWire Seal
-
AT710001164 Female TerminalFemale Terminal
-
AT710001164 Female TerminalFemale Terminal
-
BC515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
BC515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
BC515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
BC515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
BC278000632 Female TerminalFemale Terminal
-
BC278000632 Female TerminalFemale Terminal
-
BM278000992 Open BarrelOpen Barrel
-
BM278000992 Open BarrelOpen Barrel
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM293000052 Sealing CapSealing Cap
-
COM278001665 Female TerminalFemale Terminal
-
COM278001665 Female TerminalFemale Terminal
-
CP515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CP515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CP409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CP409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CP278000631 Male TerminalMale Terminal
-
CP278000631 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
DP1409012300 SealSeal
-
DP1409012300 SealSeal
-
DP1409012100 Female TerminalFemale Terminal
-
DP1409012100 Female TerminalFemale Terminal
-
DP2409012300 SealSeal
-
DP2409012300 SealSeal
-
DP2409012100 Female TerminalFemale Terminal
-
DP2409012100 Female TerminalFemale Terminal
-
ECM515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
ECM515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
ECM515176224 Terminal SupportTerminal Support
-
ECM515176224 Terminal SupportTerminal Support
-
ECM515175812 PlugPlug
-
ECM515175812 PlugPlug
-
ECM515176221 Female HousingFemale Housing
-
ECM515176221 Female HousingFemale Housing
-
ECM515176222 Wire SealWire Seal
-
ECM515176222 Wire SealWire Seal
-
ECM710001131 Female TerminalFemale Terminal
-
ECM710001131 Female TerminalFemale Terminal
-
ECM515175806 Female TerminalFemale Terminal
-
ECM515175806 Female TerminalFemale Terminal
-
ECM414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
ECM414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
EI515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
EI515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
EI278000631 Male TerminalMale Terminal
-
EI278000631 Male TerminalMale Terminal
-
EL515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
EL515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
EL515175231 Female TerminalFemale Terminal
-
EL515175231 Female TerminalFemale Terminal
-
F1278001326 Fuse Holder CapFuse Holder Cap
-
F1278001326 Fuse Holder CapFuse Holder Cap
-
F1278000805 CushionCushion
-
F1278000805 CushionCushion
-
F1409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
F1409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
F1278001325 Fuse HolderFuse Holder
-
F1278001325 Fuse HolderFuse Holder
-
F1710000113 Female TerminalFemale Terminal
-
F1710000113 Female TerminalFemale Terminal
-
HL515177296 Female HousingFemale Housing
-
HL515177296 Female HousingFemale Housing
-
HL710001332 Seal WireSeal Wire
-
HL710001332 Seal WireSeal Wire
-
HL710001228 TerminalTerminal
-
HL710001228 TerminalTerminal
-
IGN409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
IGN409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
IGN409010100 Female TerminalFemale Terminal
-
IGN409010100 Female TerminalFemale Terminal
-
IU515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
IU515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
IU515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
IU515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
IU278000632 Female TerminalFemale Terminal
-
IU278000632 Female TerminalFemale Terminal
-
NV710000992 ClipClip
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
NV515176164 Male TerminalMale Terminal
-
PW1278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
PW1278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
PW1278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
PW1278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
PW1515175568 Male TerminalMale Terminal
-
PW1515175568 Male TerminalMale Terminal
-
PW2278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
PW2278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
PW2278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
PW2278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
PW2515175567 Female TerminalFemale Terminal
-
PW2515175567 Female TerminalFemale Terminal
-
R1409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
R1409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
R1515177041 RelayRelay
-
R1515177041 RelayRelay
-
R1561503100 Female TerminalFemale Terminal
-
R1561503100 Female TerminalFemale Terminal
-
R1561503100 Female TerminalFemale Terminal
-
R1561503100 Female TerminalFemale Terminal
-
R1293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
R1293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
RE515176530 ConnectorConnector
-
RE515176530 ConnectorConnector
-
RE515176594 SealSeal
-
RE515176594 SealSeal
-
RE515176531 TerminalTerminal
-
RE515176531 TerminalTerminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SA515175231 Female TerminalFemale Terminal
-
SH1710001929 Housing, PackardHousing, Packard
-
SH1710001929 Housing, PackardHousing, Packard
-
SH1710001225 CapCap
-
SH1710001225 CapCap
-
SH1710001332 Seal WireSeal Wire
-
SH1710001332 Seal WireSeal Wire
-
SH1710001233 SealSeal
-
SH1710001233 SealSeal
-
SH1710001224 TerminalTerminal
-
SH1710001224 TerminalTerminal
-
SH1710001223 TerminalTerminal
-
SH1710001223 TerminalTerminal
-
TP515176176 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
TP515176176 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
TP710000402 Wire SealWire Seal
-
TP710000402 Wire SealWire Seal
-
TP710000335 Female TerminalFemale Terminal
-
TP710000335 Female TerminalFemale Terminal
-
TS515177298 Housing ConnectorHousing Connector
-
TS515177298 Housing ConnectorHousing Connector
-
TS710001233 SealSeal
-
TS710001233 SealSeal
-
TS710001224 TerminalTerminal
-
TS710001224 TerminalTerminal
-
WMS710001927 HousingHousing
-
WMS710001927 HousingHousing
-
WMS710001225 CapCap
-
WMS710001225 CapCap
-
WMS710001233 SealSeal
-
WMS710001233 SealSeal
-
WMS710001224 TerminalTerminal
-
WMS710001224 TerminalTerminal
