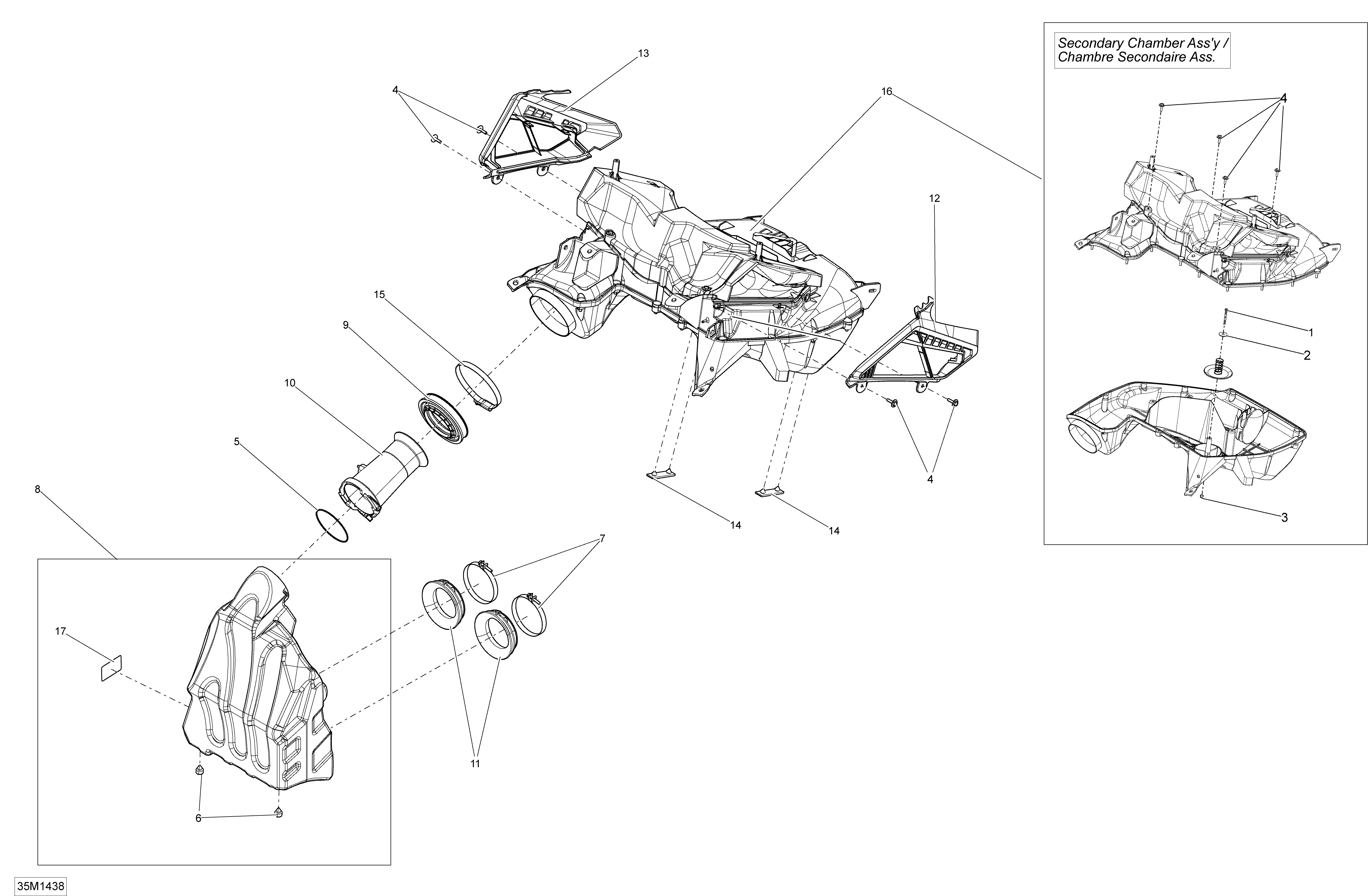

02- Air Intake System _35M1438 для BRP Ski-Doo MXZ X 600RS XS RS - 2014
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
4250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
5293300115 O-RingO-Ring
-
6293830005 Rubber BumperRubber Bumper
-
7508000346 Gemi ClampGemi Clamp
-
8508000535 Primary Chamber Ass'yPrimary Chamber Ass'y
-
9508000567 BootBoot
-
10508000662 FluteFlute
-
11508000721 Intake AdapterIntake Adapter
-
12508000730 RH Air FilterRH Air Filter
-
13508000731 LH Air FilterLH Air Filter
-
14508000744 StopperStopper
-
15514052924 Norma ClampNorma Clamp
-
16508000722 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
17516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
