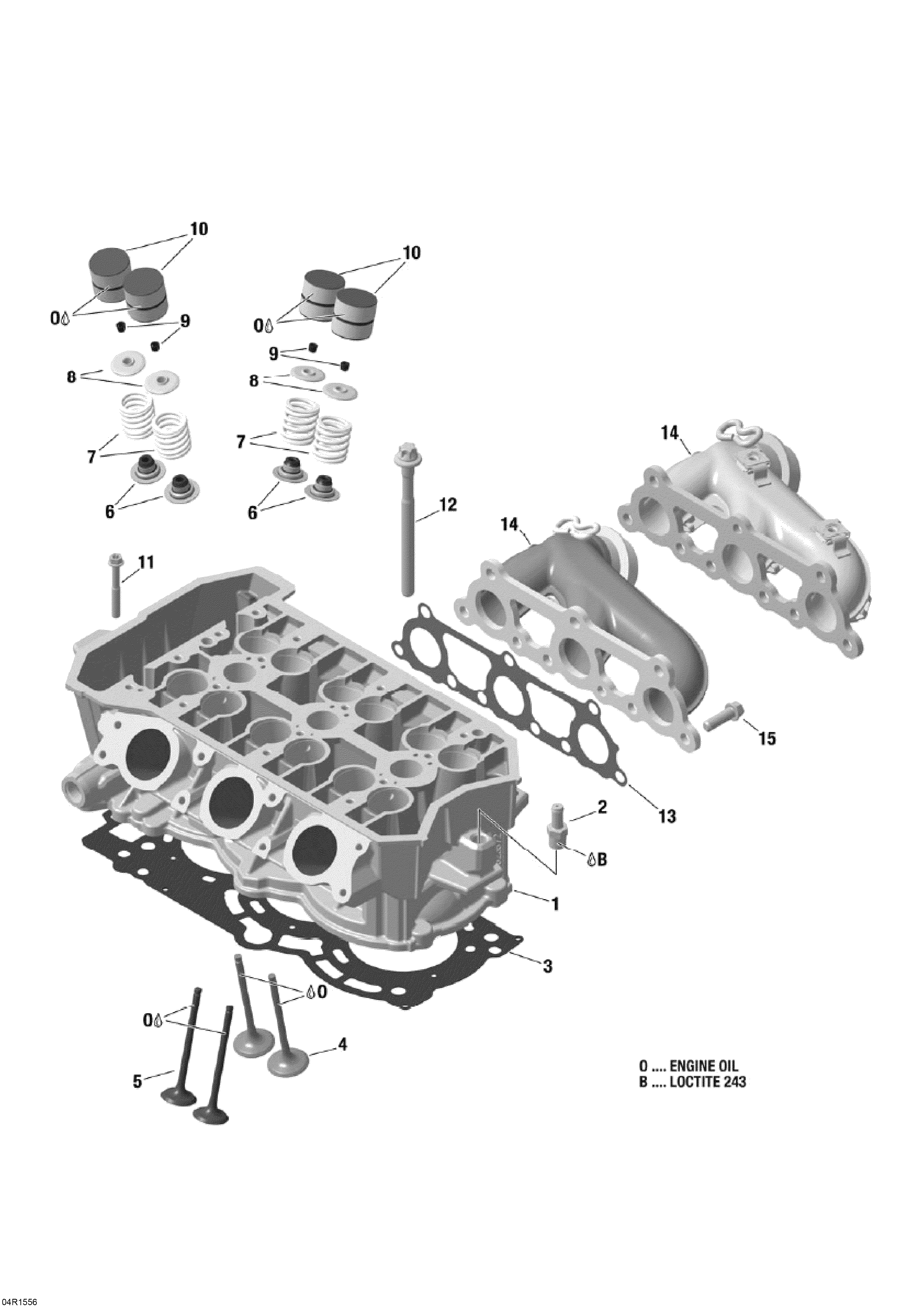

01- Cylinder _04R1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1420623877 Cylinder HeadCylinder Head
-
2420441420 Hose NippleHose Nipple
-
3420431811 Cylinder Head Gasket. Included In Gasket KitCylinder Head Gasket. Included In Gasket Kit
-
4420855130 Intake Valve, 29 mmIntake Valve, 29 mm
-
5420855140 Exhaust Valve, 25 mmExhaust Valve, 25 mm
-
6420431671 Valve Stem Seal. Included In Gasket KitValve Stem Seal. Included In Gasket Kit
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Cotter ValveCotter Valve
-
10420855164 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
11420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
12420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
13420431850 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
14420673495 Exhaust ManifoldExhaust Manifold
-
15420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
