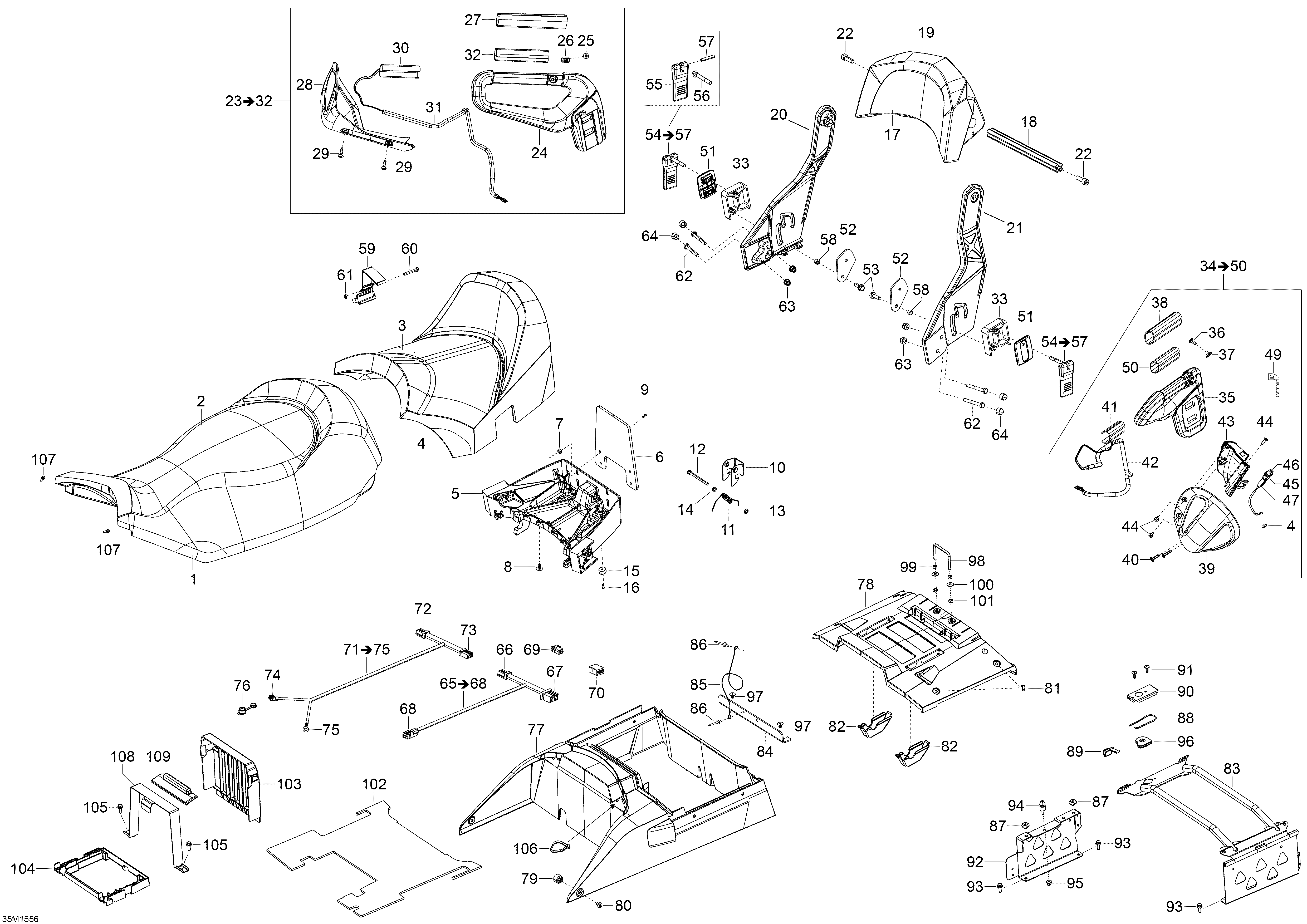

09- Seat _35M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1510005807 Front Seat FoamFront Seat Foam
-
2510005724 Cover, frontCover, front
-
3510005256 Cover rearCover rear
-
4510005811 Rear Seat FoamRear Seat Foam
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8414644300 DartDart
-
9293150210 RivetRivet
-
10708000144 Latch, BlackLatch, Black
-
11708000369 SpringSpring
-
12207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
13732610072 Push NutPush Nut
-
14234061410 Flat Washer 6 mmFlat Washer 6 mm
-
15510006005 Stopper RubberStopper Rubber
-
16293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
17510005833 Foam backrestFoam backrest
-
18605355357 Backrest AxleBackrest Axle
-
19510005259 Backrest Cover XU GRANDBackrest Cover XU GRAND
-
20510005420 R.H. ArmR.H. Arm
-
21510005419 L.H. ArmL.H. Arm
-
22250000553 Forming Screw M10 x 25Forming Screw M10 x 25
-
24510005865 RH HandleRH Handle
-
25250000721 Torx ScrewTorx Screw
-
26293100003 Nut M6Nut M6
-
27510004449 Handle GripHandle Grip
-
28510004415 RH DeflectorRH Deflector
-
29250000199 Screw 25mmScrew 25mm
-
30515176393 HeaterHeater
-
31515175506 TubingTubing
-
32510004709 Handle ReinforforcementHandle Reinforforcement
-
33510004939 AdapterAdapter
-
35510005862 LH HandleLH Handle
-
36250000721 Torx ScrewTorx Screw
-
37293100003 Nut M6Nut M6
-
38510004449 Handle GripHandle Grip
-
39510004416 LH DeflectorLH Deflector
-
40250000199 Screw 25mmScrew 25mm
-
41515176393 HeaterHeater
-
42515175506 TubingTubing
-
43510004566 Switch HousingSwitch Housing
-
44250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
45510004413 Rocker SwitchRocker Switch
-
46510004414 Switch ProtectorSwitch Protector
-
47515176241 LH Handle HarnessLH Handle Harness
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49516002835 Handle Heater DecalHandle Heater Decal
-
50510004709 Handle ReinforforcementHandle Reinforforcement
-
51510004405 MouldingMoulding
-
52510004990 Counter PlateCounter Plate
-
53250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
54510004992 Lock Ass'y. Includes 54 To 57Lock Ass'y. Includes 54 To 57
-
555243419 LockLock
-
56510004993 ScrewScrew
-
57414821400 PinPin
-
58510005507 SleeveSleeve
-
59510005139 Security LockSecurity Lock
-
60205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
61232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
62207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
63233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6428056 CoverCover
-
65515177209 Seat Harness 2012. Includes 65 To 68Seat Harness 2012. Includes 65 To 68
-
66515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
66515175231 Female TerminalFemale Terminal
-
67515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
67515175231 Female TerminalFemale Terminal
-
69515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
70515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
71515177210 Seat Harness. Includes 71 To 75Seat Harness. Includes 71 To 75
-
72515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
72515175231 Female TerminalFemale Terminal
-
73515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
73515175232 Male TerminalMale Terminal
-
75515175172 Open BarrelOpen Barrel
-
76572103300 CapCap
-
77510004874 Storage Box XUStorage Box XU
-
78510005604 Cover Storage Box XU 12Cover Storage Box XU 12
-
79510005147 BushingBushing
-
80250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
81293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
82510004999 CoverCover
-
83510005714 Lock tubeLock tube
-
84510005156 Cable Support PlateCable Support Plate
-
85293750070 Seat Retainer CableSeat Retainer Cable
-
86390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
87605452114 PlugPlug
-
88269700017 Latch SpringLatch Spring
-
89510005072 PullerPuller
-
90510005698 Lock Pin CoverLock Pin Cover
-
91250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
92510005845 Locking PlateLocking Plate
-
93207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
94605452035 Lock PinLock Pin
-
95233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
96510005044 Lock Pin GuideLock Pin Guide
-
97293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
98510004876 Fastener PinFastener Pin
-
99250000135 Hex. Nut M6Hex. Nut M6
-
10020117 WasherWasher
-
101232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
102510005043 FoamFoam
-
103510005079 Battery CoverBattery Cover
-
104515176804 Battery SupportBattery Support
-
105207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
106605627000 Tie-RapTie-Rap
-
107250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
108510005143 Battery StrapBattery Strap
-
109510005146 Strap CoverStrap Cover
