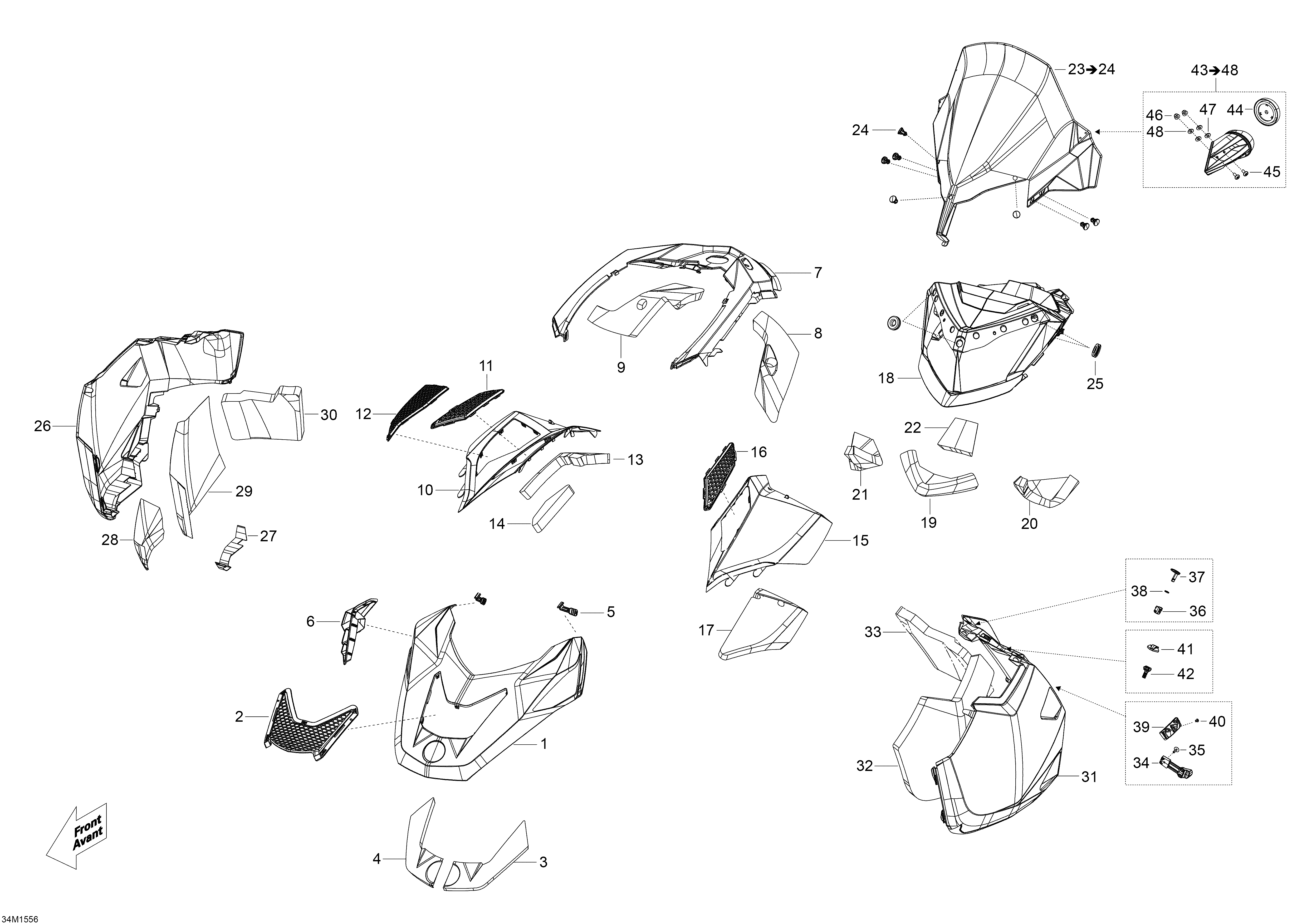

09- Hood _34M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1517304812 Black HoodBlack Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304155 Scoop GrillScoop Grill
-
7517305611 ConsoleConsole
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304829 Black Side Access Panel RHBlack Side Access Panel RH
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517304839 Black Side Access Panel LHBlack Side Access Panel LH
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517304272 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield Ass'y. Includes 23 To 24Windshield Ass'y. Includes 23 To 24
-
24517304744 ButtonButton
-
25517303756 GrommetGrommet
-
26517304866 Black RH Side PannelBlack RH Side Pannel
-
27517304215 Aluminium FoilAluminium Foil
-
28517304216 Aluminium FoilAluminium Foil
-
29517304512 Aluminium FoilAluminium Foil
-
30517304310 RH Rear FoamRH Rear Foam
-
31517304869 Black LH Side PannelBlack LH Side Pannel
-
32517303891 LH FoamLH Foam
-
33517304309 LH Rear FoamLH Rear Foam
-
34517304572 Latch-PanelLatch-Panel
-
35293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
36517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
37517304296 Quarter-Turn HandleQuarter-Turn Handle
-
38517304538 Locking PlateLocking Plate
-
39517304497 Side Panel SupportSide Panel Support
-
40293150211 RivetRivet
-
41860200239 Black Latch KitBlack Latch Kit
-
42517304573 Latch-PanelLatch-Panel
-
43517305787 RH/LH Mirror Ass'y. Includes 43 To 48RH/LH Mirror Ass'y. Includes 43 To 48
-
44517304629 MirrorMirror
-
45250000721 Torx ScrewTorx Screw
-
46232361493 Domed Nut M6Domed Nut M6
-
47250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
4820117 WasherWasher
