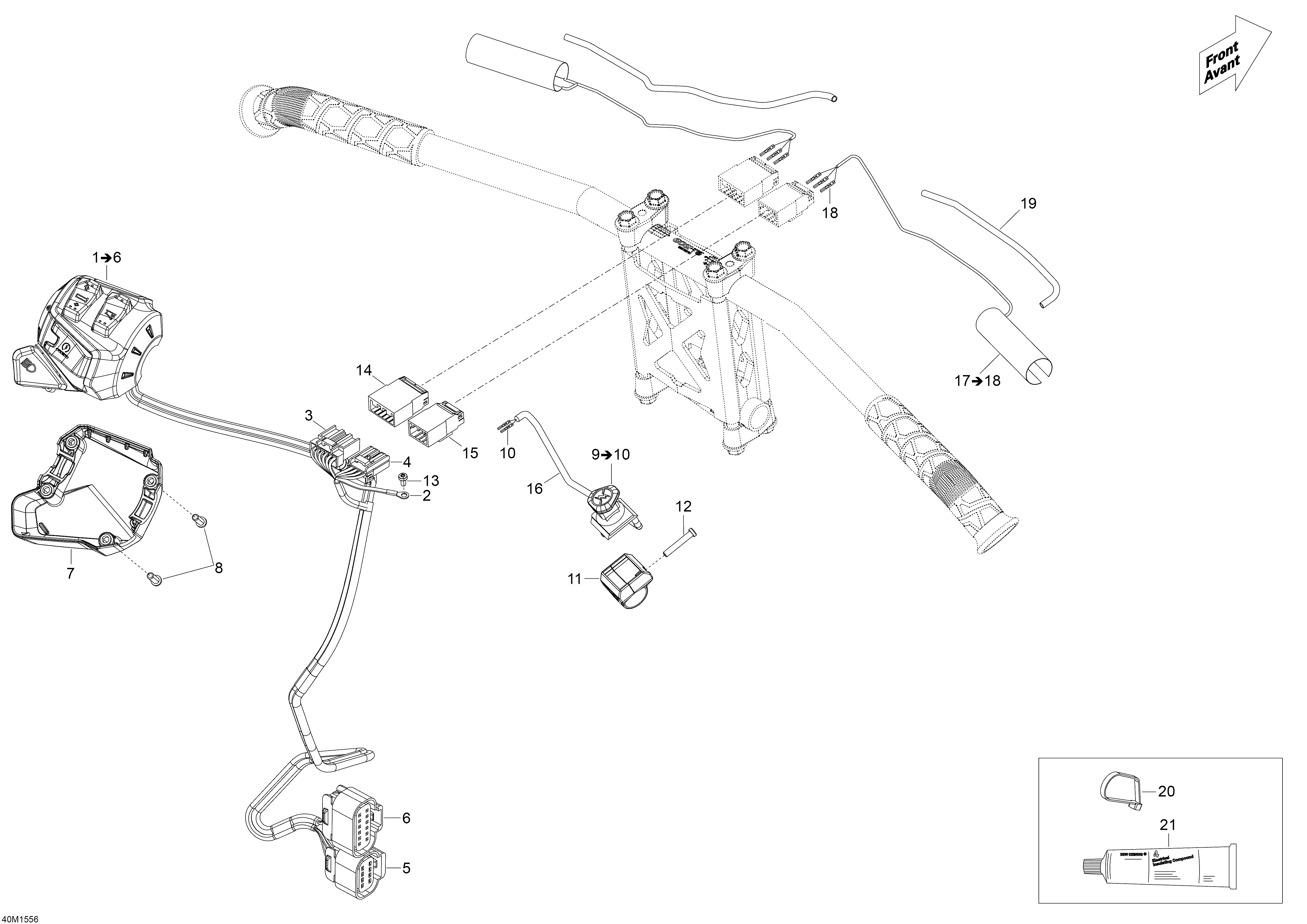

10- Steering Wiring Harness _40M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1515177677 Housing. Includes 1 To 6Housing. Includes 1 To 6
-
2515175504 Ring TerminalRing Terminal
-
3515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
3515175231 Female TerminalFemale Terminal
-
4515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
4515175231 Female TerminalFemale Terminal
-
5710001928 HousingHousing
-
6710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
7515177147 Housing PlateHousing Plate
-
8250000671 Torx ScrewTorx Screw
-
9515177362 Kill Switch. Includes 9 To 10Kill Switch. Includes 9 To 10
-
10515175232 Male TerminalMale Terminal
-
11515176825 Kill Switch SupportKill Switch Support
-
12250000263 Torx Screw #8-18Torx Screw #8-18
-
13250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
14515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
15515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
16515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
17506152428 Heated Film, 25W. Includes 17 To 18Heated Film, 25W. Includes 17 To 18
-
18515175232 Male TerminalMale Terminal
-
19515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
